CPU
Supports Socket FM2 + 95W / FM2 100W processors
– 4 + 2 Power Phase design

Chipset
– AMD A88X (Bolton-D4)

Memory
– Dual-Channel DDR3 Memory Technology
– 4 x DDR3 DIMM Slots
Supports DDR3 2600+ (OC) / 2400 (OC) / 2133/1866/1600/1333/1066 non-ECC, un-buffered memory
– Max. capacity of system memory: 64GB **
Supports Intel® Extreme Memory Profile (XMP) 1.3 / 1.2
Supports AMD Memory Profile Technology (AMP) up to AMP 2400

* DDR3 2600+ is only supported with two DIMMs.

** Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.

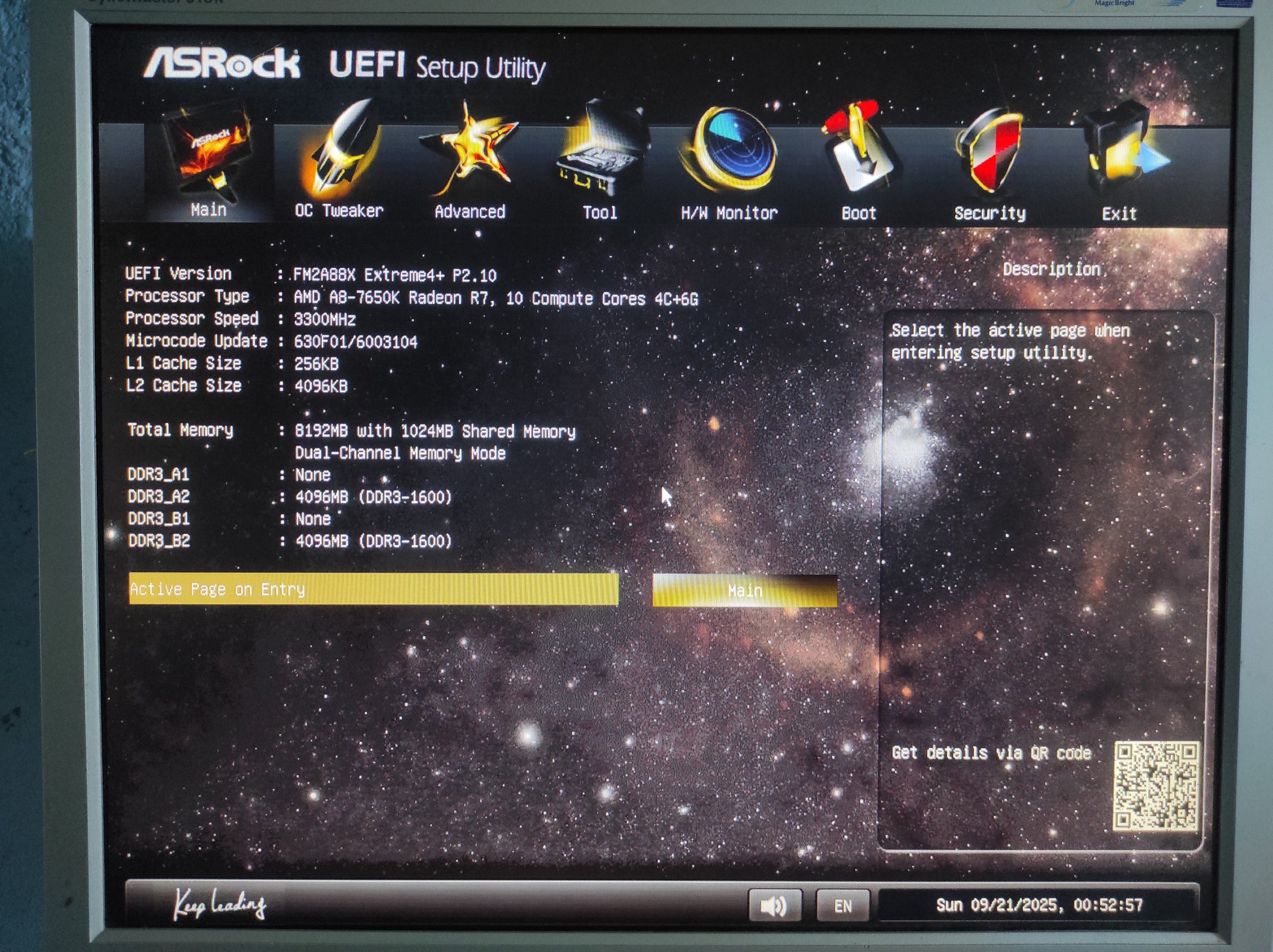

BIOS
– 64Mb AMI UEFI Legal BIOS with GUI support
– Supports “Plug and Play”
– ACPI 1.1 Compliant wake-up events
– Supports jumperfree
– SMBIOS 2.3.1 support
– DRAM, VDDP, VDDR Voltage multi-adjustment

Graphics
– Integrated AMD Radeon ™ R7 / R5 Series Graphics in A-series APU
– DirectX 11.1, Pixel Shader 5.0 with FM2 + CPU. DirectX 11, Pixel Shader 5.0 with FM2 CPU.
– Max. shared memory 2GB
– Three graphics output options: D-Sub, DVI-D, and HDMI
– Supports Triple Monitor
Supports HDMI with max. Resolution up to 4K x 2K (4096×2160) @ 24Hz
Supports Dual-link DVI-D with max. Resolution up to 2560×1600 @ 60Hz
Supports D-Sub with max. Resolution up to 1920×1200 @ 60Hz
Supports Auto Lip Sync, Deep Color (12bpc), xvYCC, and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required)
Supports Blu-ray Stereoscopic 3D with HDMI Port
Supports AMD Steady Video ™ 2.0: New video post-processing capability for automatic jitter reduction on home / online video
Supports HDCP with DVI-D, and HDMI Ports
Supports Full HD 1080p Blu-ray (BD) playback with DVI-D and HDMI Ports

* Only FM2 + APU can support up to 4096×2160 resolution display VIA® HDMI port.

Audio
– 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec)
– Premium Blu-ray Audio support
– TI® NE5532 Premium Headset Amplifier (Supports up to 600-ohm headsets)

LAN
– PCIe x1 Gigabit LAN 10/100/1000 Mb / s
– Qualcomm® Atheros® AR8171
– Supports Qualcomm® Atheros® Security Wake On Internet Technology
– Supports Wake-On-LAN
Supports Energy Efficient Ethernet 802.3az
Supports PXE

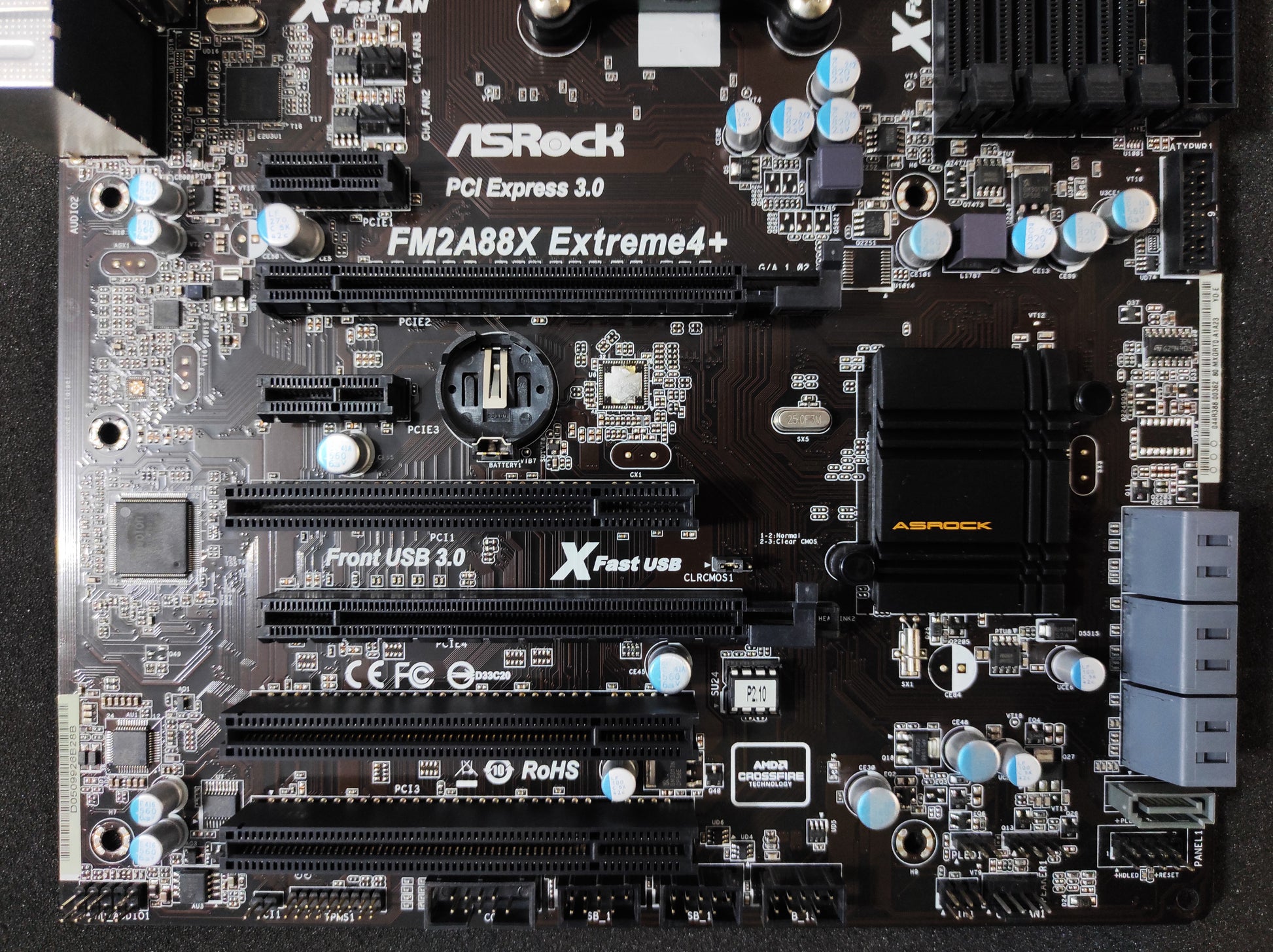

Slots
– 1 x PCI Express 3.0 x16 Slot (PCIE2 @ x16 mode)
– 1 x PCI Express 2.0 x16 Slot (PCIE4 @ x4 mode)
– 2 x PCI Express 2.0 x1 Slots
– 3 x PCI Slots
– Supports AMD Quad CrossFireX ™, CrossFireX ™ and Dual Graphics

* PCIE 3.0 is only supported with FM2 + CPU. With FM2 CPU, it only supports PCIE 2.0.

Storage
– 7 x SATA3 6.0 Gb / s Connectors, support RAID (RAID 0, RAID 1, RAID 5 and RAID 10), NCQ, AHCI and Hot Plug

Connector
– 1 x IR Header
– 1 x COM Port Header
– 1 x Chassis Intrusion Header
– 1 x TPM Header
– 1 x Power LED Header
– 2 x CPU Fan Connectors (1 x 4-pin, 1 x 3-pin)
3 x Chassis Fan Connectors (1 x 4-pin, 2 x 3-pin)
– 1 x Power Fan Connector (3-pin)
– 1 x 24 pin ATX Power Connector
– 1 x 8 pin 12V Power Connector
– 1 x Front Panel Audio Connector
– 3 x USB 2.0 Headers (Support 6 USB 2.0 ports)
– 1 x USB 3.1 Gen1 Header by AMD A88X (Bolton-D4) (Supports 2 USB 3.1 Gen1 ports)

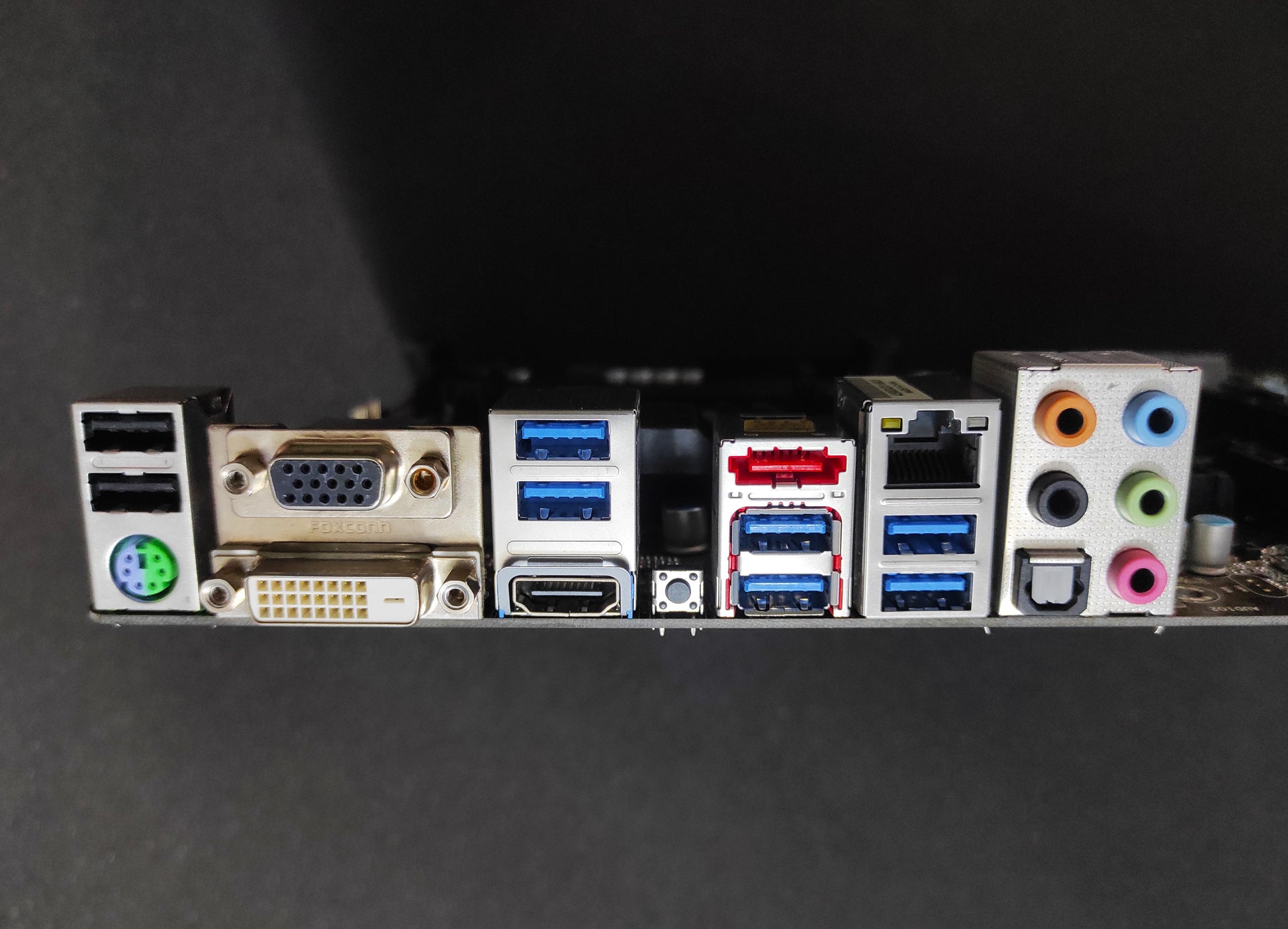

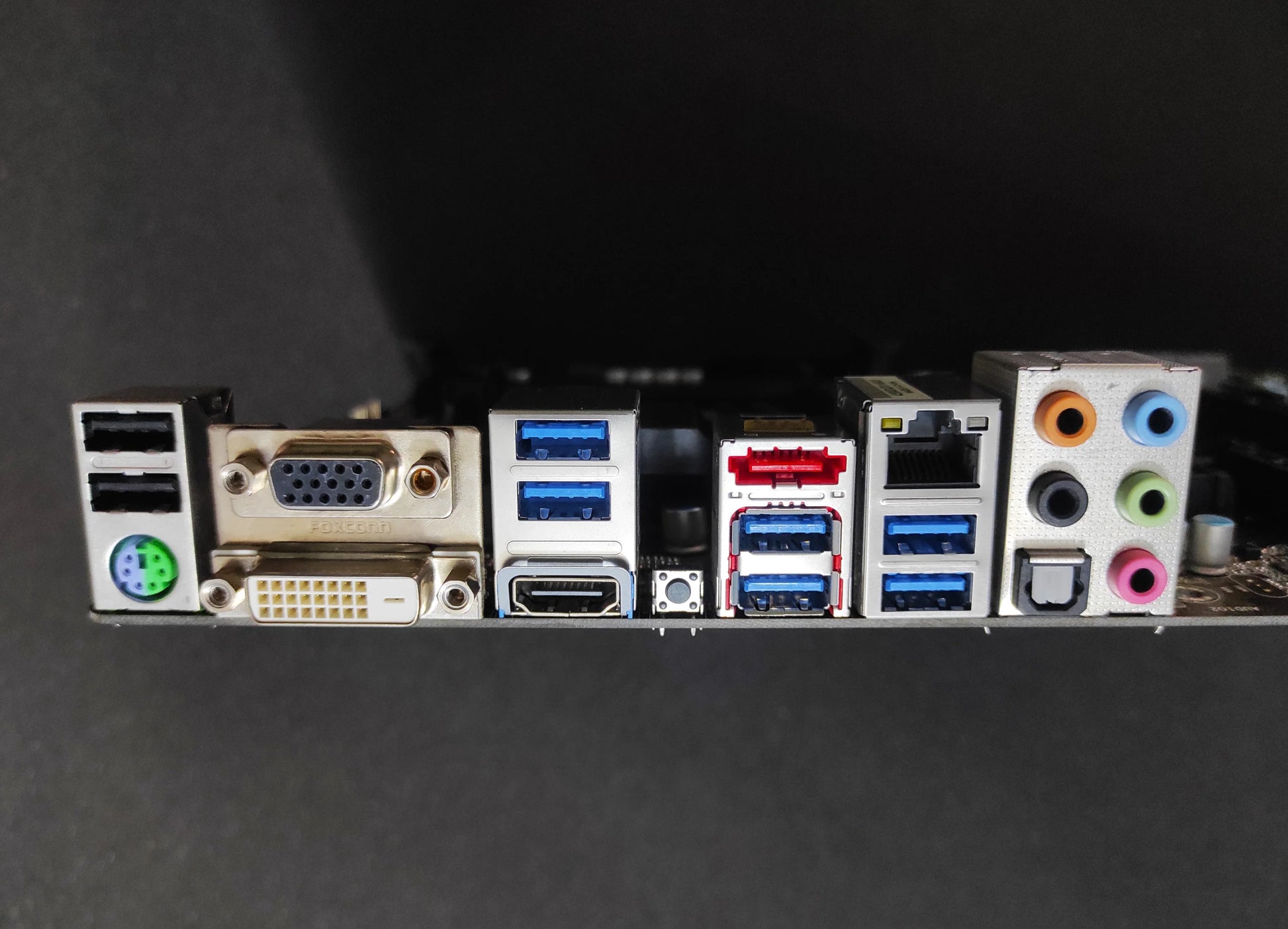

Rear Panel I / O
– 1 x PS / 2 Mouse / Keyboard Port
– 1 x D-Sub Port
– 1 x DVI-D Port
– 1 x HDMI Port
– 1 x Optical SPDIF Out Port
– 2 x USB 2.0 Ports
– 1 x eSATA Connector
– 2 x USB 3.1 Gen1 Ports (AMD A88X (Bolton-D4))
– 4 x USB 3.1 Gen1 Ports (Etron EJ188)
– 1 x RJ-45 LAN Port with LED (ACT / LINK LED and SPEED LED)
– 1 x Clear CMOS Switch with LED
HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone

Unique Feature
– ASRock A-Tuning
– ASRock APP Shop
– ASRock Instant Boot
– ASRock Instant Flash
– ASRock APP Charger
– ASRock XFast USB
– ASRock XFast LAN
– ASRock XFast RAM
– ASRock Crashless BIOS
– ASRock OMG (Online Management Guard)
– ASRock Internet Flash
– ASRock UEFI System Browser
– ASRock UEFI Tech Service
– ASRock On / Off Play Technology
– ASRock Dehumidifier Function
– ASRock Easy RAID Installer
– ASRock Easy Driver Installer
– ASRock Interactive UEFI
– ASRock Fast Boot
– ASRock X-Boost
– ASRock Restart to UEFI
– ASRock USB Key
– ASRock FAN-Tastic Tuning
– Hybrid Booster:
– ASRock U-COP

Accessories

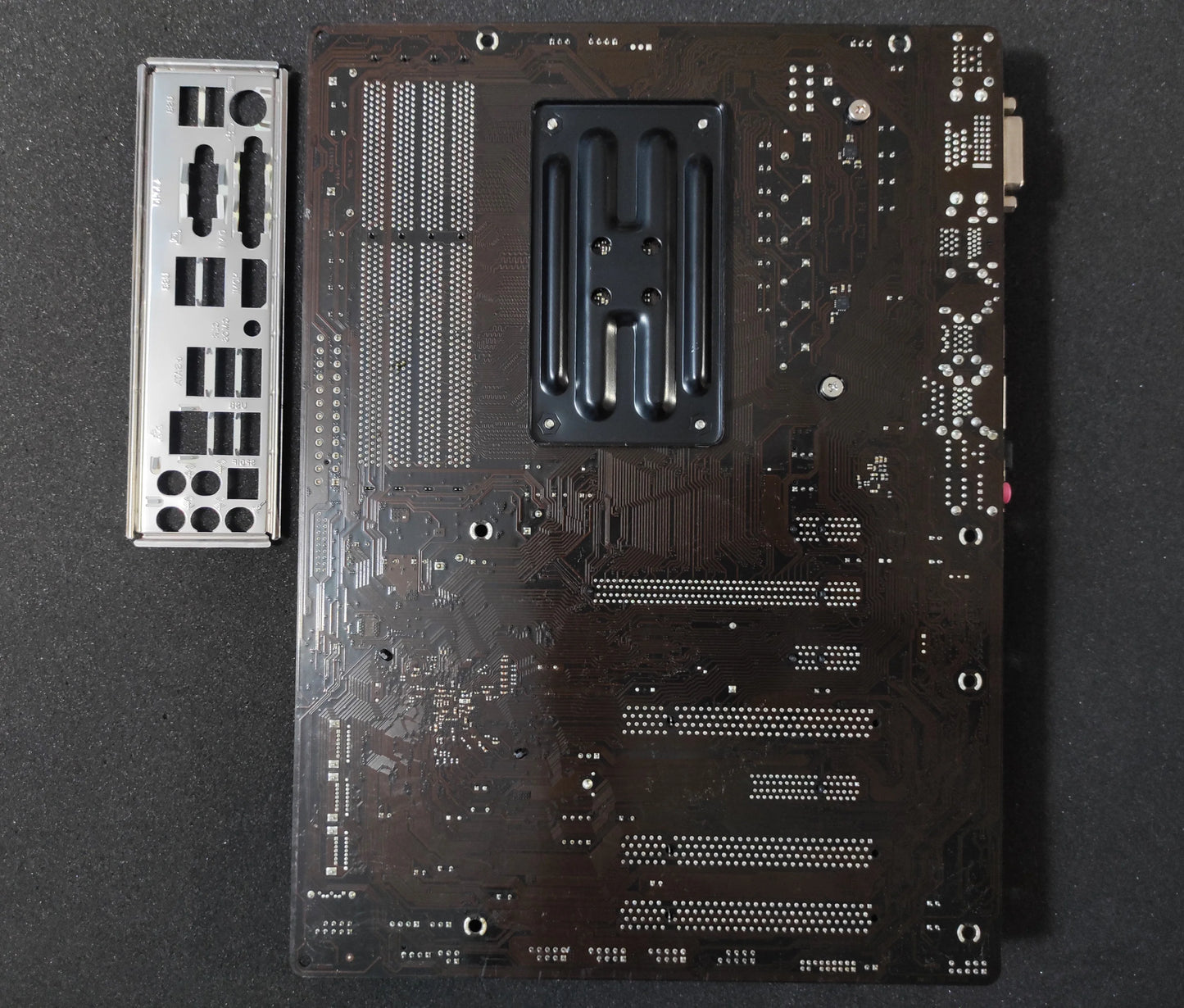

– I / O Shield

Hardware Monitor
CPU temperature sensing
Chassis temperature sensing
– CPU Fan Tachometer
– Chassis Fan Tachometer
– CPU, Chassis Quiet Fan
– CPU, Chassis Fan multi-speed control
– CASE OPEN detection
Voltage monitoring: + 12V, + 5V, + 3.3V, Vcore

Form Factor
– ATX Form Factor
– ASRock DuraCap (2.5 x longer life time) (100% Japan-made high-quality conductive polymer capacitors)

OS
Microsoft® Windows® 10 64-bit / 8.1 32-bit / 8.1 64-bit / 8 32-bit / 8 64-bit / 7 32-bit / 7 64-bit

* Carrizo FM2r2 processor supports Windows® 10 64-bit / 8.1 64-bit / 7 32-bit / 7 64-bit only.

Certifications
– FCC, CE
– ErP / EuP ready (ErP / EuP ready power supply is required)
