Gigabyte GA-H61MA-D3V Socket 1155 mATX Motherboard DDR3 PCIe 3.0 x16 Intel H61 Express Chipset

Gigabyte GA-H61MA-D3V Socket 1155 mATX Motherboard DDR3 PCIe 3.0 x16 Intel H61 Express Chipset

€29,50 EUR
€29,50 EUR
Sale Sold out
Taxes included. Shipping calculated at checkout.

Gigabyte GA-H61MA-D3V

Socket 1155 mATX Motherboard

DDR3 PCIe 3.0 x16

Intel H61 Express Chipset

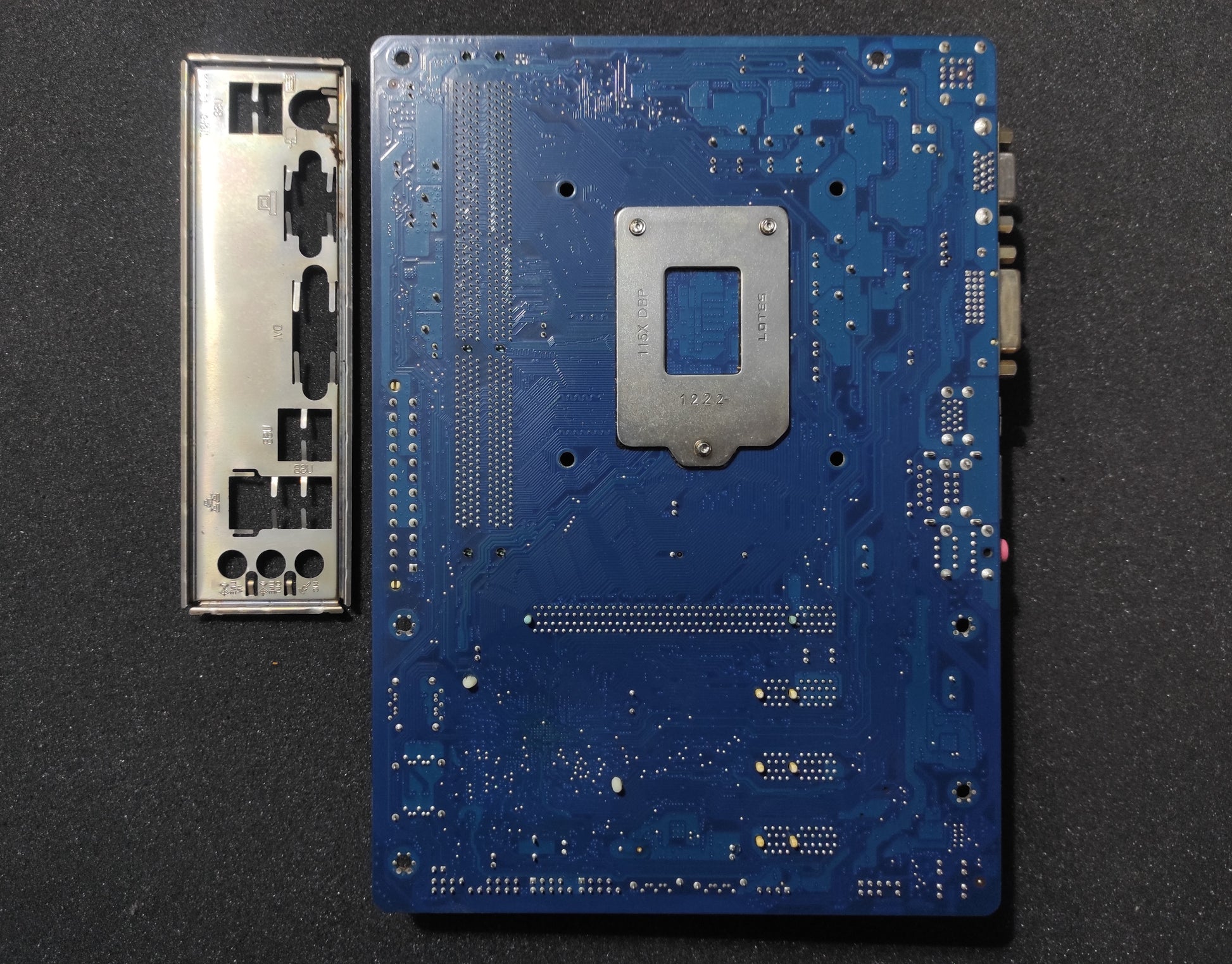

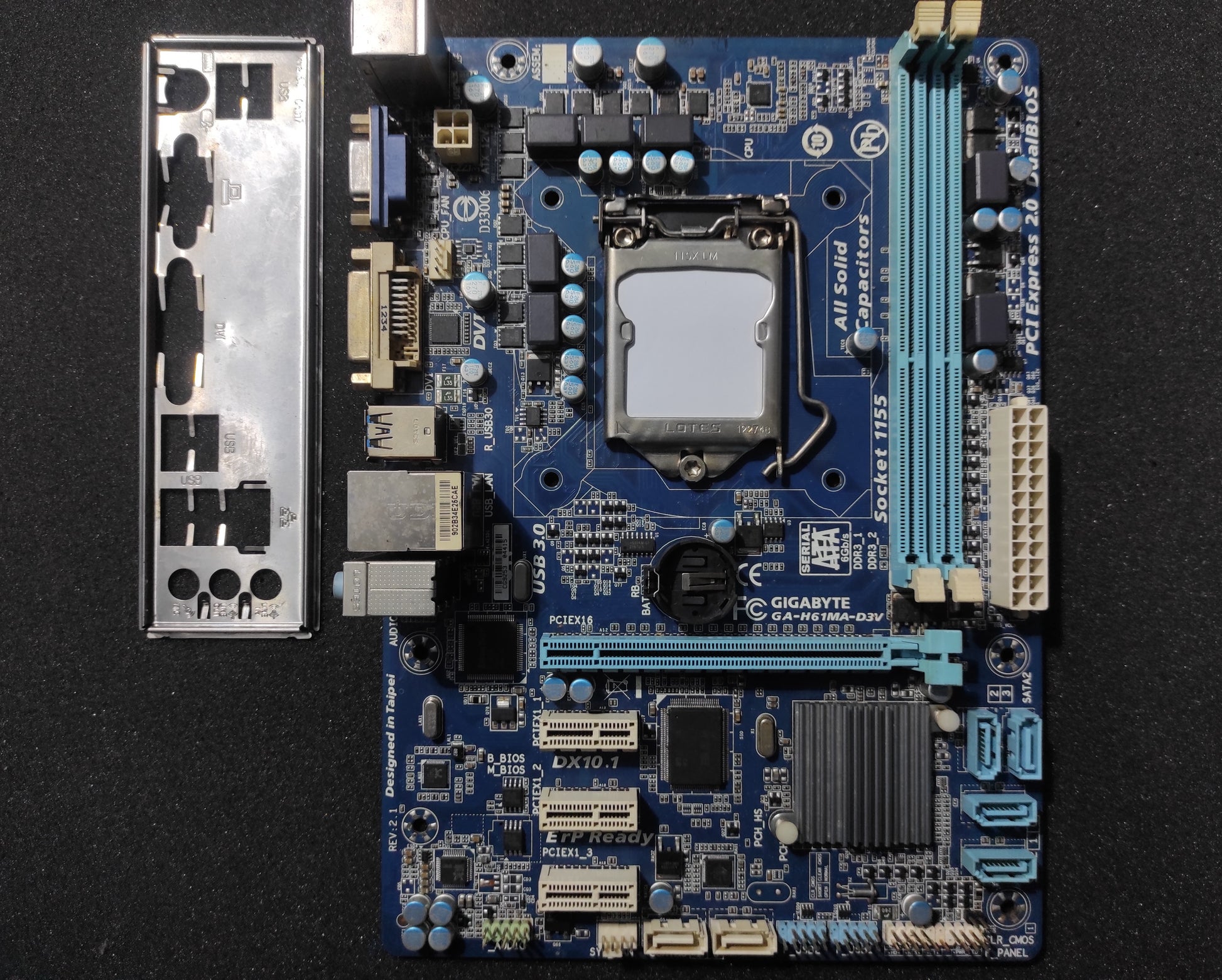

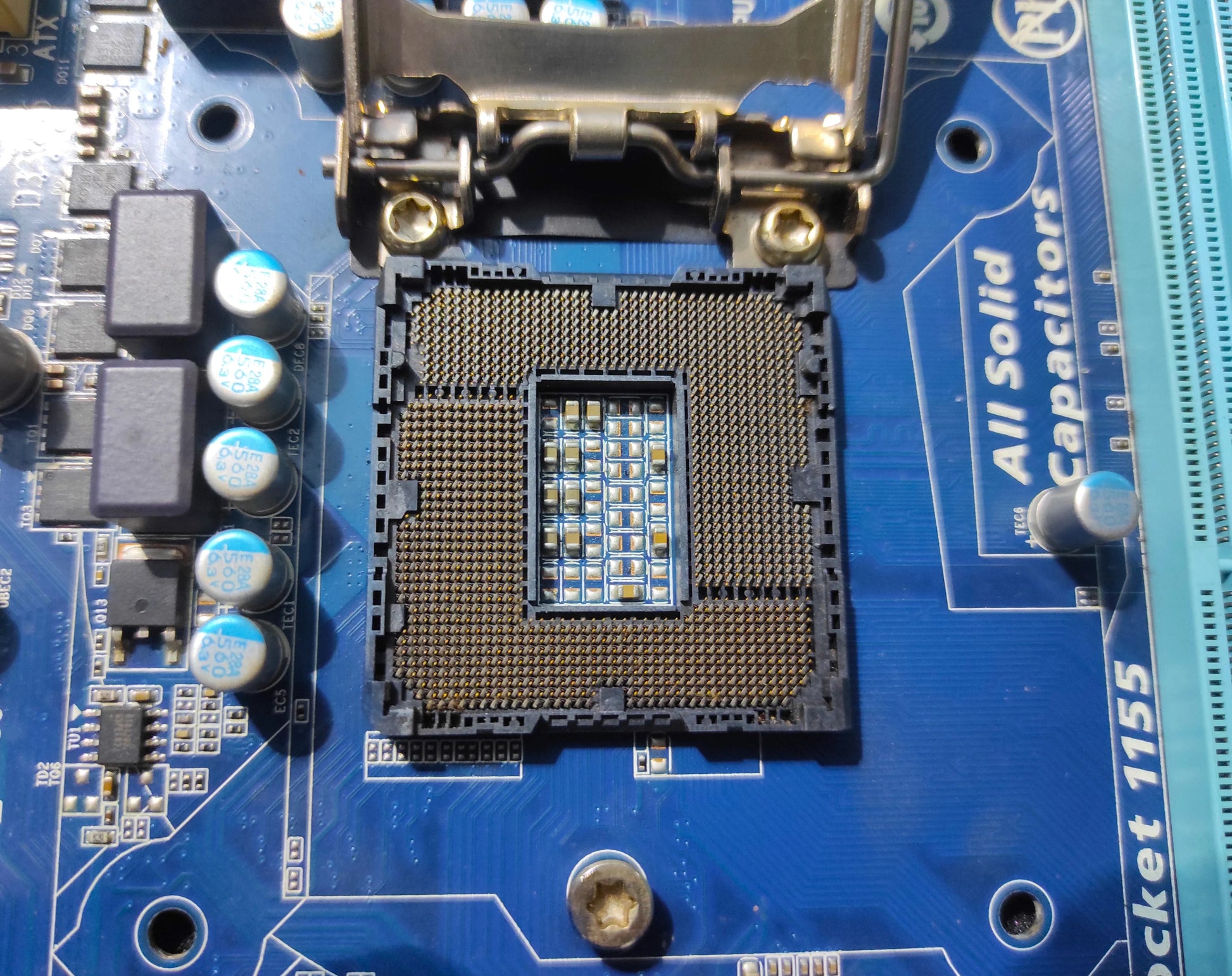

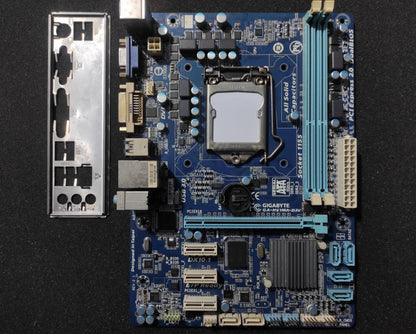

Used motherboard, tested working. In very good condition! No bent pins. Check out the pics! I/O Shield included!

  • CPU
    1. Support for Intel®Core™ i7 processors/Intel®Core™ i5 processors/ Intel®Core™ i3 processors/Intel®Pentium®processors/Intel®Celeron®processors in the LGA1155 package
    2. L3 cache varies with CPU
    (Some Intel®Core™ processors require a graphic card, please refer "CPU support List" for more information.)

  • Chipset
    1. Intel®H61 Express Chipset

  • Memory
    1. 2 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory
      * Due to Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than 4 GB.
    2. Dual channel memory architecture
    3. Support for DDR3 2200(OC)/1333/1066/800 MHz memory modules
    4. Support for non-ECC memory modules
    5. Support for Extreme Memory Profile (XMP) memory modules
      * To support XMP memory, you must install an Intel 22nm (Ivy Bridge) CPU.
    (Please refer "Memory Support List" for more information.)


  • Onboard Graphics
    Integrated Graphics Processor:
    1. 1 x D-Sub port
    2. 1 x DVI-D port, supporting a maximum resolution of 1920x1200
      * The DVI-D port does not support D-Sub connection by adapter.


  • Audio
    1. Realtek ALC887 audio codec
    2. High Definition Audio
    3. 2/4/5.1/7.1-channel
      * To enable 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.


  • LAN
    1. 1 x Realtek 8111E/8111F chip (10/100/1000 Mbit)


  • Expansion Slots
    1. 1 x PCI Express x16 slot, running at x16
      (The PCI Express x16 slot conforms to PCI Express 3.0 standard.)
      * PCIE Gen.3 is dependent on CPU and expansion card compatibility.
    2. 3 x PCI Express x1 slots
      (The PCI Express x1 slots conform to PCI Express 2.0 standard.)


  • Storage Interface
    Chipset:
    1. 4 x SATA 3Gb/s connectors (SATA2 0/1/2/3) supporting up to 4 SATA 3Gb/s devices
    Marvell 88SE9172 chip:
    1. 2 x SATA 6Gb/s connectors (GSATA3 0/1) supporting up to 2 SATA 6Gb/s devices
    2. Support for RAID 0 and RAID 1


  • USB
    Chipset:
    1. Up to 8 USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
    Etron EJ168 chip:
    1. Up to 2 USB 3.0/2.0 ports on the back panel


  • Internal I/O Connectors
    1. 1 x 24-pin ATX main power connector
    2. 1 x 4-pin ATX 12V power connector
    3. 4 x SATA 3Gb/s connectors
    4. 2 x SATA 6Gb/s connectors
    5. 1 x CPU fan header
    6. 1 x system fan header
    7. 1 x front panel header
    8. 1 x front panel audio header
    9. 2 x USB 2.0/1.1 headers
    10. 1 x Clear CMOS jumper

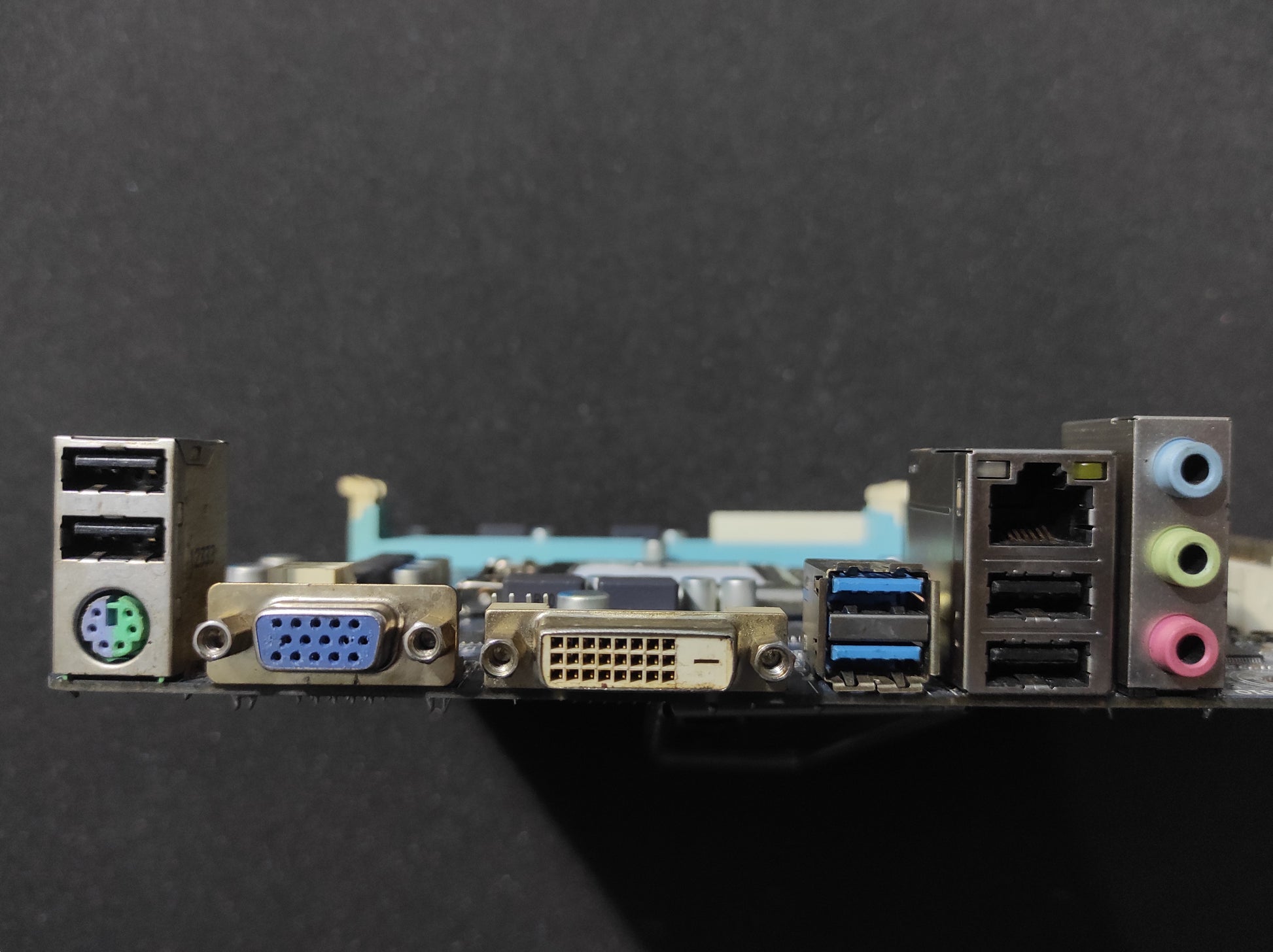

  • Back Panel Connectors
    1. 1 x PS/2 keyboard/mouse port
    2. 1 x D-Sub port
    3. 1 x DVI-D port
    4. 4 x USB 2.0/1.1 ports
    5. 2 x USB 3.0/2.0 ports
    6. 1 x RJ-45 port
    7. 3 x audio jacks (Line In/Line Out/Microphone)


  • I/O Controller
    1. iTE I/O controller chip


  • H/W Monitoring
    1. System voltage detection
    2. CPU/System temperature detection
    3. CPU/System fan speed detection
    4. CPU overheating warning
    5. CPU/System fan fail warning
    6. CPU/System fan speed control
      * Whether the CPU/system fan speed control function is supported will depend on the CPU/system cooler you install.

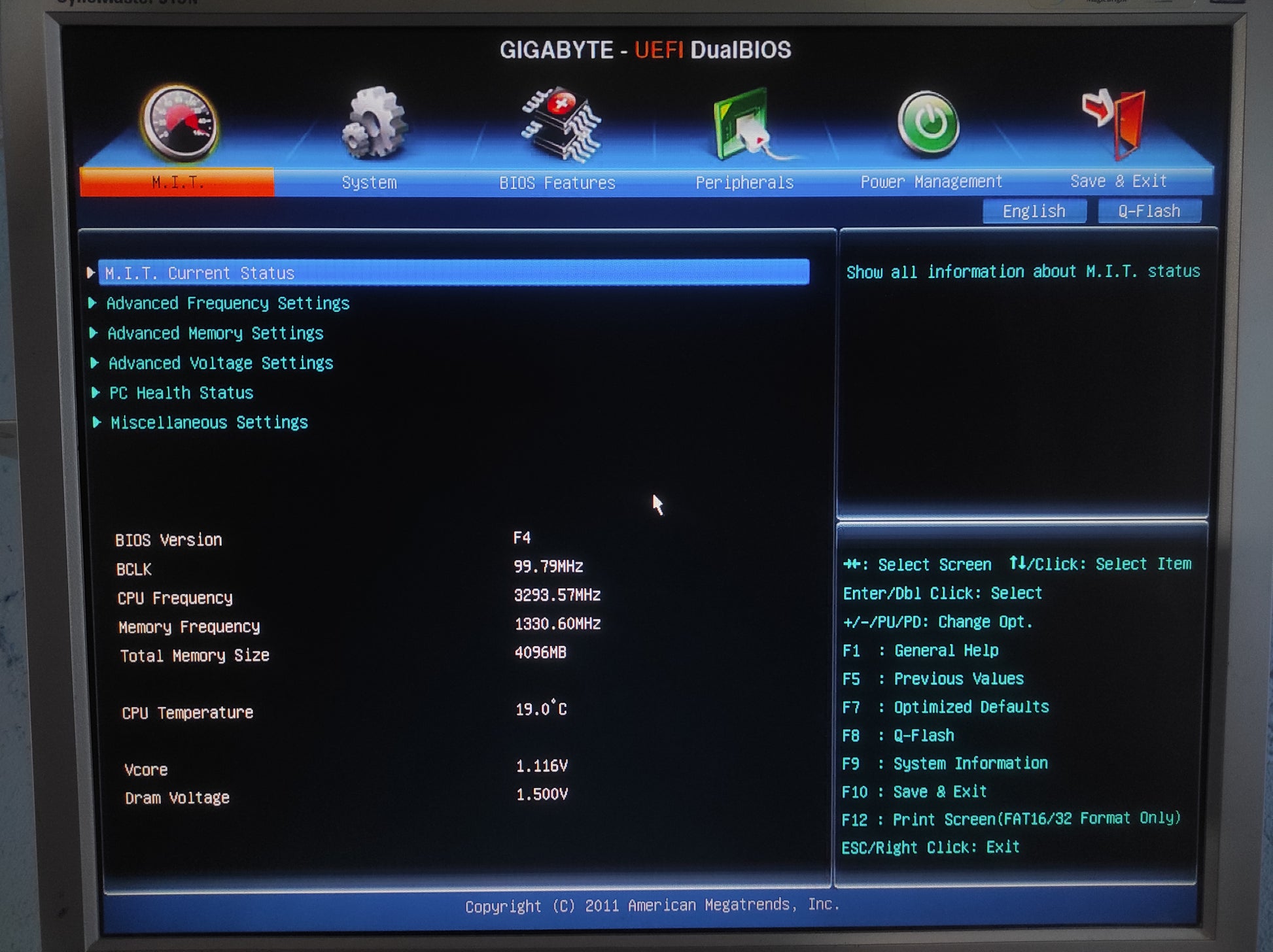

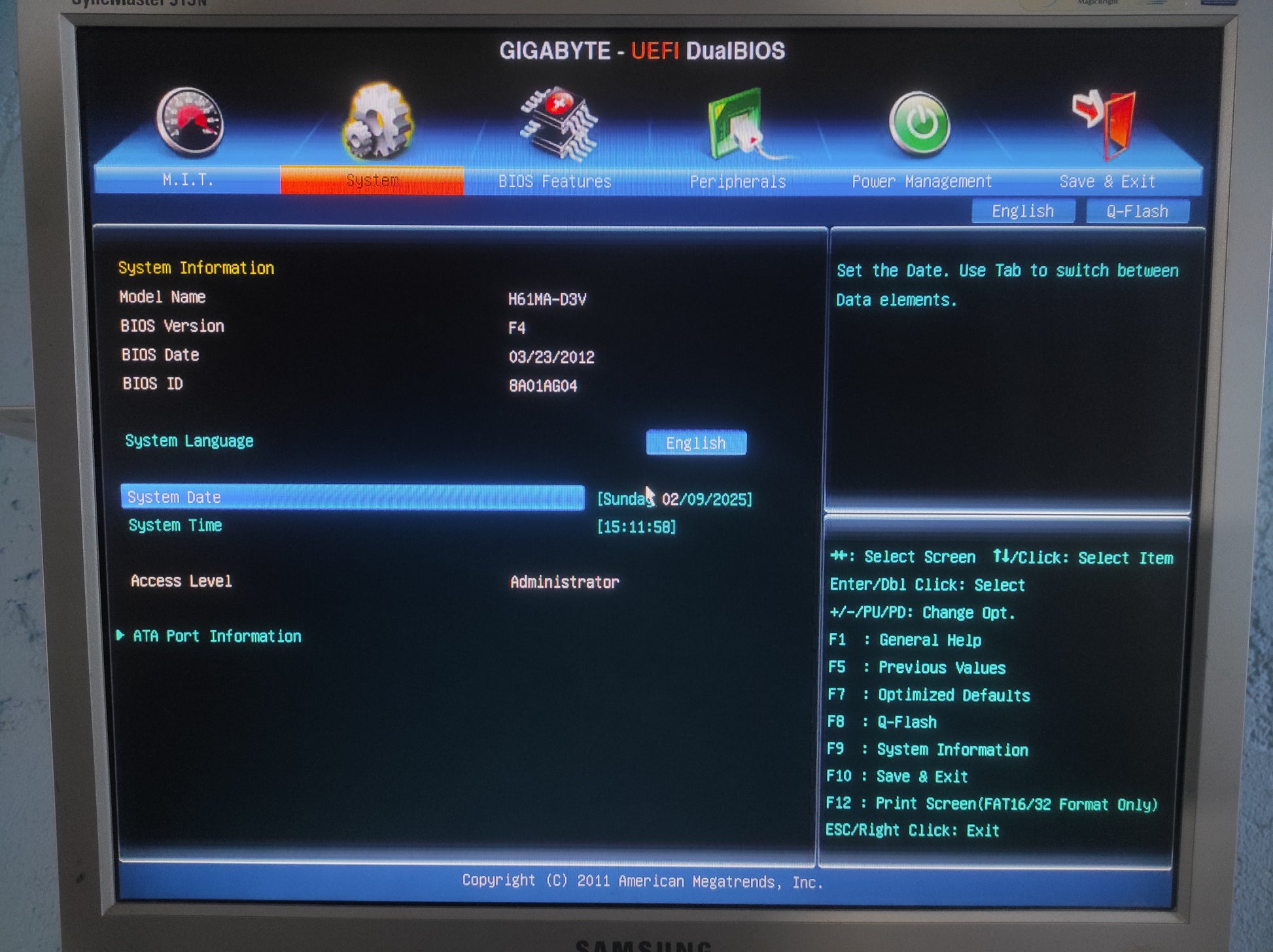

  • BIOS
    1. 2 x 32 Mbit flash
    2. Use of licensed AMI EFI BIOS
    3. Support for DualBIOS™
    4. PnP 1.0a, DMI 2.0, SM BIOS 2.6, ACPI 2.0a


  • Unique Features
    1. Support for @BIOS
    2. Support for Q-Flash
    3. Support for Xpress Recovery2
    4. Support for EasyTune
      * Available functions in EasyTune may differ by motherboard model.
    5. Support for ON/OFF Charge


  • Form Factor
    1. Micro ATX Form Factor; 24.4cm x 17.4cm
