ASRock P4i65GV

Socket 478 mATX DDR Motherboard

Intel 865GV Chipset

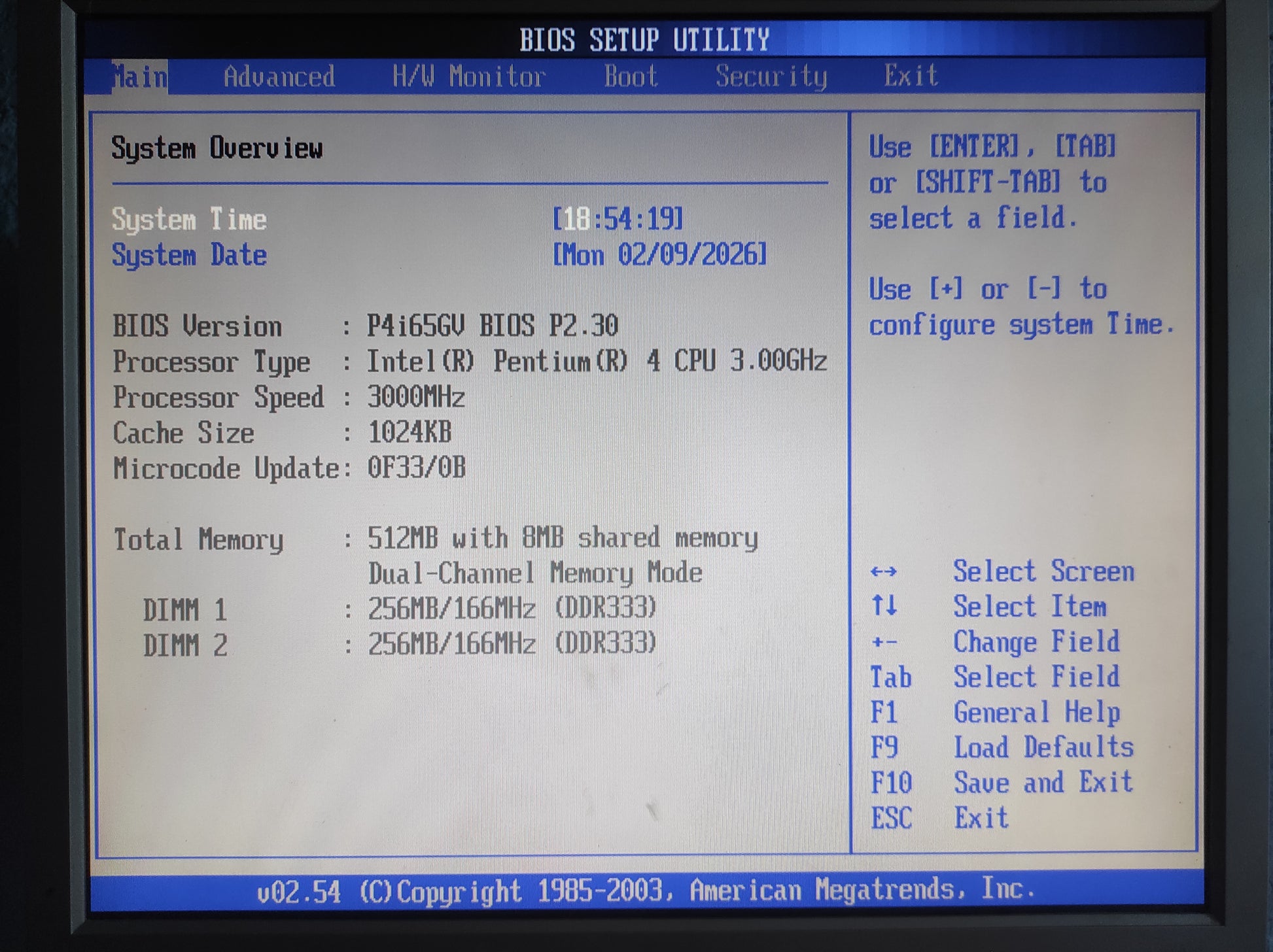

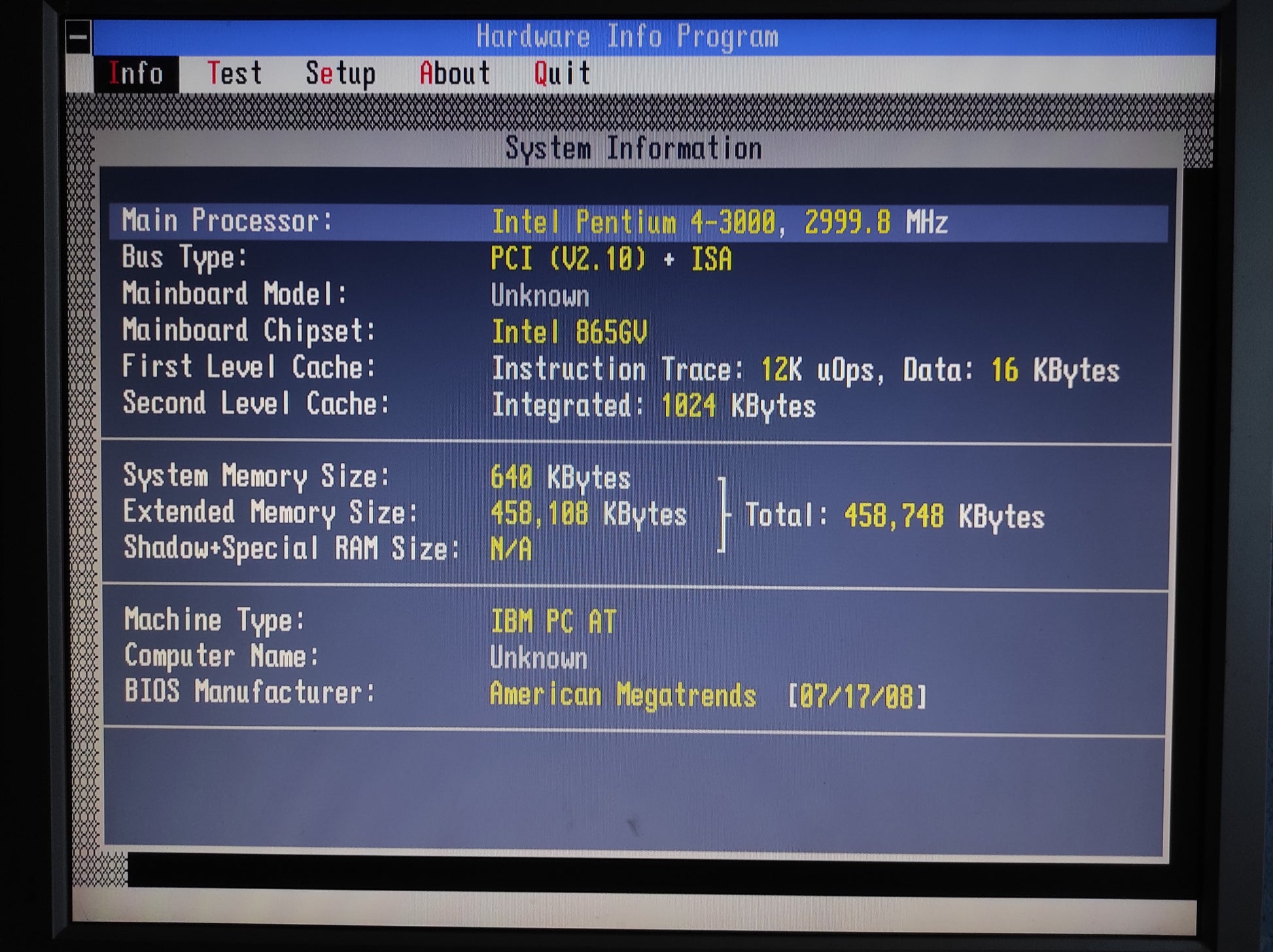

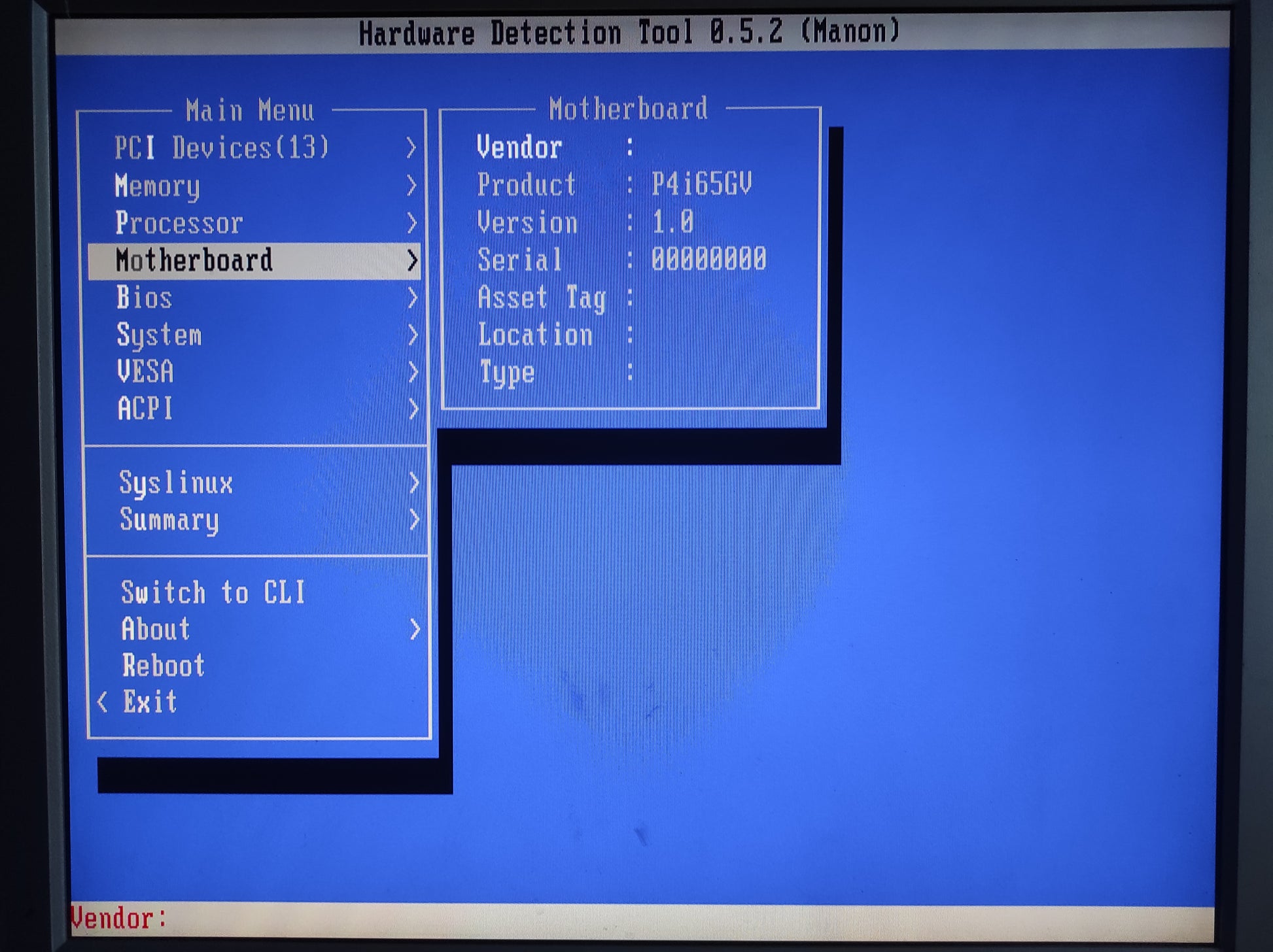

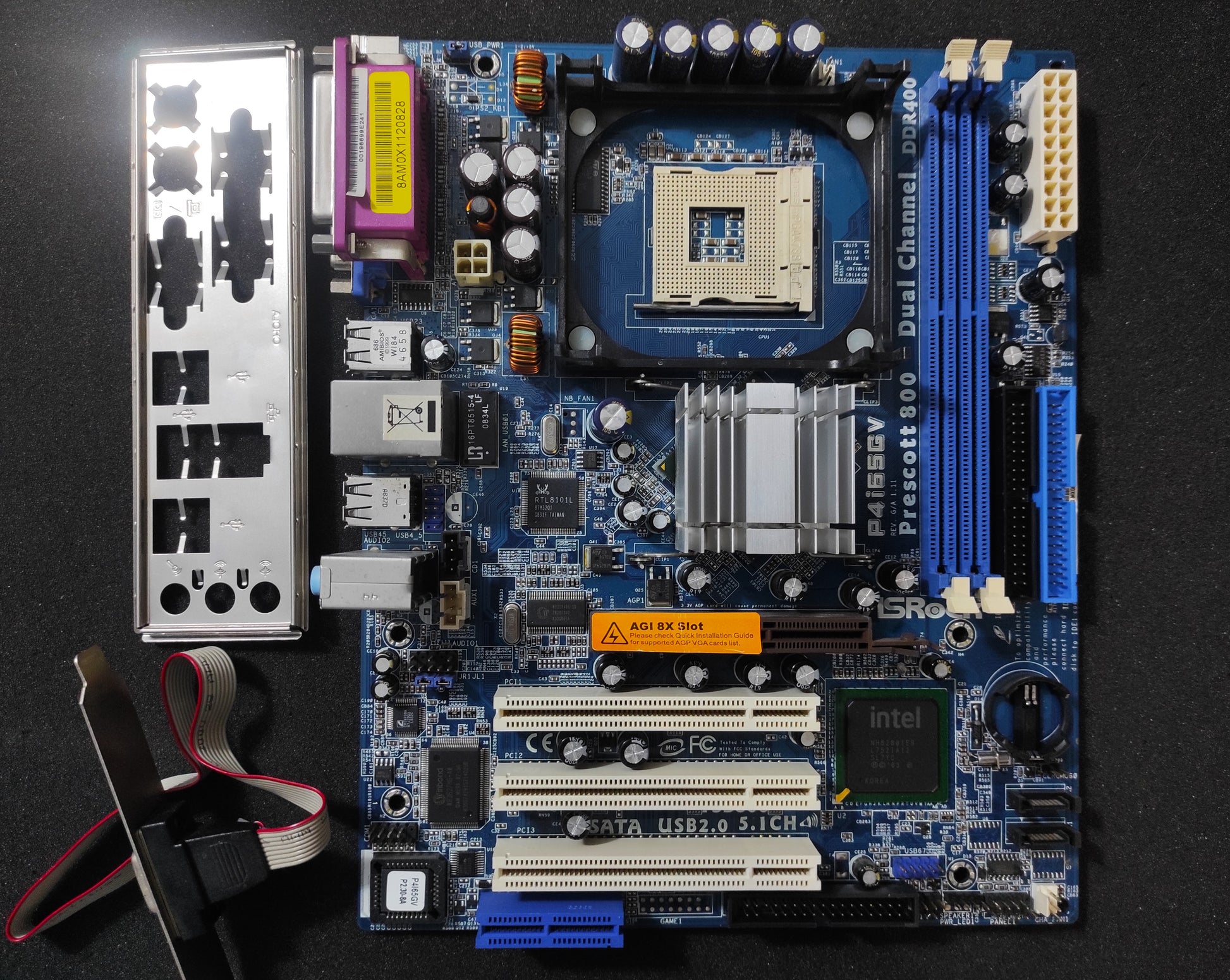

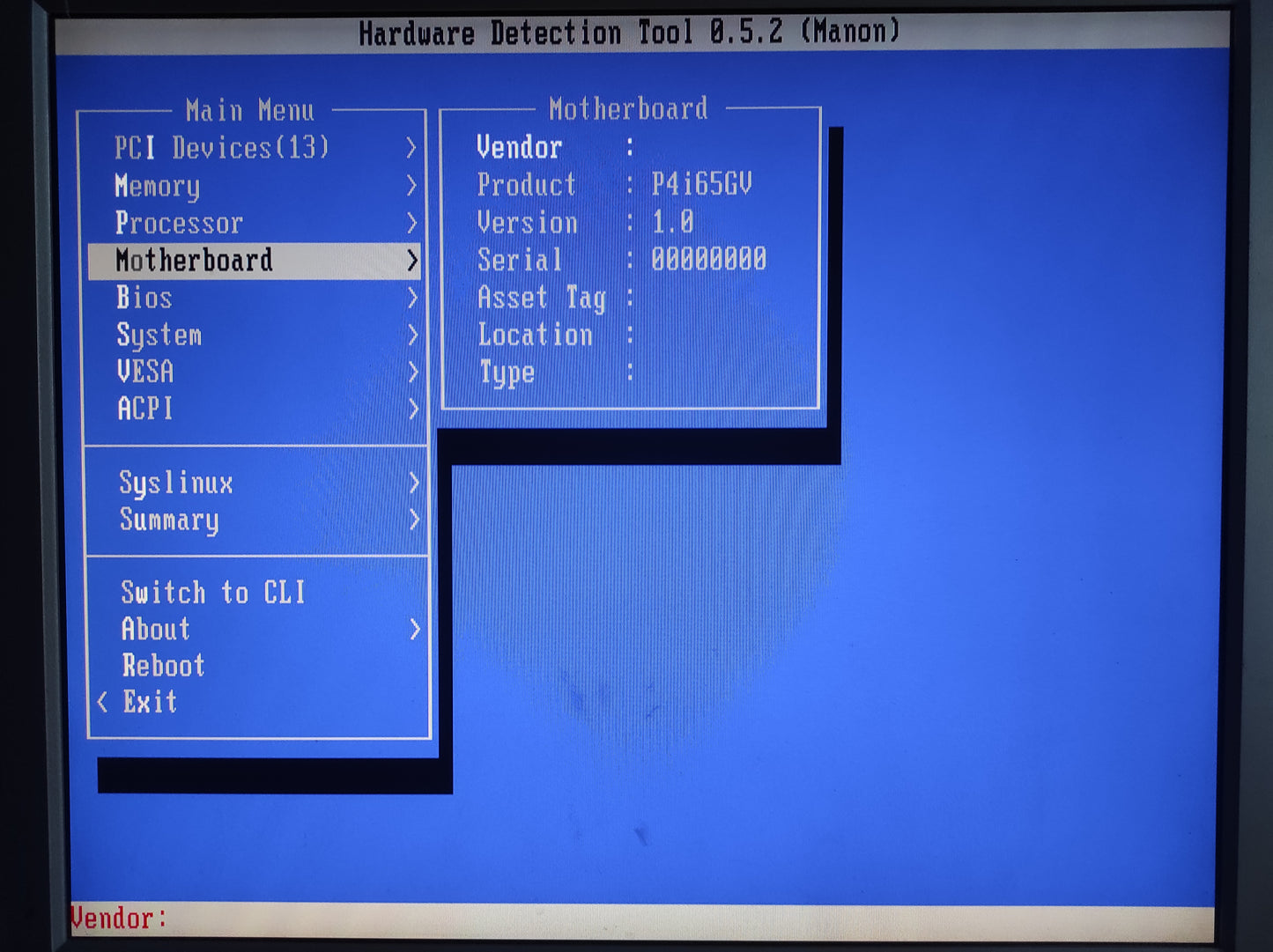

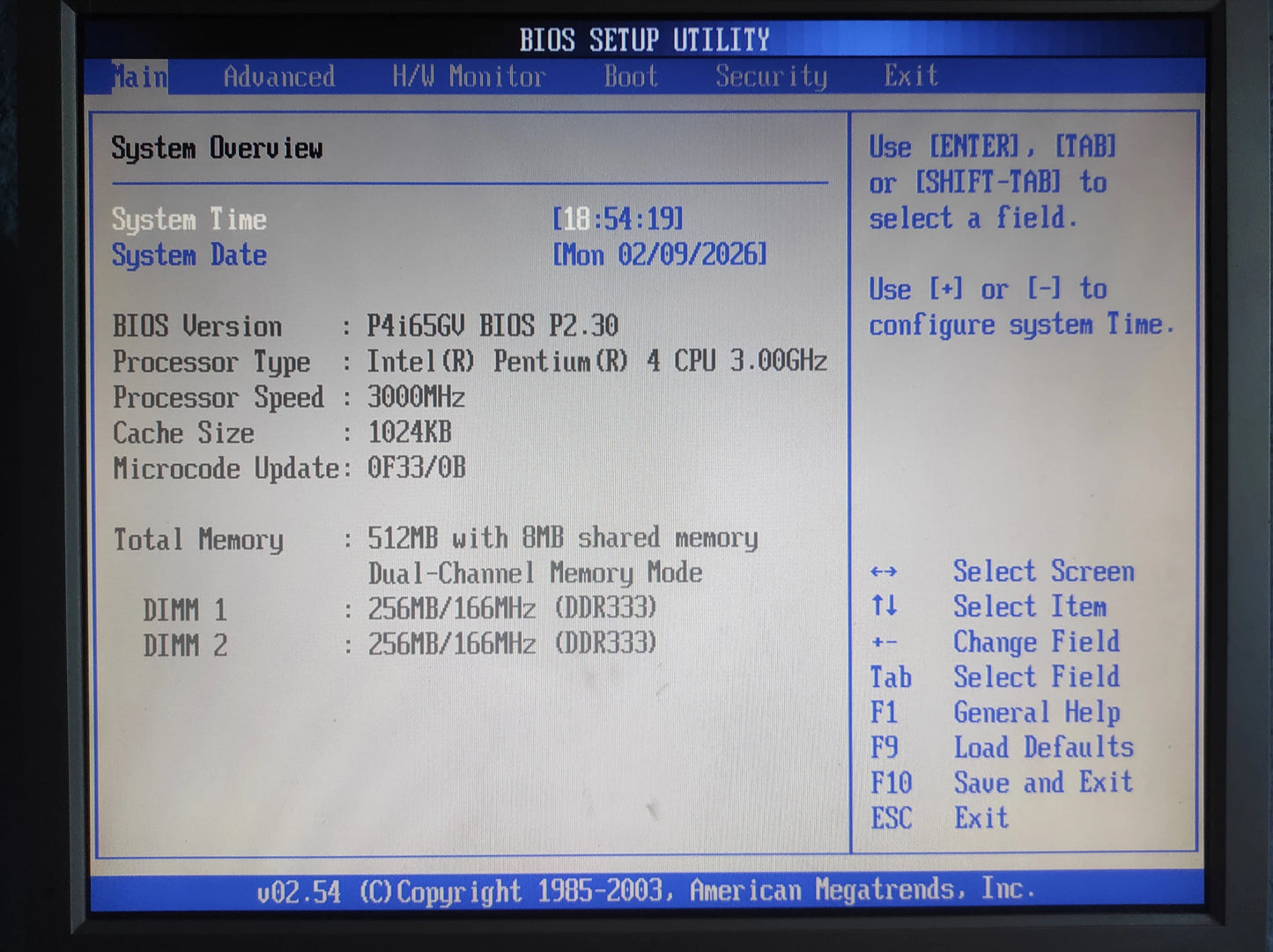

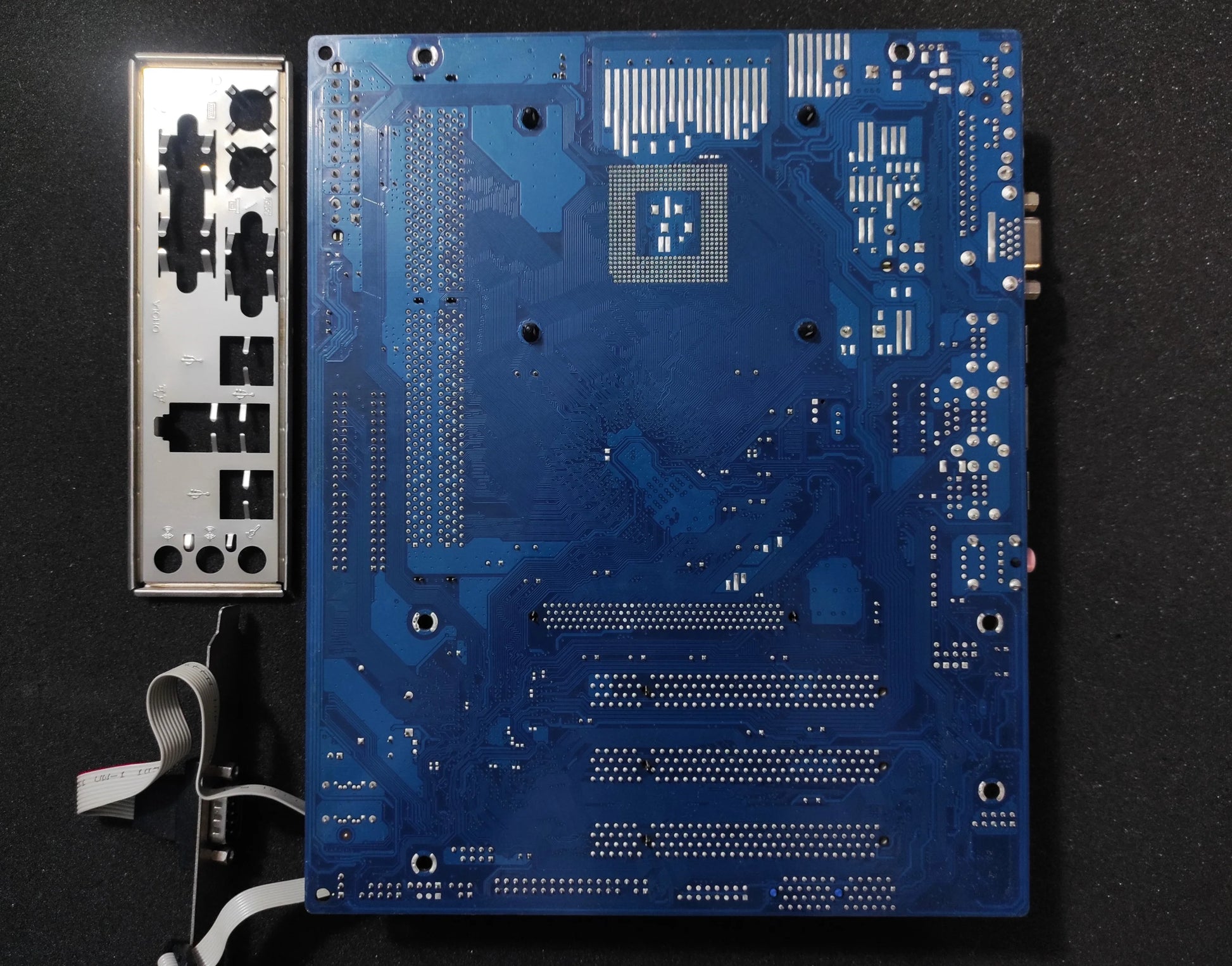

Used motherboard, tested working. In great condition! I/O Shield included! Serial port also included. Check out the pics.

ASRock P4i65GV

Chipset

Intel 865GV (Springdale-GV)

Socket

Socket 478 (mPGA478)

FSB speeds

400MHz533MHz800MHz

Form factor

microATX (max 244 x 244 mm)

Dimensions

244mm x 203mm

Max VRAM size

64MB

Cache

None/Integrated in the CPU

Max RAM size

2GB

RAM type

DDR UDIMM

PSU connector

ATX P4 connector 12v (4-pin P4)ATX 1.x (20-pin ATX)

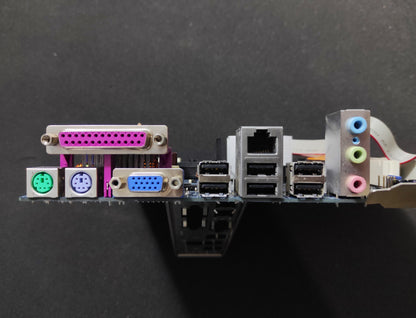

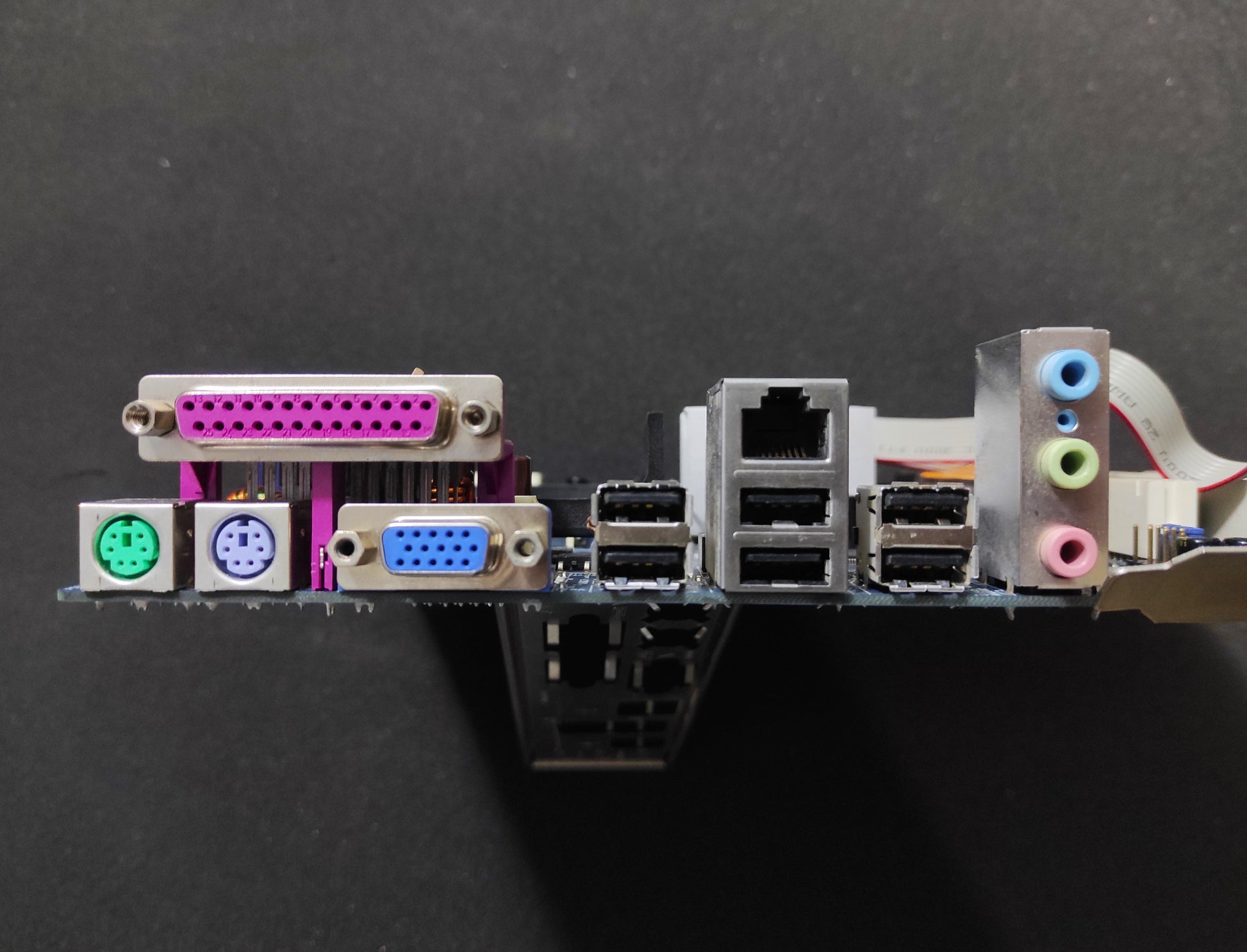

I/O ports

1x

3.5mm Audio Combo

1x

Floppy interface

1x

Gameport

2x

IDE interface

1x

PS/2 keyboard

1x

PS/2 mouse

1x

Parallel

1x

RJ-45 LAN

2x

SATA I

1x

Serial

8x

USB 2.0

1x

VGA

Expansion slots

3x

32-bit PCI

1x

AMR

1x

ASRock AGI

Known issues

• Fake AGP slot

Any AGP cards inserted into this slot operate in PCI 33Mhz Fallback mode.

1. DO NOT use 1.5V exclusive AGP cards (rear notch away from IO side) in this board.
2. ONLY use true universal AGP cards with both slots, these support 1.5V and 3.3V operation.
   • This is a PCI bus connected to an AGP slot.
   • The PCI bus operates at 3.3V and may damage 1.5V exclusive cards.
   • AGP cards are backwards compatible with PCI signalling logic.
   • Performance is greatly reduced vs a true AGP bus.
