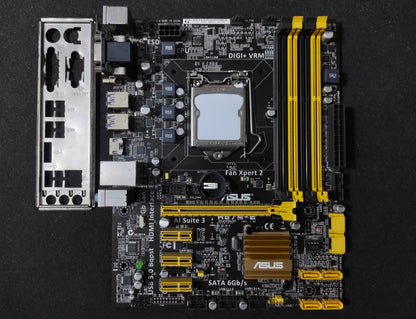

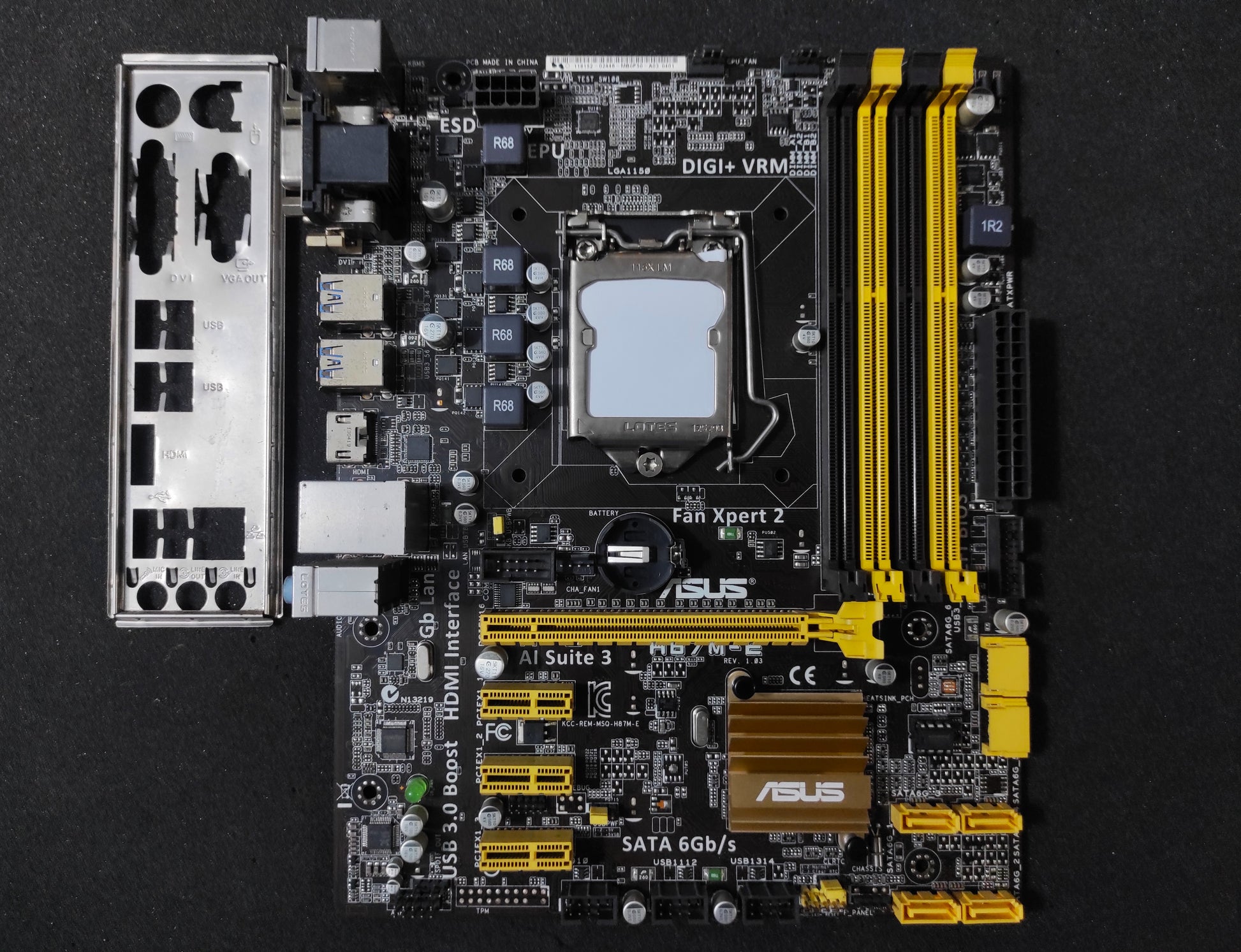

ASUS H87M-Ε Socket 1150 DDR3 mATX Motherboard Intel H87 Express Chipset

ASUS H87M-Ε Socket 1150 DDR3 mATX Motherboard Intel H87 Express Chipset

€49,90 EUR
€49,90 EUR
Sale Sold out
Taxes included. Shipping calculated at checkout.

ASUS H87M-Ε

Socket 1150 DDR3 mATX Motherboard

Intel H87 Express Chipset

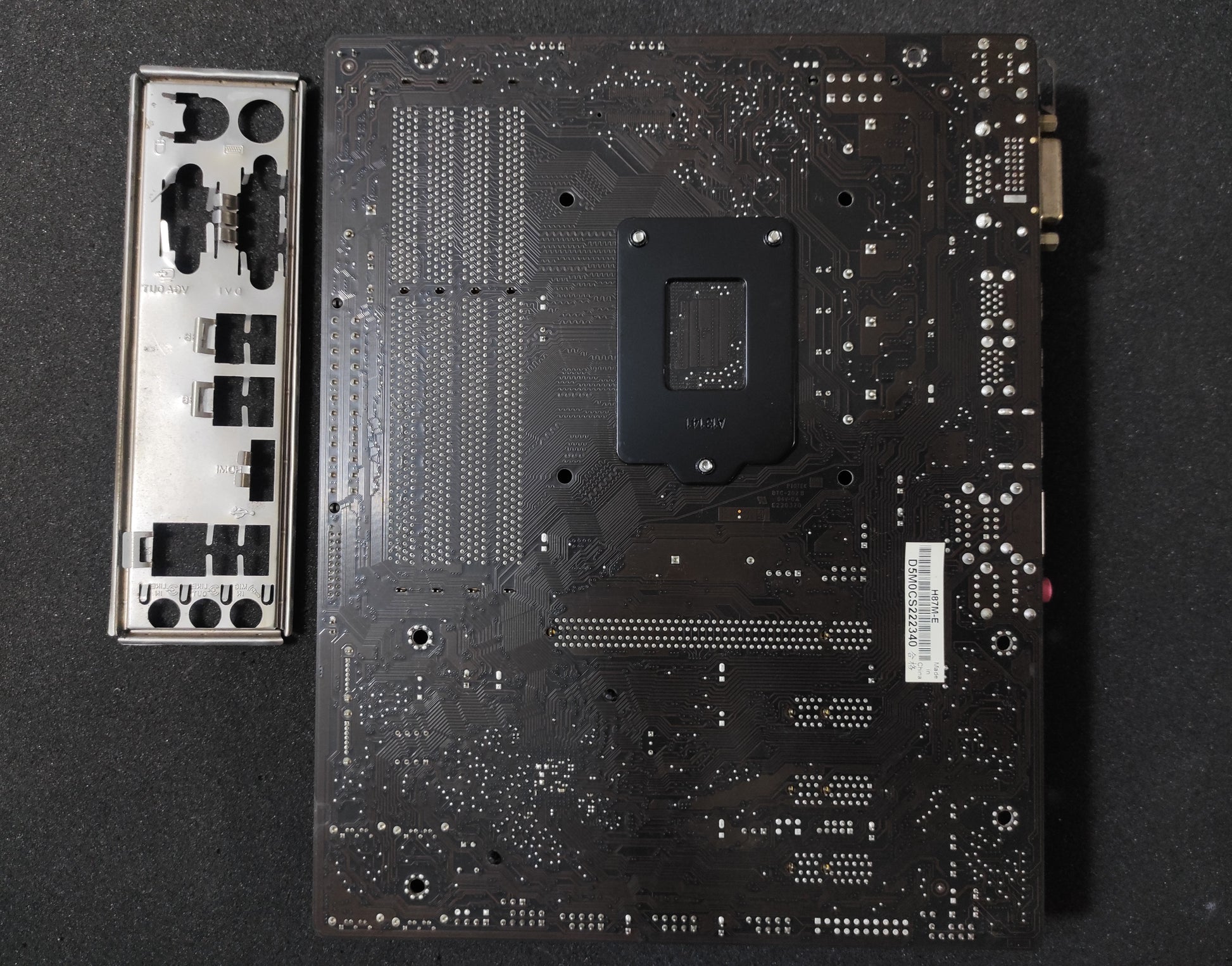

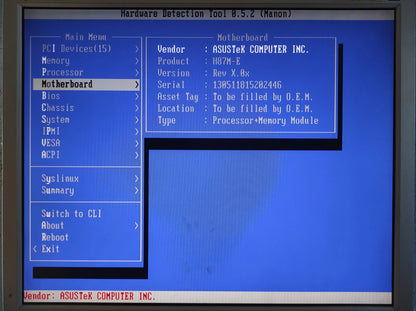

Used Motherboard tested working! In great condition! No bent pins. I/O Shield Included!

H87M-E
Micro-ATX H87 features high-endurance
5X PROTECTION and new UEFI BIOS
  • ASUS 5X PROTECTION - All-round protection provides the best quality, reliability, and durability
  • New UEFI BIOS – Friendlier, easier, and more intuitive with helpful info added
  • Fan Xpert 2 - Comprehensive controls for the perfect cool and quiet balance
  • USB 3.0 Boost (UASP Support) - 170% faster transfer speeds than traditional USB 3.0
  • Network iControl - Real-time network bandwidth management

ASUS 5X PROTECTION
All-round protection provides the best quality, reliability, and durability
ASUS motherboards guard your PC with 5X PROTECTION. We use quality components like DIGI+ VRM
digital power design for precise CPU power on demand, ESD units tested to strict standards that
eliminate electrostatic interference, and resettable fuses around DRAM slots to prevent overcurrent
and short-circuit damage. We also use corrosion-resistant back I/O shields, all examples of ASUS
providing the best possible reliability and durability.



DIGI+ VRM
Precise power control and long-lasting stability
Voltage regulator modules (VRMs) are among the most essential motherboard components.
A good VRM intelligently delivers CPU power based on actual needs at any given time.
ASUS was first with digital power design featuring faster sensing and response to deliver
precise CPU power on demand. This great accuracy reduces energy waste and of course improves
system stability thanks to more consistent delivery.


Enhanced DRAM Overcurrent Protection
Short-circuit damage prevention
Onboard resettable fuses prevent overcurrent and short-circuit damage. This extends beyond I/O
ports to DRAM to safeguard system and device lifespan.



ESD Guards
Strong ESD protection for extended component lifespan
Electrostatic discharges (ESD) can happen suddenly, and their damaging effects are often
underestimated. ASUS ESD Guards offer an active protective circuit design that ensures
electrostatic discharges are properly grounded, providing greater component longevity.


All 5K-hour Solid State Capacitors
2.5X longer lifespan with excellent durability
ASUS high-quality solid state capacitors assure a 5,000-hour lifespan, equivalent to 2.5
times longer than traditional capacitors. All capacitors pass testing under temperatures
as high as 105 degrees centigrade and meet Japanese industrial standards to provide excellent
durability and enhanced thermal capacity.

Stainless Steel Back I/O
3X more durable corrosion-resistant coating
ASUS motherboard back I/O panels are made from strong and corrosion-resistant stainless steel,
which is bonded with a thin layer of chromium oxide to enhance anti-corrosive properties.
Passing 72-hour spray salt endurance tests, ASUS stainless steel back I/O panels have a usage
life three times longer compared to ordinary panels.



TECH SPECS

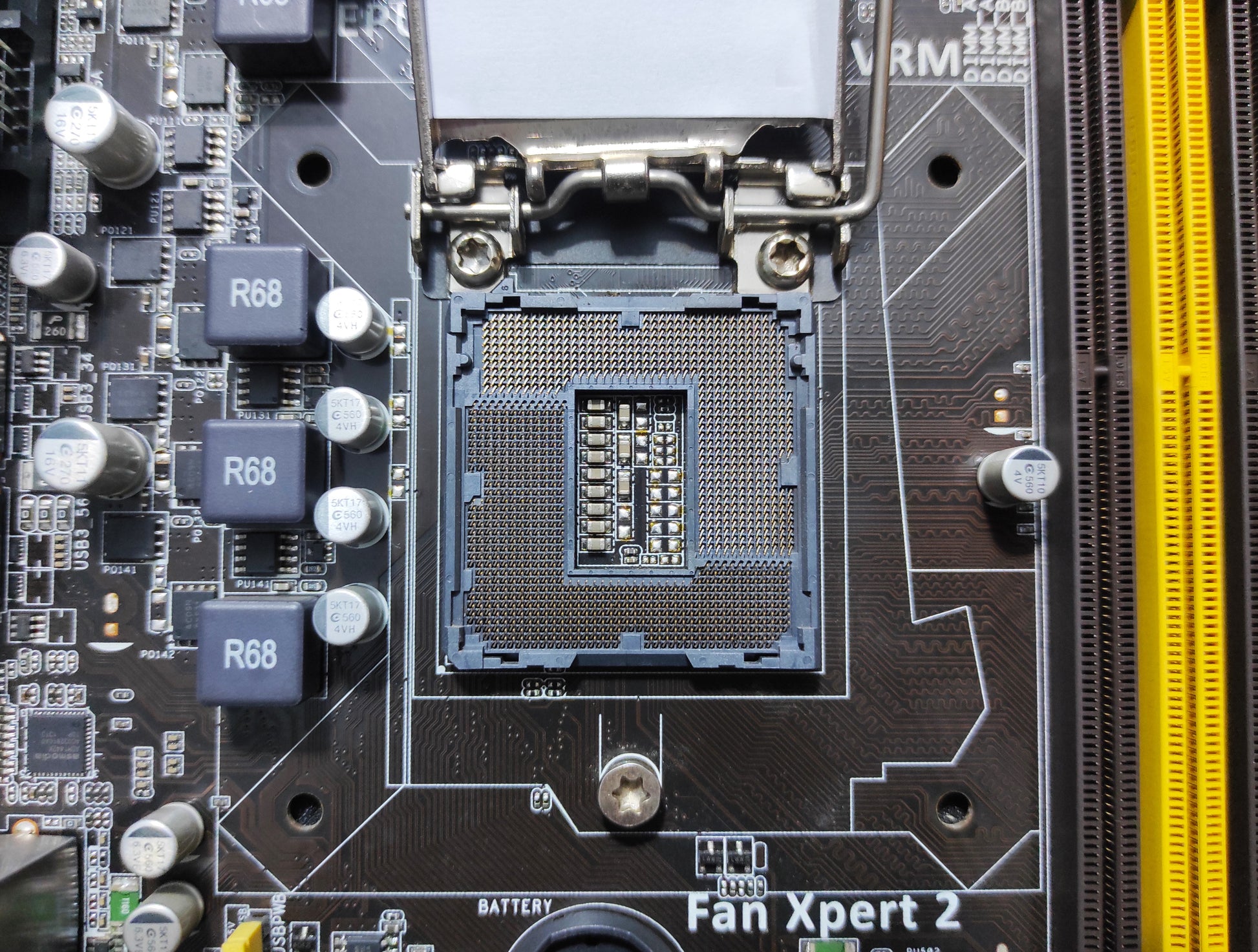

  • CPU
    Intel® Socket 1150 for 4th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
    Supports Intel® 22 nm CPU
    Supports Intel® Turbo Boost Technology 2.0
    * The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
    * Refer to asus for CPU support list
  • Chipset
    Intel® H87
  • Memory
    4 x DIMM, Max. 32GB, DDR3 1600/1333/1066 MHz Non-ECC, Un-buffered Memory
    Dual Channel Memory Architecture
    Supports Intel® Extreme Memory Profile (XMP)
    * Hyper DIMM support is subject to the physical characteristics of individual CPUs.
    * Refer to asus for the Memory QVL (Qualified Vendors Lists).
    * Due to Intel® chipset limitation, DDR3 1600 MHz and higher memory modules on XMP mode will run at the maximum transfer rate of DDR3 1600 Mhz.
  • Graphic
    Integrated Graphics Processor
    Multi-VGA output support : HDMI/DVI-D/RGB ports
    - Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
    - Supports DVI with max. resolution 1920 x 1200 @ 60 Hz
    - Supports RGB with max. resolution 1920 x 1200 @ 60 Hz
    Maximum shared memory of 1024 MB
    Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™
    Supports up to 3 displays simultaneously
  • Expansion Slots
    1 x PCIe 3.0/2.0 x16 (x16 mode, yellow)
    3 x PCIe 2.0 x1
  • Storage
    Intel® H87 chipset :
    6 x SATA 6Gb/s port(s), yellow
    Support Raid 0, 1, 5, 10
    Supports Intel® Smart Response Technology, Intel® Rapid Start Technology, Intel® Smart Connect Technology *1
  • LAN
    Realtek® 8111G, 1 x Gigabit LAN Controller(s)
  • Audio
    Realtek® ALC887 8-Channel High Definition Audio CODEC *2
    - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
  • USB Ports
    Intel® H87 chipset :
    6 x USB 3.0/2.0 port(s) (4 at back panel, blue, 2 at mid-board)
    Intel® H87 chipset :
    8 x USB 2.0/1.1 port(s) (2 at back panel, black, 6 at mid-board)
  • Special Features
    ASUS 5X PROTECTION :
    - ASUS DIGI+ VRM - Phase digital power design
    - ASUS Enhanced DRAM Overcurrent Protection - Short circuit damage prevention
    - ASUS ESD Guards - Enhanced ESD protection
    - ASUS All 5K-Hour Solid Capacitors - 2.5x long lifespan with excellent durability
    - ASUS Stainless Steel Back I/O - 3x more durable corrosion-resistant coating
    ASUS EPU :
    - EPU
    ASUS Exclusive Features :
    - GPU Boost
    - AI Suite 3
    - Ai Charger
    - Anti-Surge

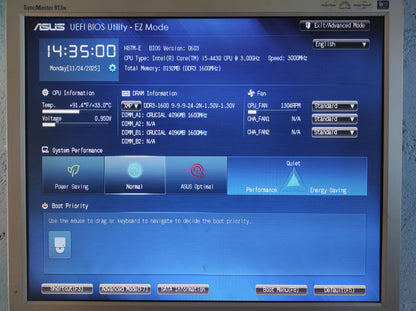

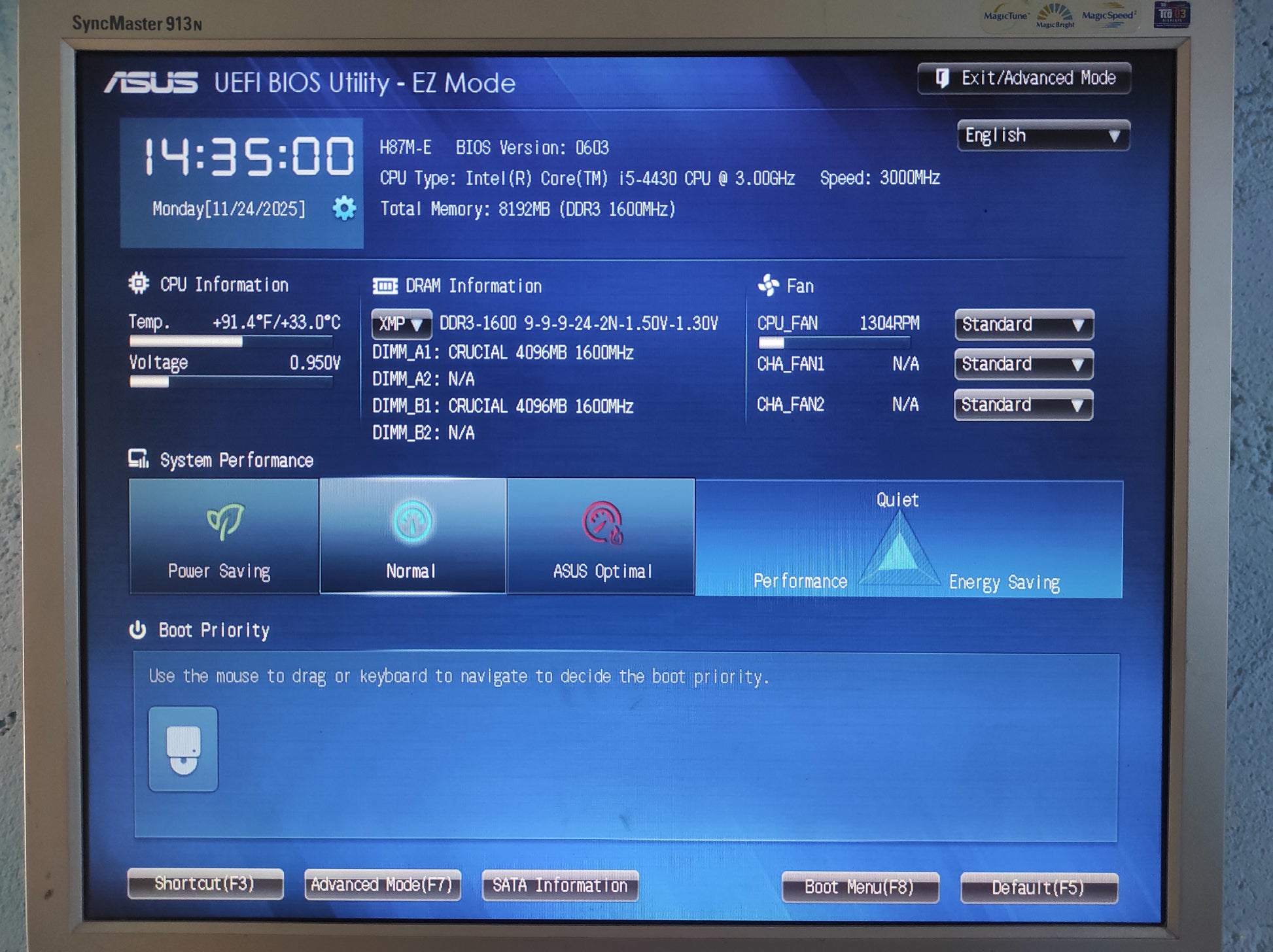

    - ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
    - Network iControl
    - USB 3.0 Boost
    - Disk Unlocker
    ASUS Quiet Thermal Solution :
    - Stylish Fanless Design Heat-sink solution
    - ASUS Fan Xpert 2
    ASUS EZ DIY :
    - ASUS CrashFree BIOS 3
    - ASUS EZ Flash 2
    ASUS Q-Design :
    - ASUS Q-Slot
    - ASUS Q-DIMM

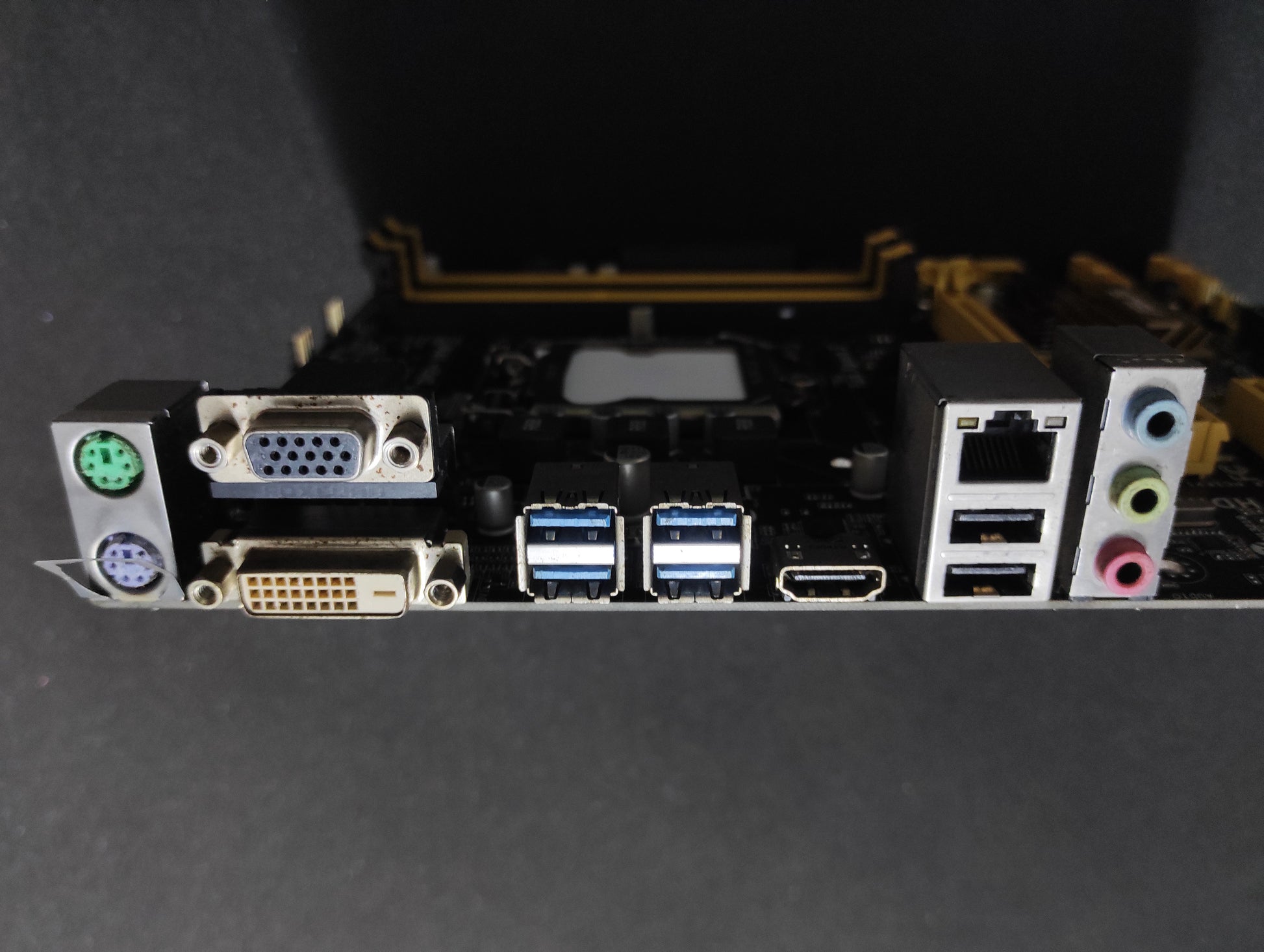

  • Back I/O Ports
    1 x PS/2 keyboard (purple)
    1 x PS/2 mouse (green)
    1 x DVI-D
    1 x D-Sub
    1 x HDMI
    1 x LAN (RJ45) port(s)
    4 x USB 3.0
    2 x USB 2.0
    3 x Audio jack(s)
  • Internal I/O Ports
    1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) (19-pin)
    3 x USB 2.0 connector(s) support(s) additional 6 USB 2.0 port(s)
    1 x COM port(s) connector(s)
    6 x SATA 6Gb/s connector(s)
    1 x CPU Fan connector(s) (1 x 4 -pin)
    2 x Chassis Fan connector(s) (2 x 4 -pin)
    1 x S/PDIF out header(s)
    1 x 24-pin EATX Power connector(s)
    1 x 8-pin ATX 12V Power connector(s)
    1 x Front panel connector(s)
    1 x Internal speaker connector(s)
    1 x System panel(s)
    1 x Clear CMOS jumper(s)
