CPU

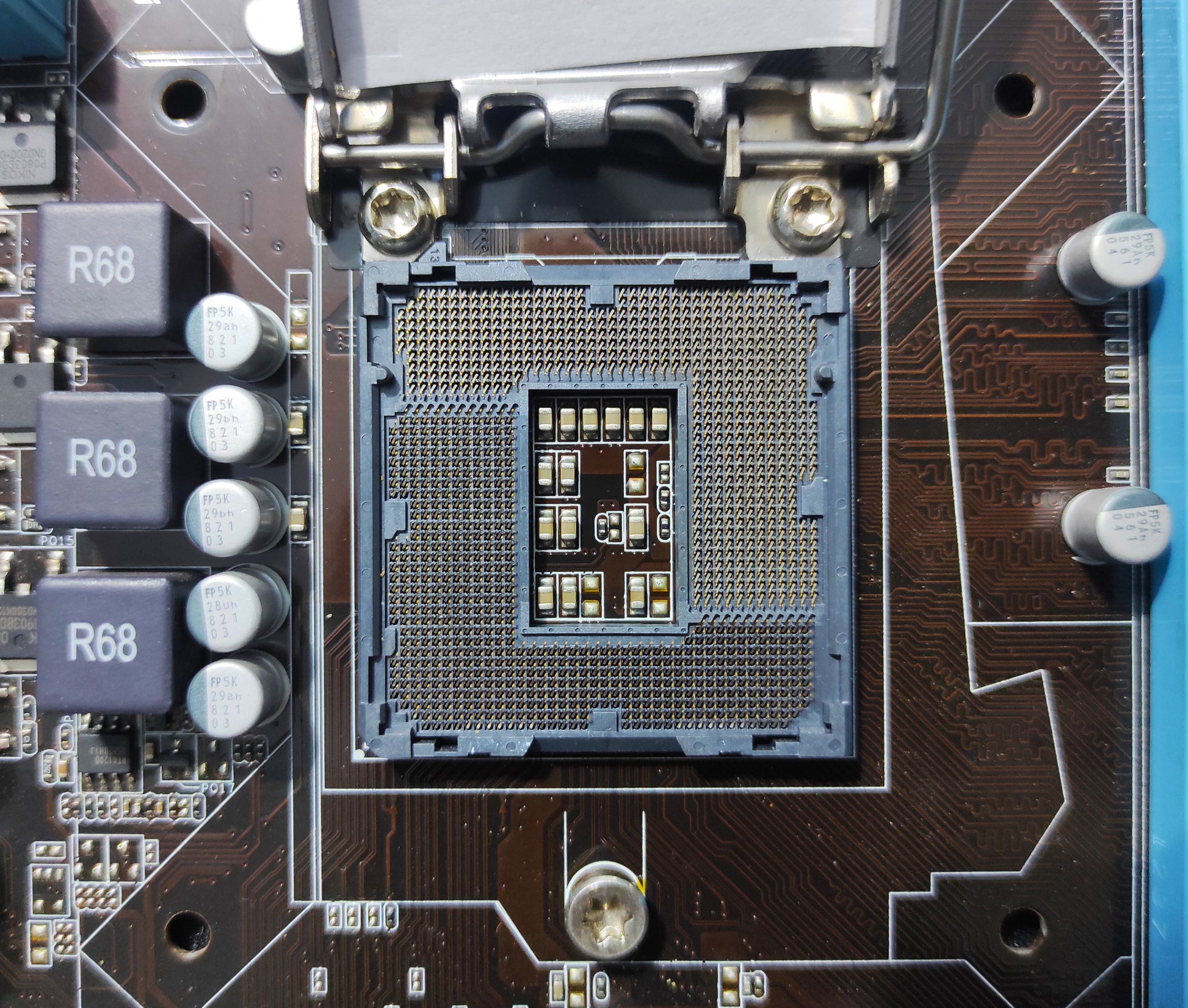

Intel Socket 1155 for 3 ^rd / 2 ^nd Generation Core "˘ i7 / Core" ˘ i5 / Core "˘ i3 Processors
Supports Intel 22 nm CPU
Supports Intel 32 nm CPU

Chipset

Intel H61 (B3)

Memory

2 x DIMM, Max. 16GB DDR3 2200 (OC) / 2133 (OC) / 2000 (OC) / 1866 (OC) / 1600/1333/1066 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
* Higher frequency 1600MHz and is supported by Intel 3rd generation processors.
* Due to OS limitation, When installing total memory capacity of 4 gigabytes or more, Windows 32-bit operation system only May Recognize Less than 3 gigabytes Install a 64-bit Windows OS When you want to install 4 gigabytes or more memory on the motherboard.

Graphic

Integrated Graphics Processor
Multi-VGA output support: DVI / RGB ports
- Supports DVI with max. Resolution 1920 x 1200 @ 60 Hz
- Supports RGB with max. Resolution 2048 x 1536 @ 75 Hz

Expansion Slots

1 x PCIe 3.0 / 2.0 x16 * ¹
2 x PCIe 2.0 x1

Storage

Intel H61 (B3) chipset:

LAN

Realtek 8111F-VB-CG, 1 x Gigabit LAN Controller (s)

Audio

VIA VT1708S 8-Channel High Definition Audio CODEC
- Supports: Multi-streaming

USB Ports

Intel H61 (B3) chipset:

Special Features

ASUS Protect Technology:

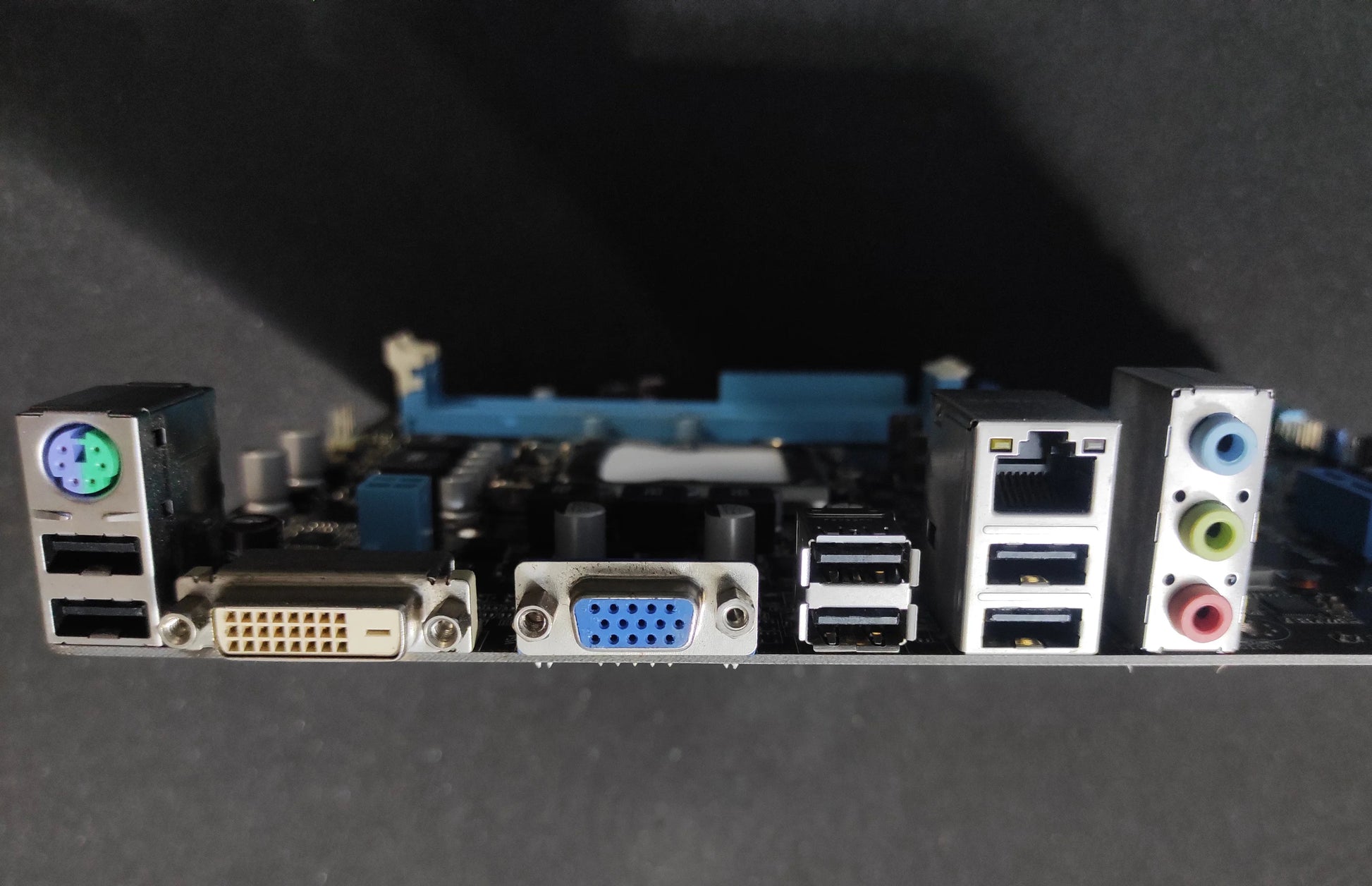

Back I / O Ports

1 x PS / 2 keyboard / mouse combo port (s)
1 x DVI
1 x D-Sub
1 x LAN (RJ45) port (s)
6 x USB 2.0
3 x Audio jack (s)

Internal I / O Ports

2 x USB 2.0 connector (s) support (s) additional 4 USB 2.0 port (s)
4 x SATA 3Gb / s connector (s)
1 x CPU Fan connector (s)
1 x Chassis Fan connector (s)
1 x 24-pin EATX Power connector (s)
1 x 4-pin ATX 12V Power connector (s)
1 x Front panel connector (s)
1 x Front panel audio connector (s) (AAFP)
1 x Internal speaker connector (s)

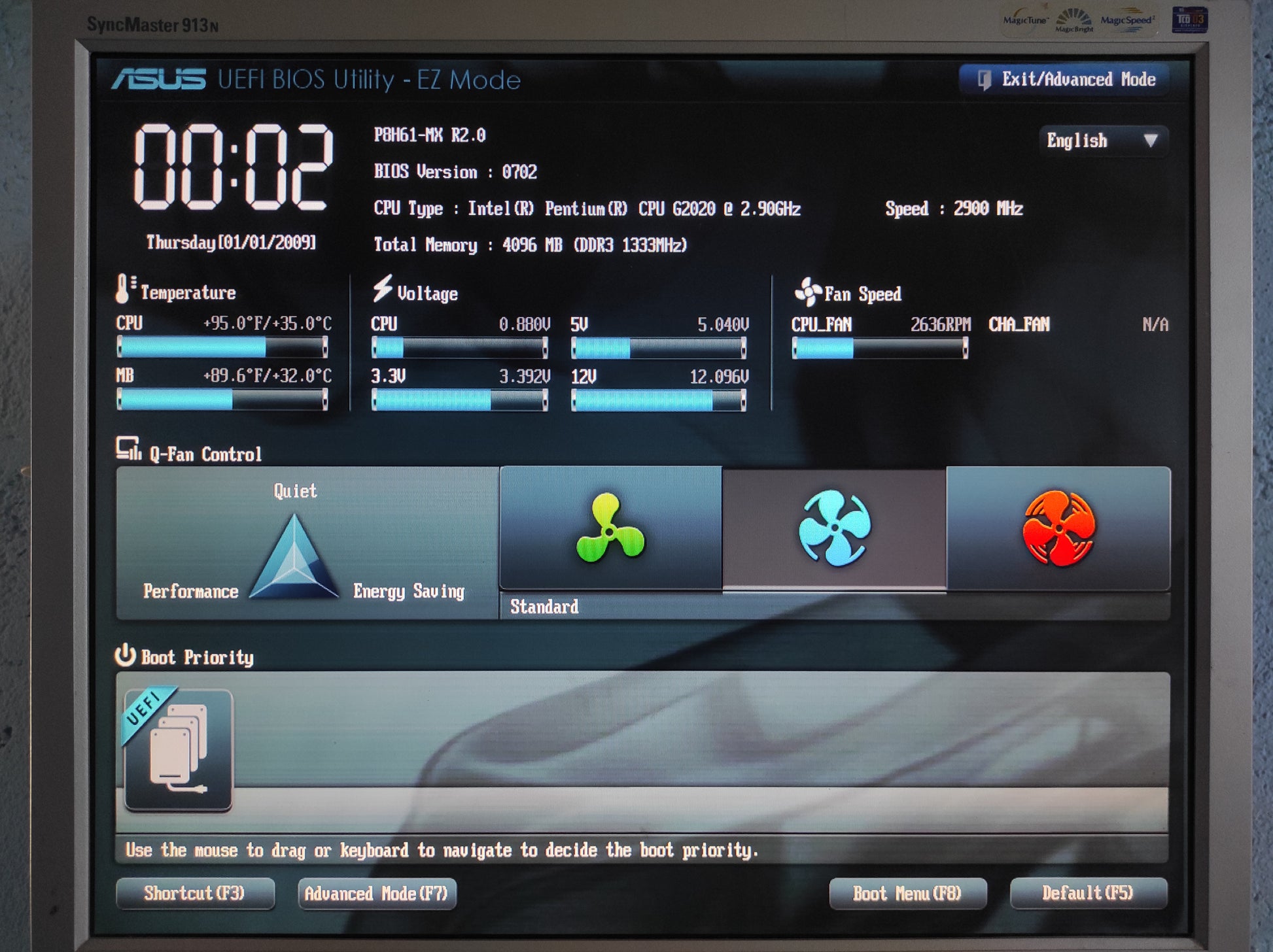

BIOS

64MB Flash ROM, UEFI BIOS, PnP, DMI v2.0, WfM2.0, SMBIOS v2.6, v2.0 ACPI

Manageability

WOL, PXE, PME Wake Up

Form Factor

uATX Form Factor
9.6 inch x 7.2 inch (24.4 cm x 18.3 cm)
