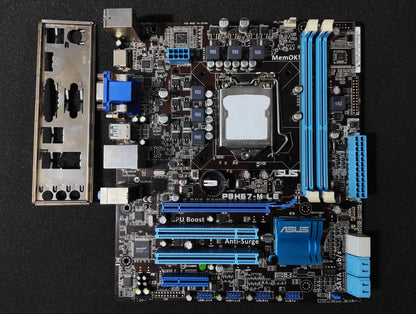

ASUS P8H67-M LE Socket 1155 mATX Motherboard DDR3 Intel H67 Express Chipset
ASUS P8H67-M LE Socket 1155 mATX Motherboard DDR3 Intel H67 Express Chipset
Regular price
€34,90 EUR
Regular price
Sale price
€34,90 EUR
Unit price
/
per
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability
ASUS P8H67-M LE
Socket 1155, mATX, Motherboard DDR3
Intel H67 Express Chipset

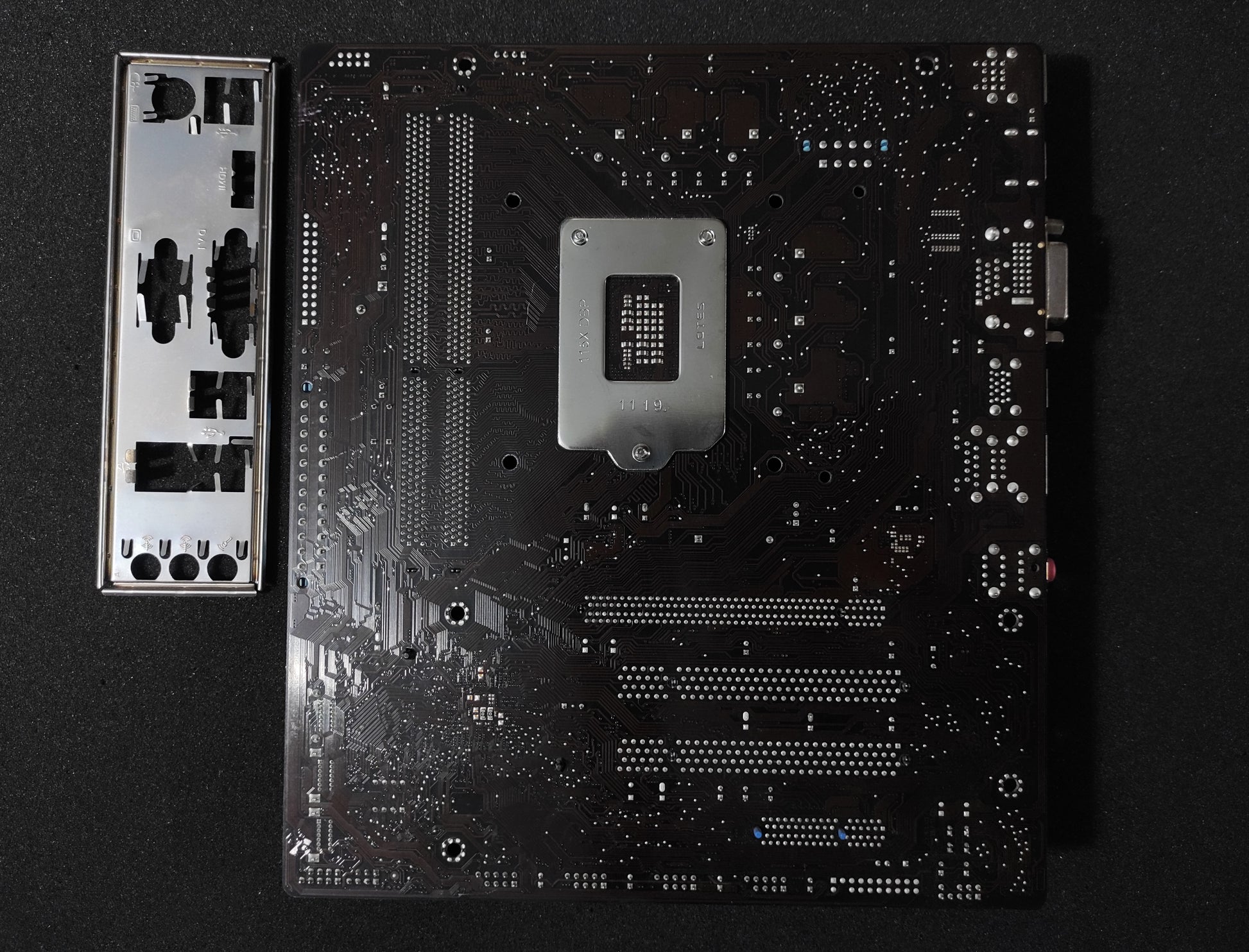

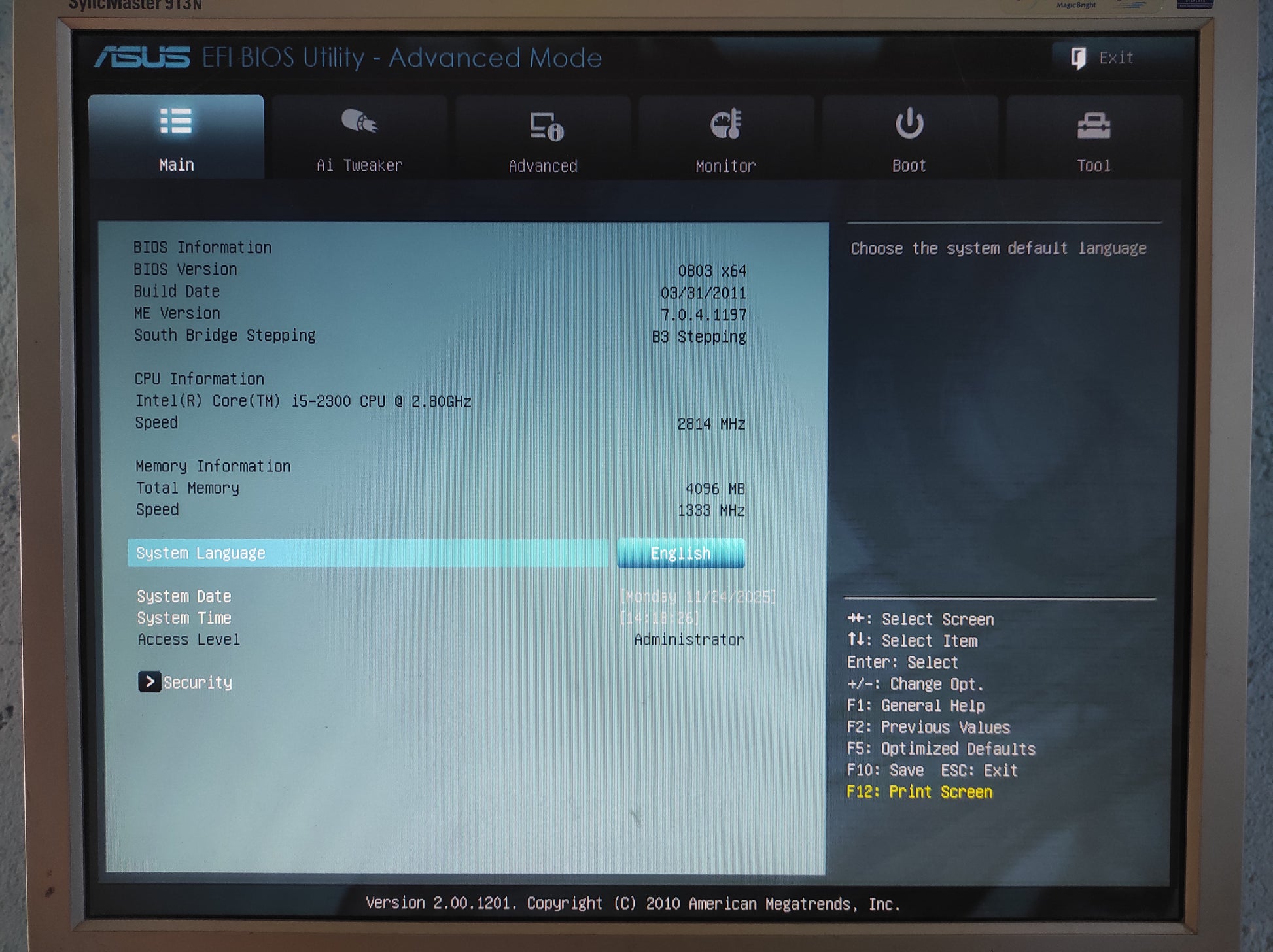

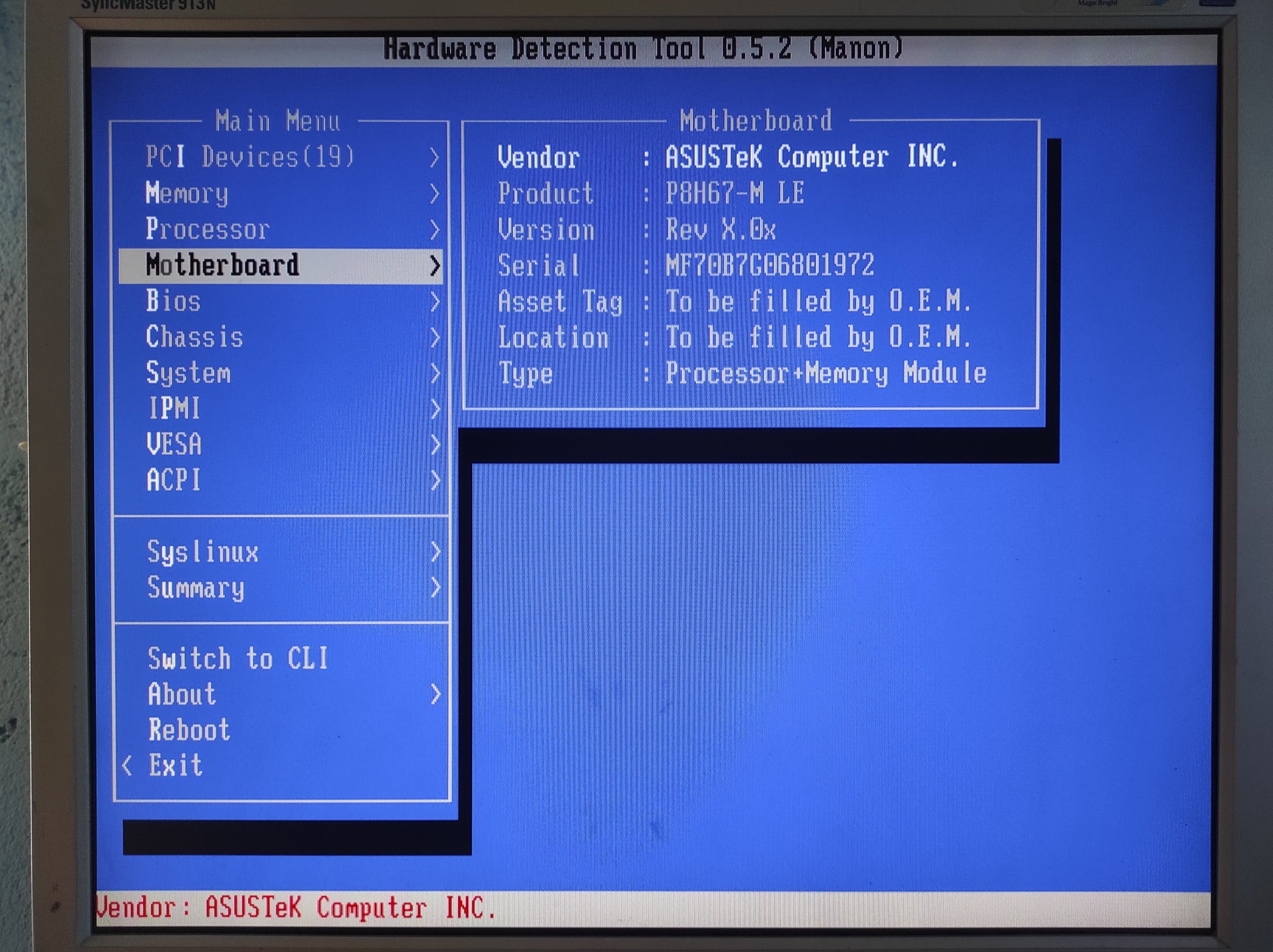

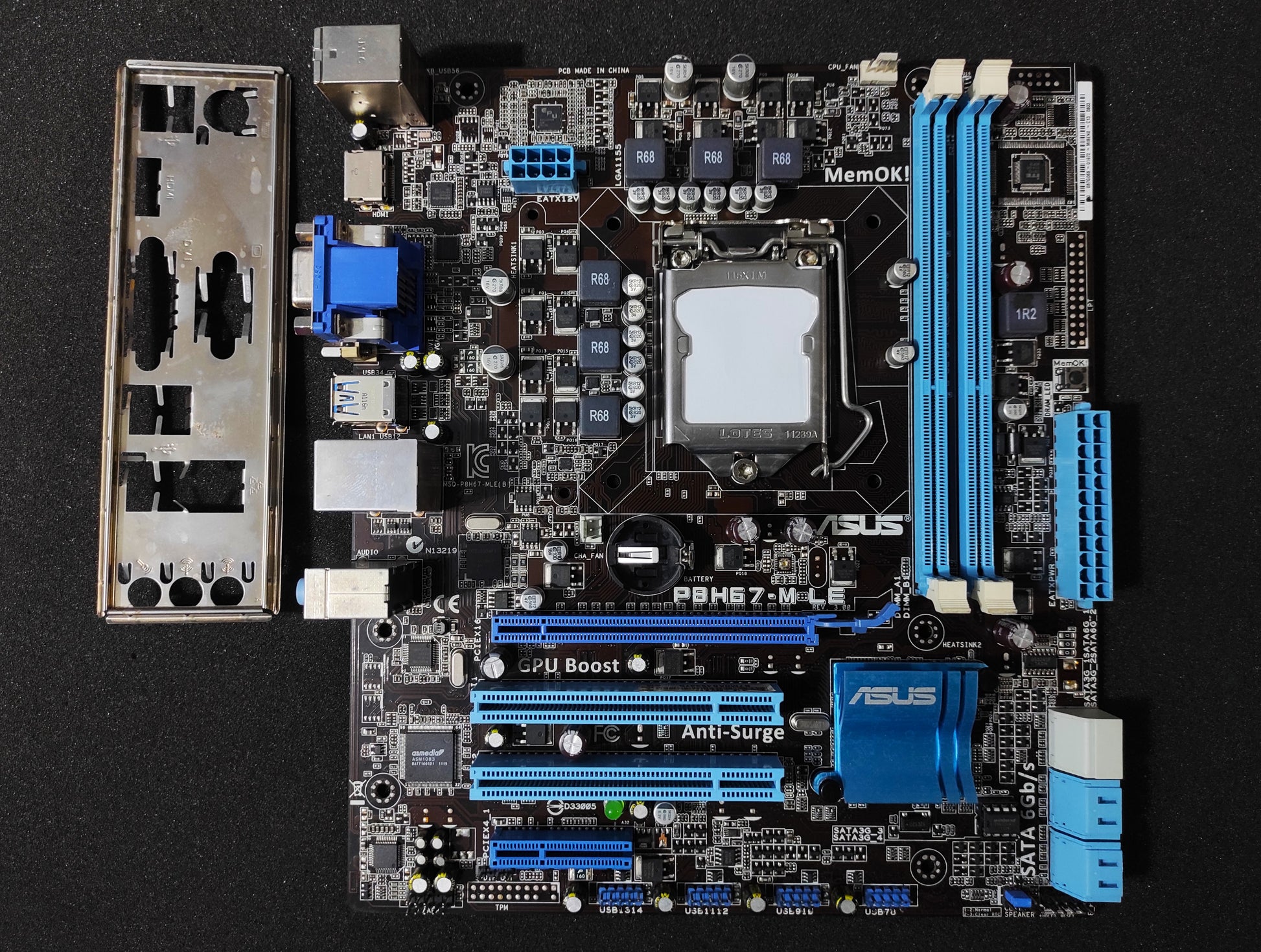

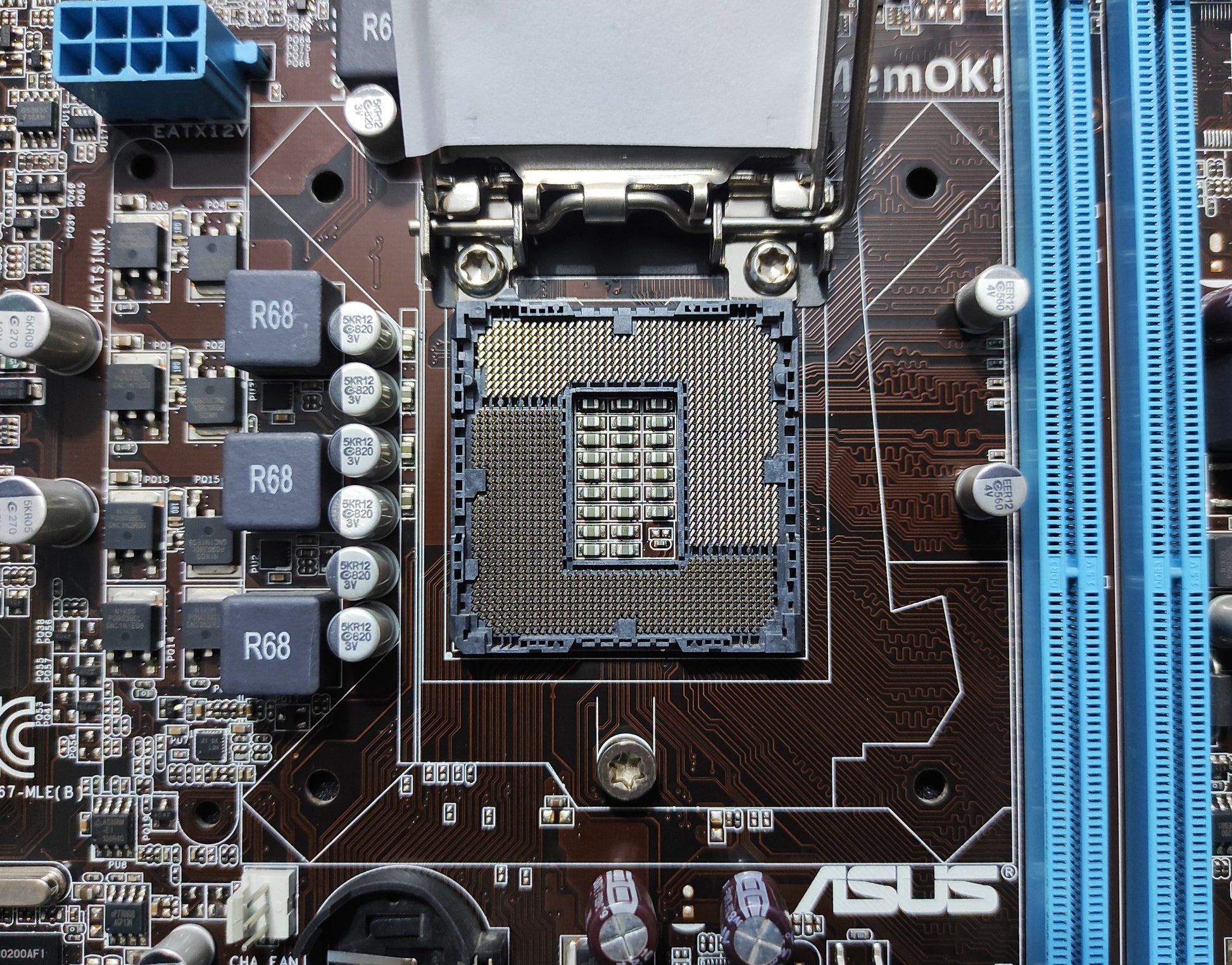

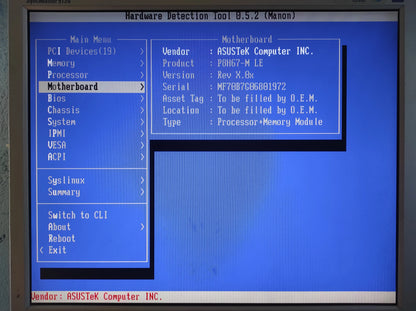

Used motherboard, tested working. In very good condition! No bent pins. Check out the pics! I/O Shield included!
Specifications
| CPU | Intel® Socket 1155 for Intel® 2nd Generation Core i7 Processor/Core i5 Processor/Core i3 Processor/ Support Intel® 32nm CPU |
| Chipset | Intel® H67(B3) Express Chipset |
| Memory | 2 x DIMM, Max. 16 GB, DDR3 1333/1066 Non-ECC,Un-buffered Memory Dual Channel memory architecture * According to Intel® SPEC, the Max. 32GB memory capacity can be supported with DIMMs of 8GB (or above). ASUS will update QVL once the DIMMs are available on the market. * Please refer to www.asus.com or user manual for Memory QVL. * When installing total memory of 4GB capacity or more, Windows 32-bit operation system may only recognize less than 3GB. Hence, a total installed memory of less than 3GB is recommended. |
| Expansion Slots | 1 x PCIe 2.0 x16 1 x PCIe 2.0 x4 2 x PCI |
| VGA | Multi-VGA Output Support: HDMI, DVI-D and D-SUB Ports HDMI with Max. Resolution : 1920 X 1200 @60Hz DVI with Max. Resolution : 1920 X 1200 @60Hz D-SUB with Max. Resolution : 2048 X 1536 @75Hz |
| Storage |
Intel® H67(B3) Express Chipset 2 xSATA 6.0 Gb/s ports (Gray) 4 xSATA 3.0 Gb/s Ports (Blue) Intel Rapid Storage Technology Support RAID 0,1,5,10 |
| LAN | Realtek RTL8112L Gigabit LAN PCIe Controller |
| Audio | Realtek ALC887 8-Channel High Definition Audio Codec - Support Multi-Streaming *Use the chassis with HD audio module in front panel to support 8-Channel audio output |
| USB | Chipset built-in - 2 x USB 3.0/2.0 ports (2 Ports at Back Panel) Chipset built-in - 12 x USB 2.0/1.1 ports (8 Ports at Mid-Board, 4 Ports at Back Panel) |
| ASUS Unique Features | ASUS Crash Free BIOS3 ASUS MyLogo 2 ASUS Q-Fan2 GPU Boost Mem OK! Anti-Surge |

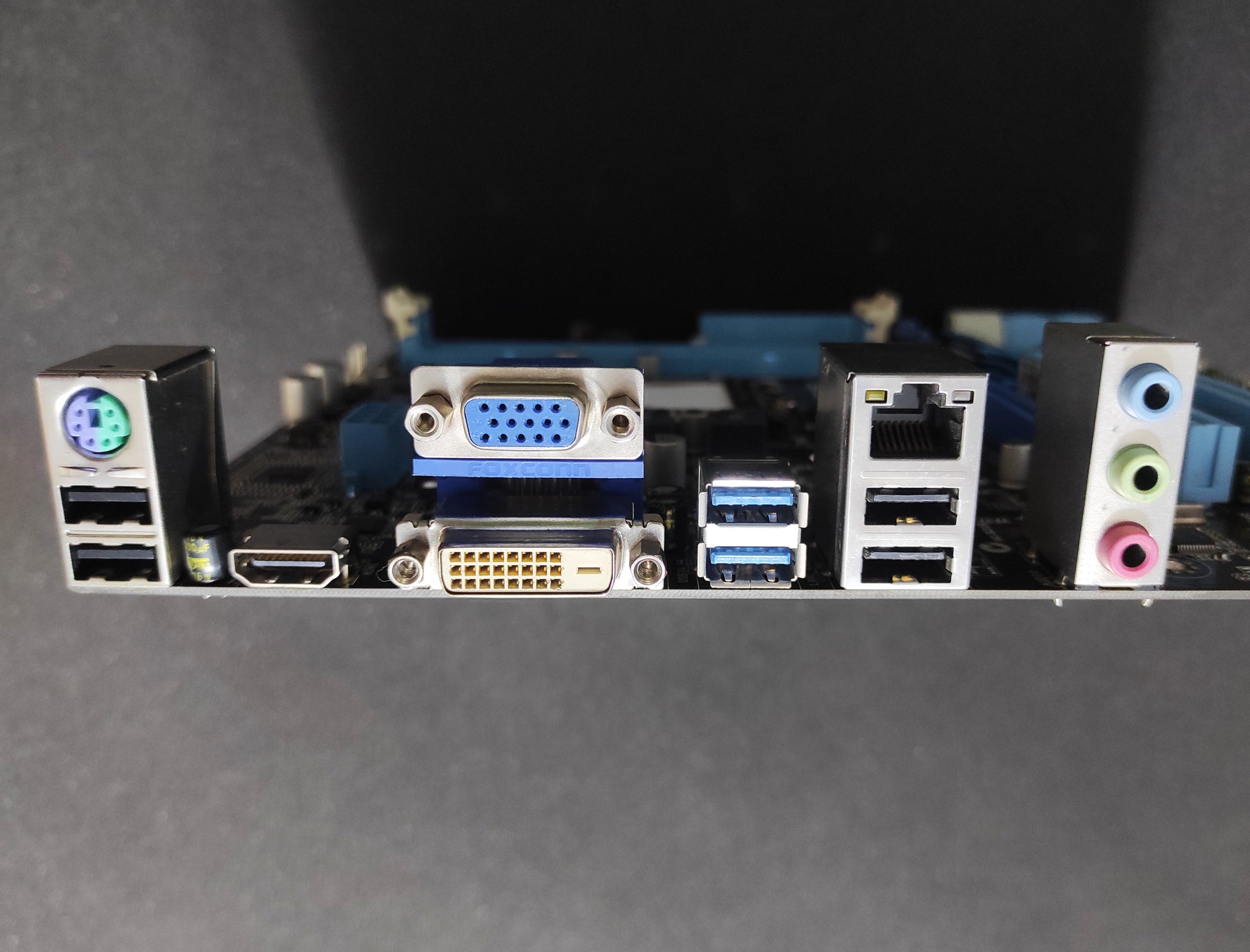

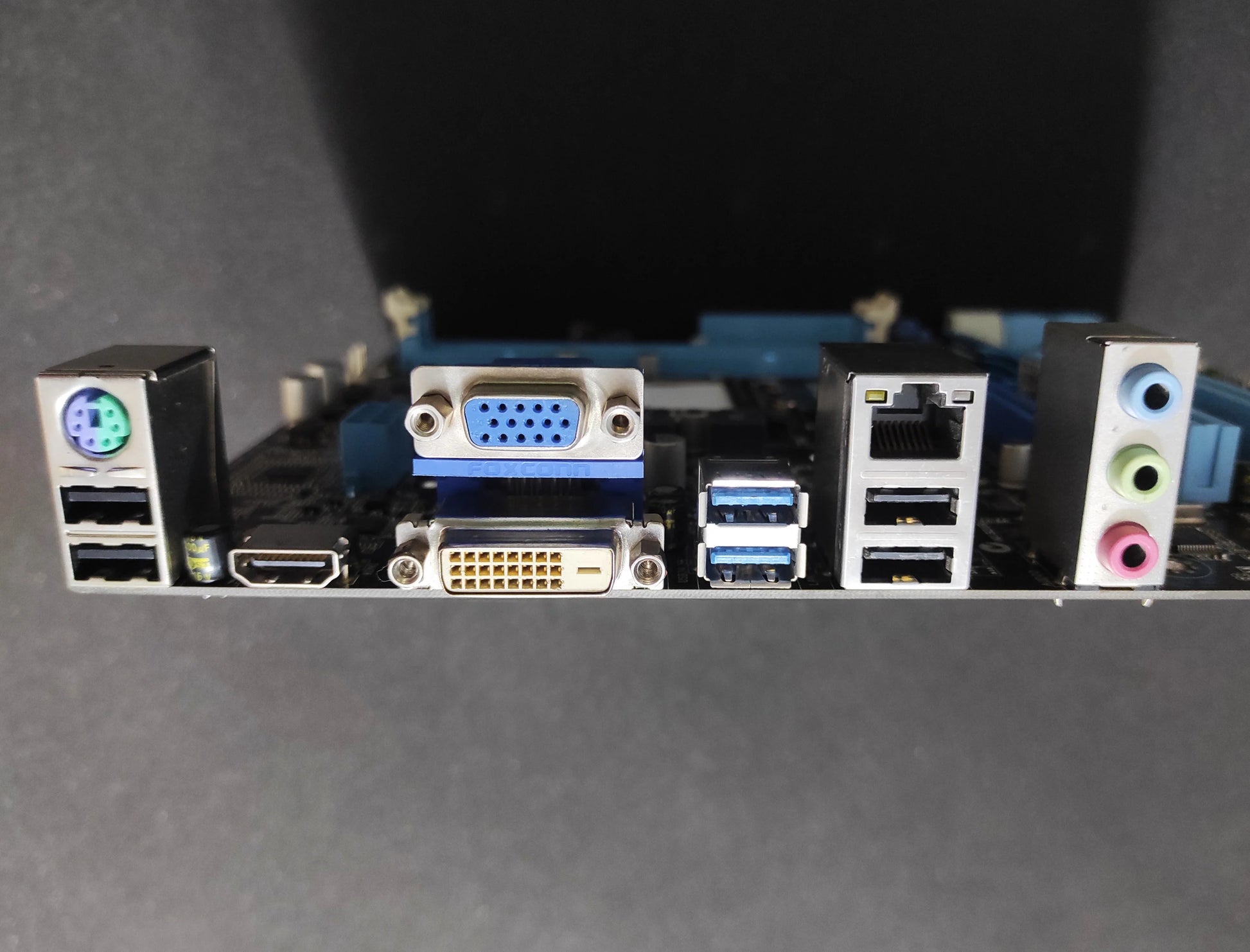

| Back Panel I/O Ports | 1 x DVI 1 x D-Sub 1 x HDMI 1 x PS/2 Mouse 1 x LAN(RJ45) port(s) 2 x USB 3.0/2.0 4 x USB 2.0/1.1 3 x Audio Jacks |
| Internal I/O Connectors | 4 x USB connectors support additional 8 USB Ports 6 x SATA connectors 1 x CPU Fan connector(s) 1 x Chassis Fan connector(s) 1 x LPT header (Optional) 1 x S/PDIF Out connector 1 x 24-Pin ATX Power connector 1 x 8-Pin ATX 12V Power connector 1 x Front panel audio connector 1 x COM header (Optional) 1 x System Panel connector 1 x TPM (Optional) |
| BIOS | 32 Mb Flash ROM , AMI BIOS, PnP, DMI v2.0, WfM2.0, SMBIOS v2.5, ACPI v2.0a |
| Manageability | WOL, PXE, PME Wake Up, WOR by Ring |
| Accessories | I/O Shield |
| Form Factor | uATX Form Factor 9.6 inch x 8.4 inch ( 24.4 cm x 21.3 cm ) |
DHL Express Shipping (2-3 Business Days delivery worldwide) available with "Expedited Shipping" option at Checkout!!
Share
PLEASE NOTE: Some products may have more than one piece available in quantity, so the one you receive might not be the exact one pictured. But images are not deceptive. The item you'll receive will be the same or better condition than pictured.
