Gigabyte GA-EP31-DS3L Socket 775 ATX Motherboard DDR2 PCIe x16 Intel P31 Express

Gigabyte GA-EP31-DS3L Socket 775 ATX Motherboard DDR2 PCIe x16 Intel P31 Express

€34,90 EUR
€34,90 EUR
Sale Sold out
Taxes included. Shipping calculated at checkout.

Gigabyte GA-EP31-DS3L

Socket 775 ATX Motherboard DDR2 PCIe x16

Intel P31 Express

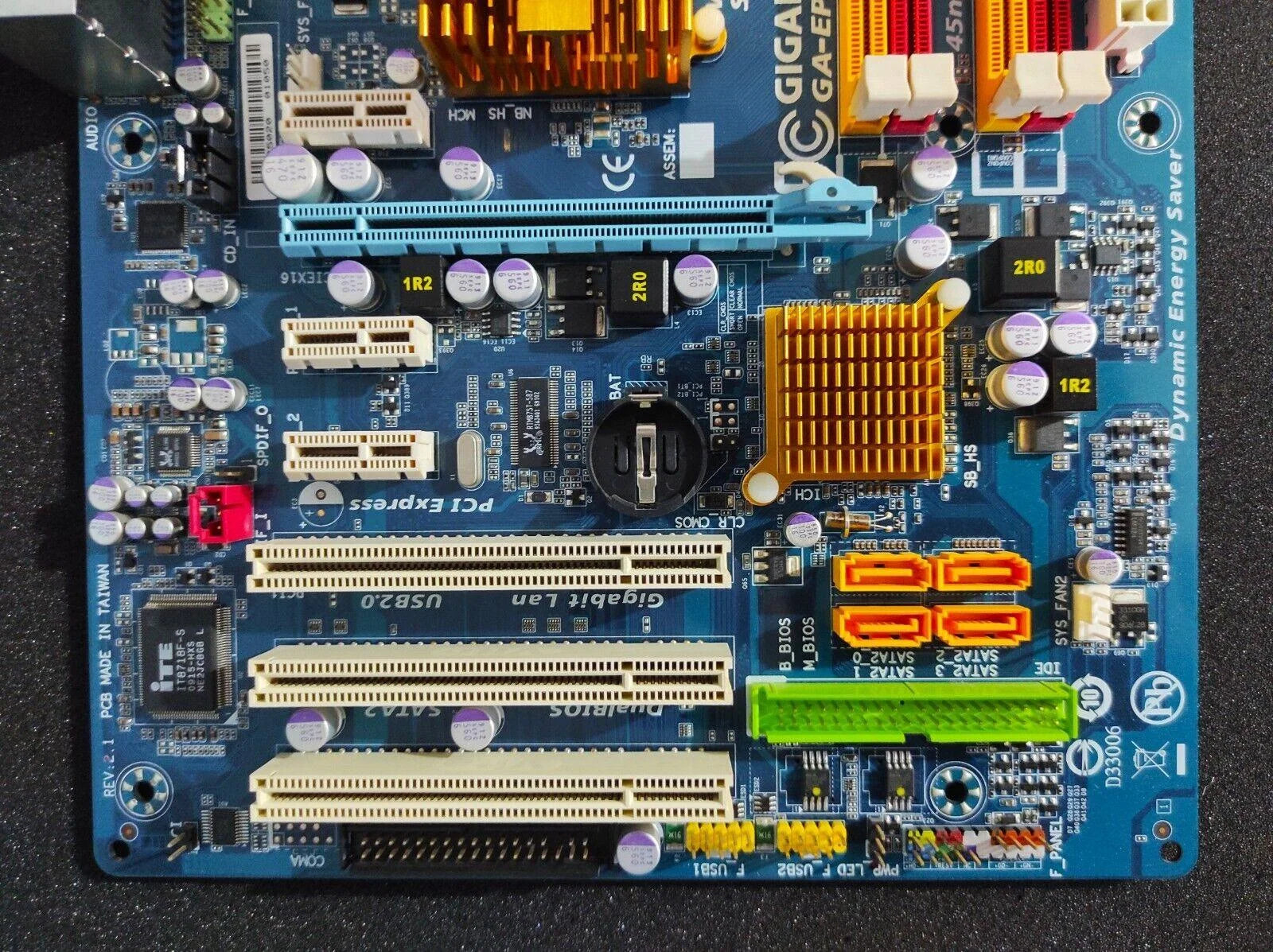

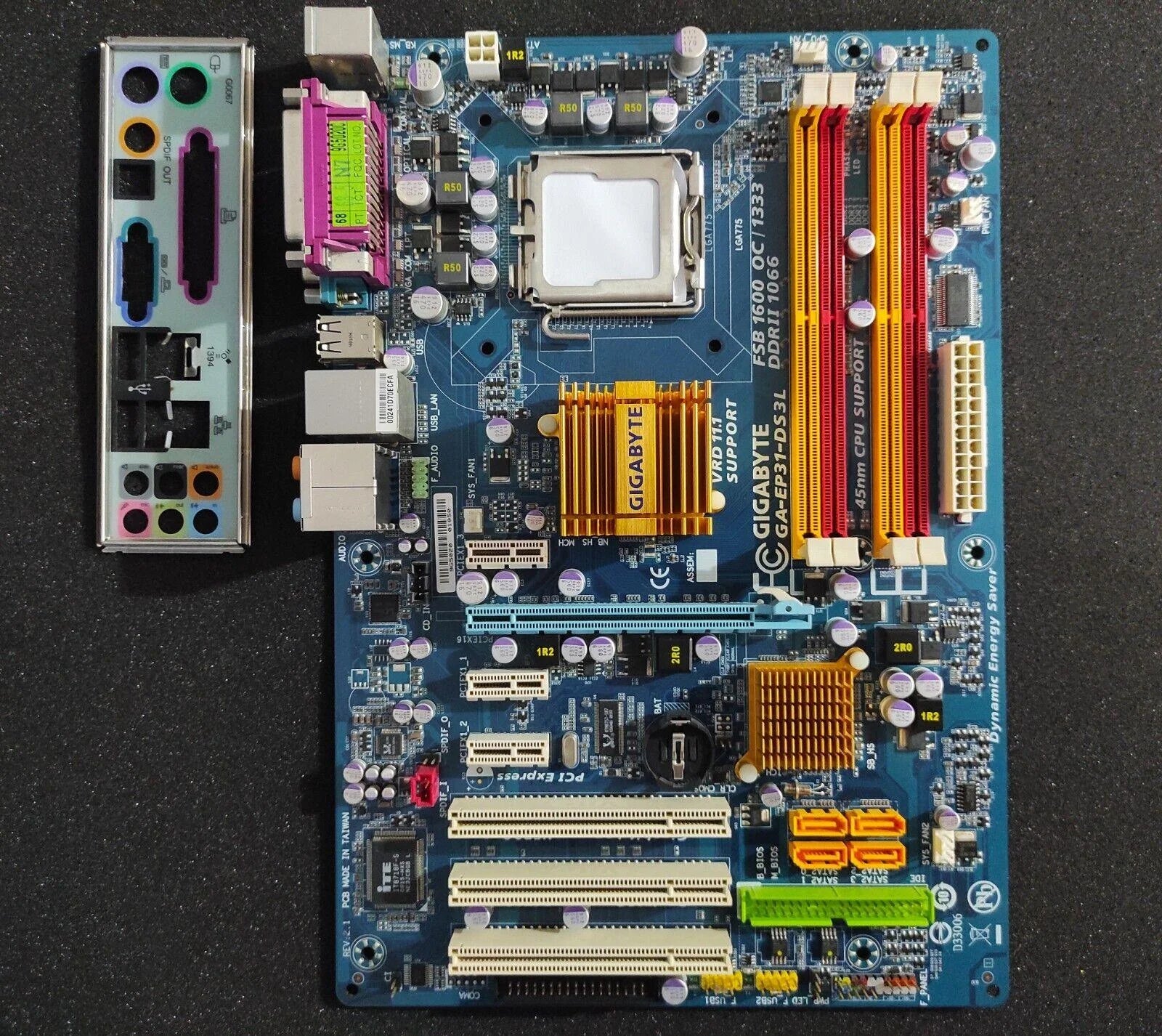

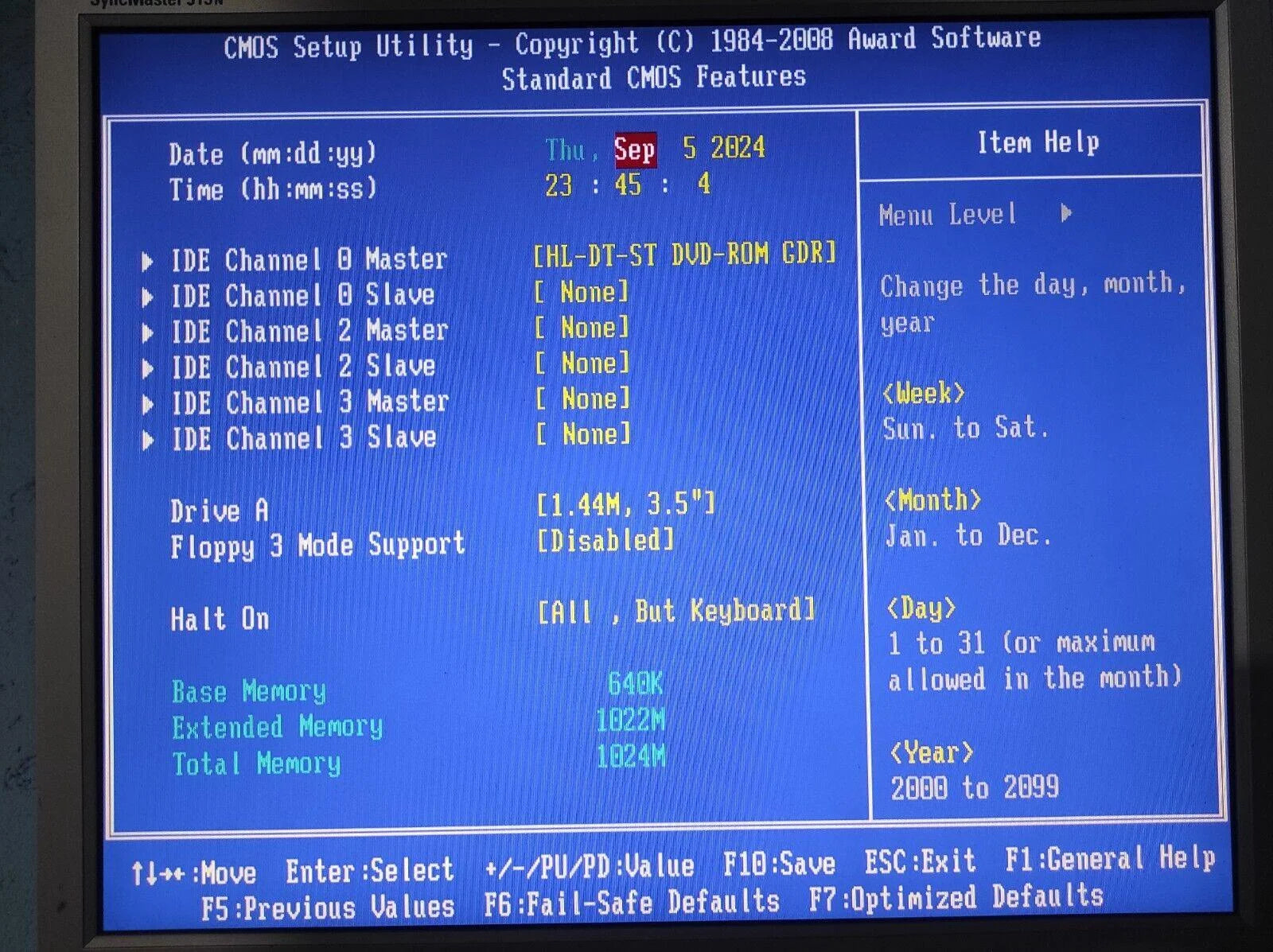

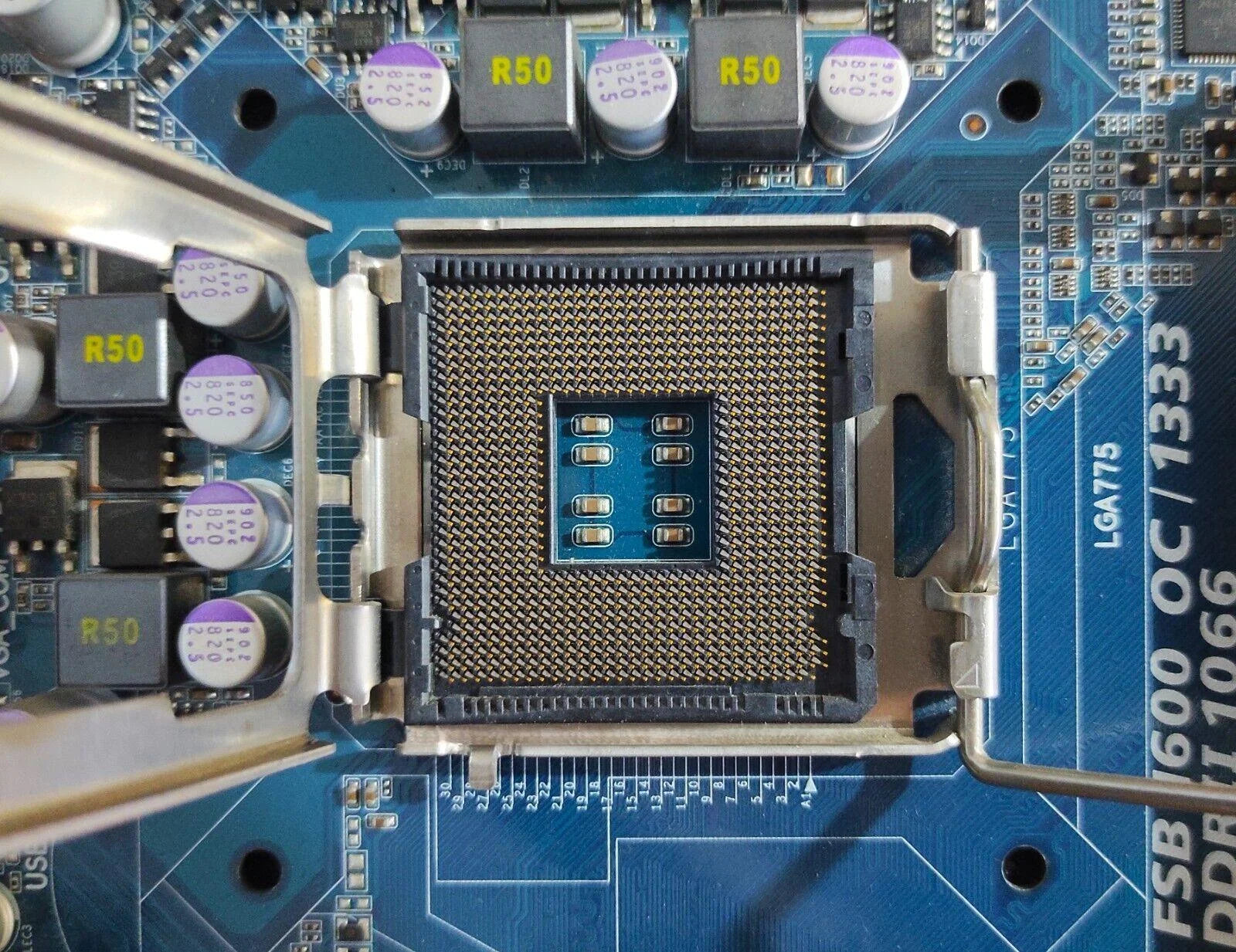

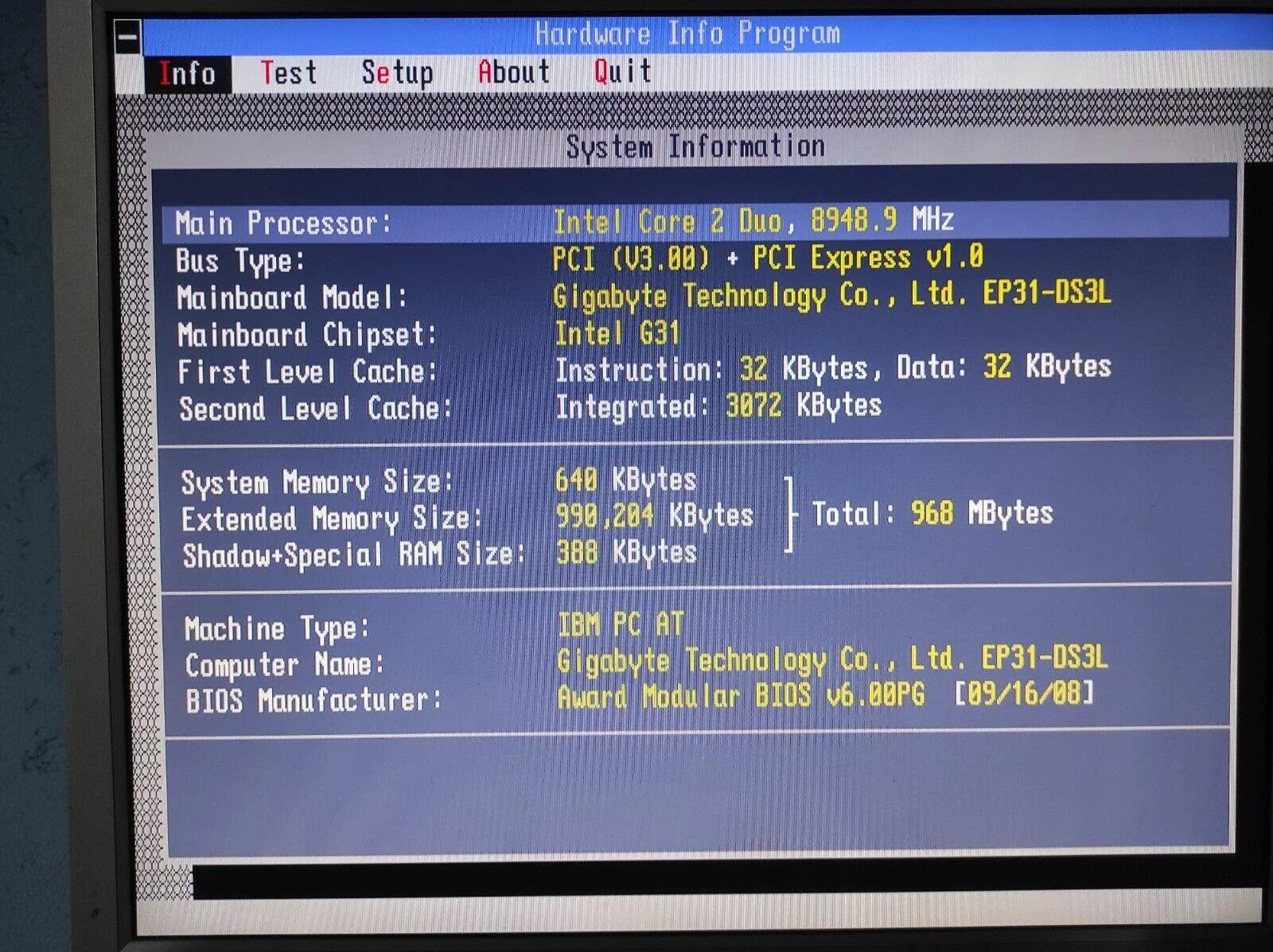

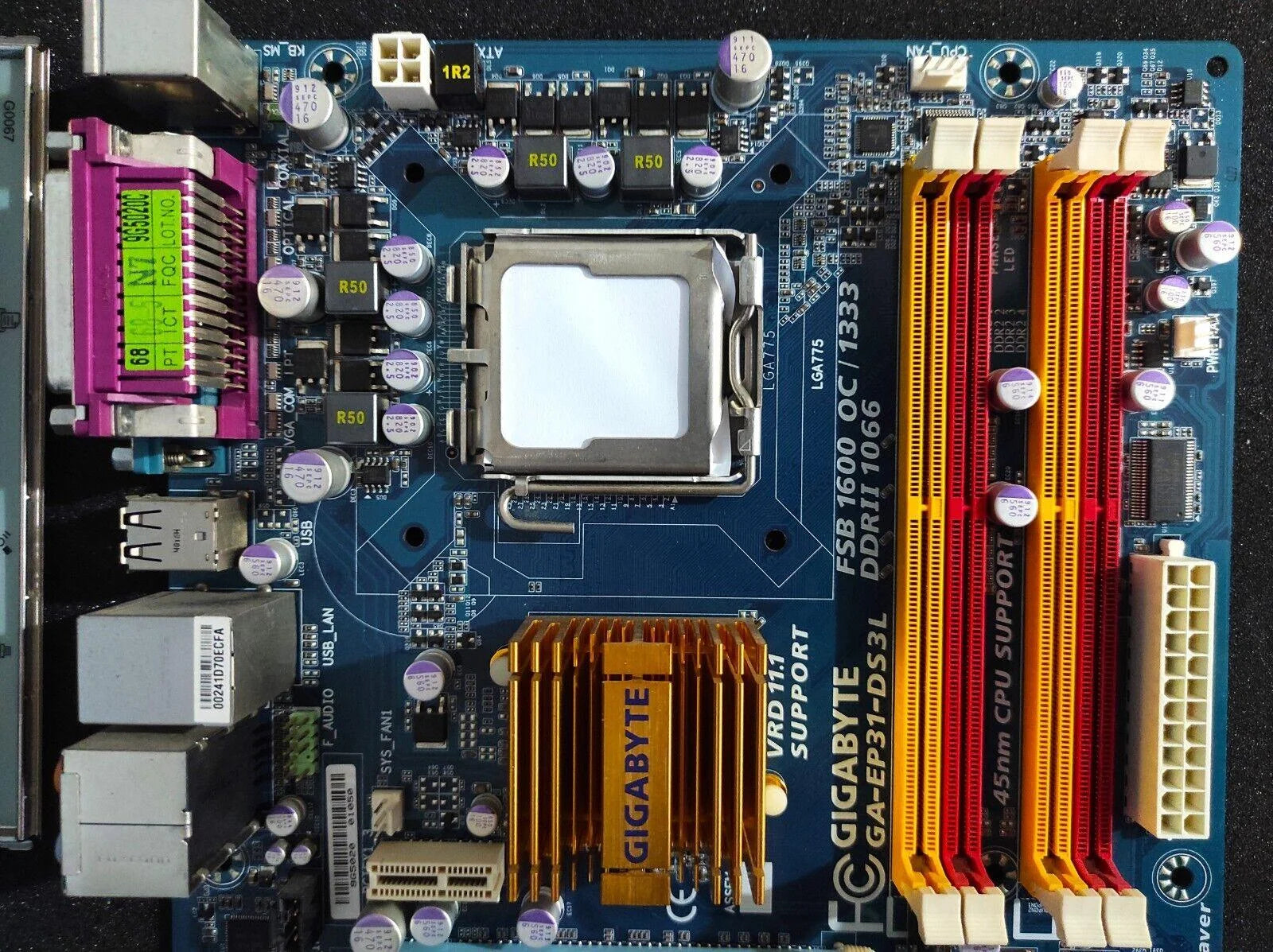

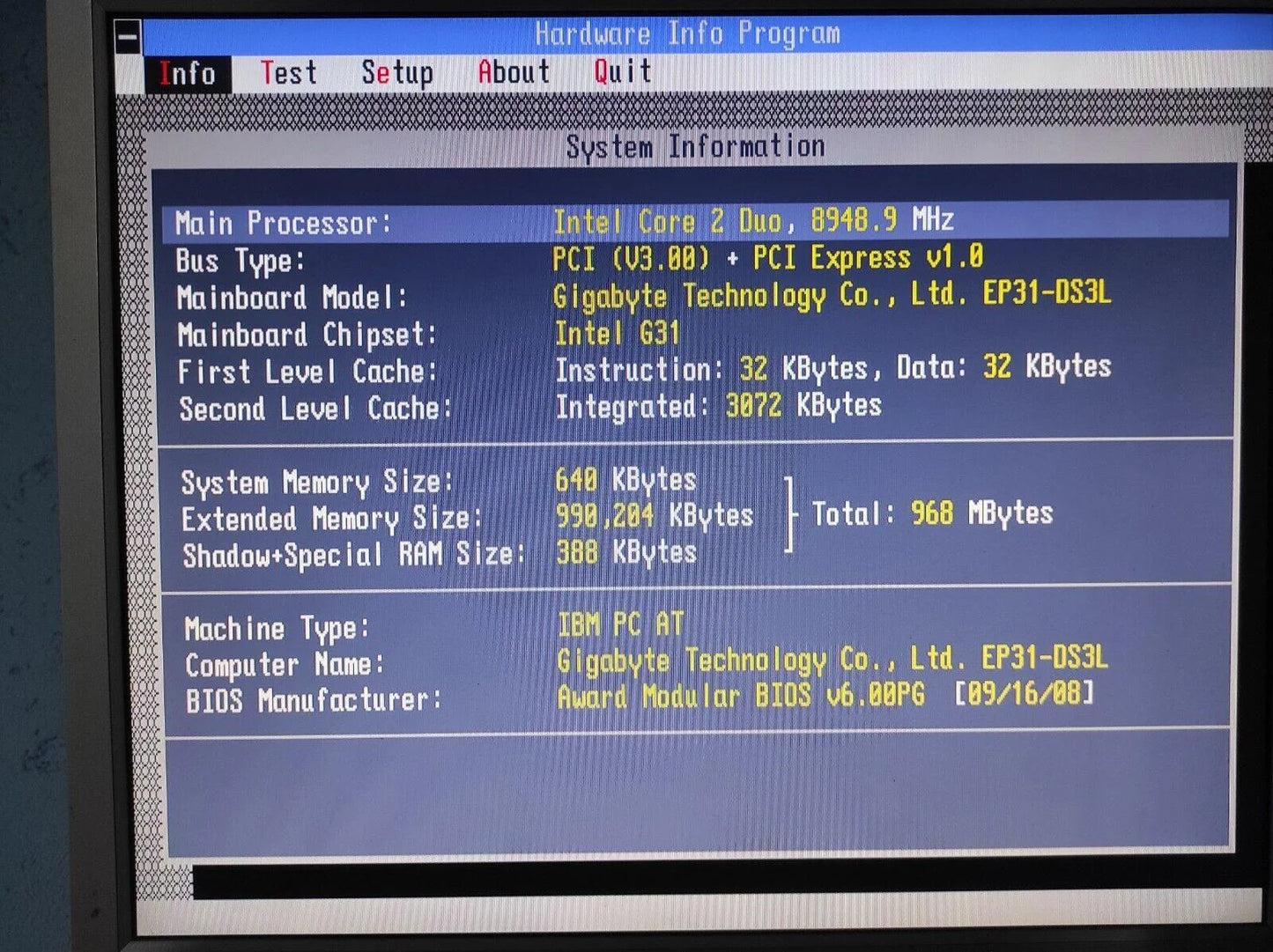

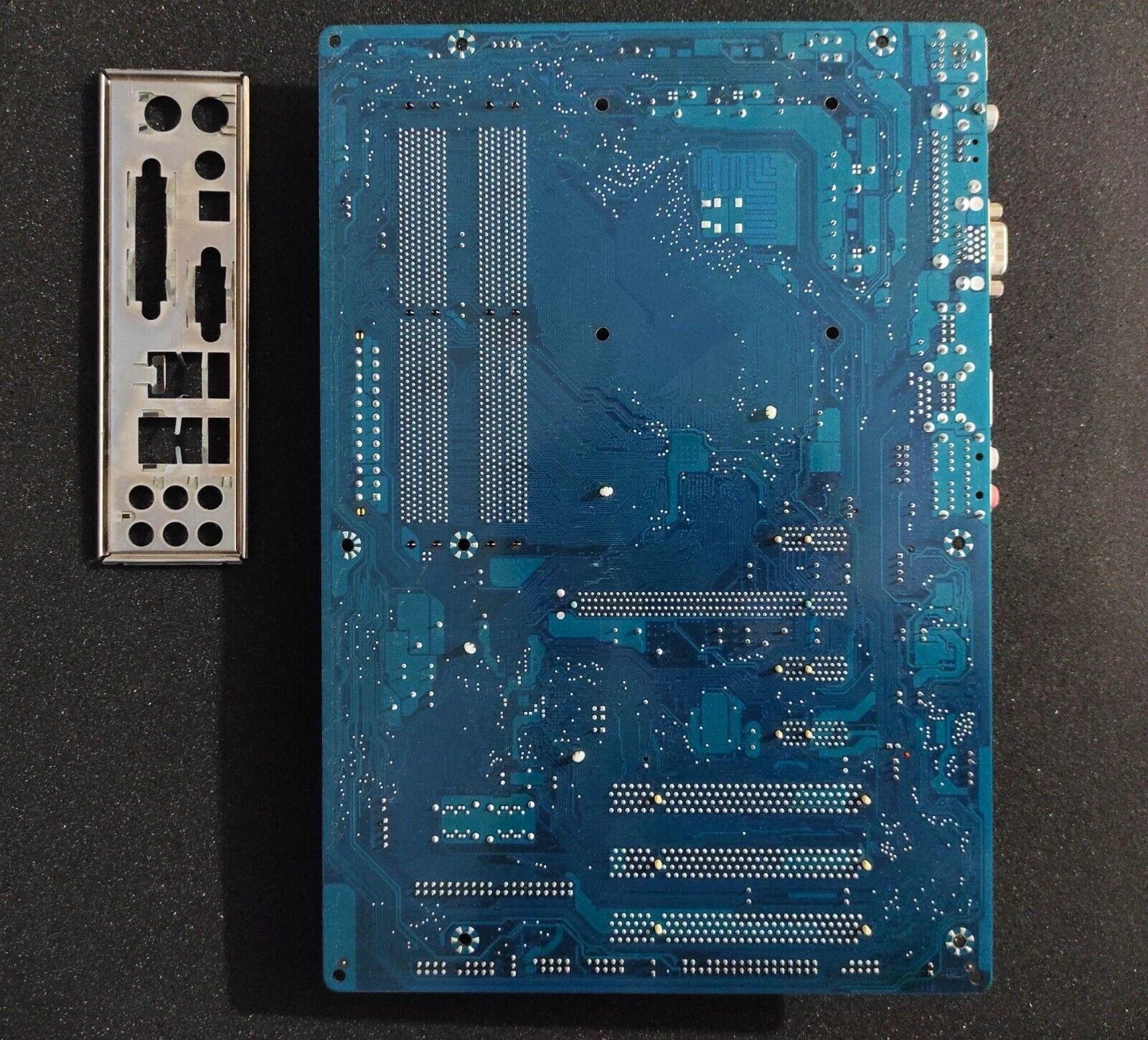

Used motherboard, tested working. In clean, excellent, pretty much like new condition! No bent pins. Check out the pics. I/O Shield included.

 Registered Airmail Shipping Worldwide!!
If you have any questions do not hesitate to ask!
Fast, Secure Shipping with Tracking Number!!

  • CPU
    1. Support for an Intel® Core™ 2 Extreme processor/ Intel® Core™ 2 Quad processor/ Intel® Core™ 2 Duo processor/ Intel Pentium processor Extreme Edition/ Intel® Pentium D processor/ Intel® Pentium 4 processor Extreme Edition/ Intel® Pentium 4 processor/ Intel® Celeron processor in the LGA 775 package
    2. Support for Intel Hyper-Threading Technology
    3. L2 cache varies with CPU
  • Front Side Bus
    1. 1600(O.C.)/1333/1066/800 MHz FSB
  • Chipset
    1. North Bridge: Intel® P31/G31 Express Chipset
    2. South Bridge: Intel® ICH7
  • Memory
    1. 4 x 1.8V DDR2 DIMM sockets supporting up to 4 GB of system memory
    2. Dual channel memory architecture
    3. Support for DDR2 1066/800/667 MHz memory modules
    Because of chipset limitations
    *To avoid the system being unable to start or the memory being incorrectly detected, if only one memory module is to be installed, we suggest that you install it on the DDR2_1 or DDR2_3 socket.
    *To install two memory modules, we suggest that you install them on the DDR2_1 and DDR2_3 sockets, when the DDR2_2 or DDR2_4 socket is populated with a DDR2 1066 MHz memory module, the memory speed will be downgraded to 800 MHz).
    *when using FSB 1333 MHz CPU with populating all DIMM sockets, memory frequency will be reduced from the original, and system instability or incorrect detection of memory module may be occur.
    (Please refer "Memory Support List" for memory support information)
  • Audio
    1. Realtek ALC888 codec
    2. High Definition Audio
    3. 2/4/5.1/7.1-channel
    4. Support for S/PDIF In/Out
    5. Support for CD In
  • LAN
    1. RTL 8111C chip (10/100/1000 Mbit)
  • Expansion Slots
    1. 1 x PCI Express x16 slot
    2. 3 x PCI Express x1 slots
    3. 3 x PCI slots
  • Storage Interface
    South Bridge:
    1. 1 x IDE connector supporting ATA-100/66/33 and up to 2 IDE devices
    2. 4 x SATA 3Gb/s connectors supporting up to 4 SATA 3Gb/s devices
    iTE IT8718 chip:
    1. 1 x floppy disk drive connector supporting up to 1 floppy disk drive
  • USB
    1. Integrated in the South Bridge
    2. Up to 8 USB 2.0/1.1 ports (4 on the back panel, 4 via the USB brackets connected to the internal USB headers)
  • Internal I/O Connectors
    1. 1 x 24-pin ATX main power connector
    2. 1 x 4-pin ATX 12V power connector
    3. 1 x floppy disk drive connector
    4. 1 x IDE connector
    5. 4 x SATA 3Gb/s connectors
    6. 1 x CPU fan header
    7. 2 x system fan headers
    8. 1 x power fan header
    9. 1 x front panel header
    10. 1 x front panel audio header
    11. 1 x CD In connector
    12. 1 x S/PDIF In header
    13. 1 x S/PDIF Out header
    14. 2 x USB 2.0/1.1 headers
    15. 1 x chassis intrusion header
    16. 1 x power LED header

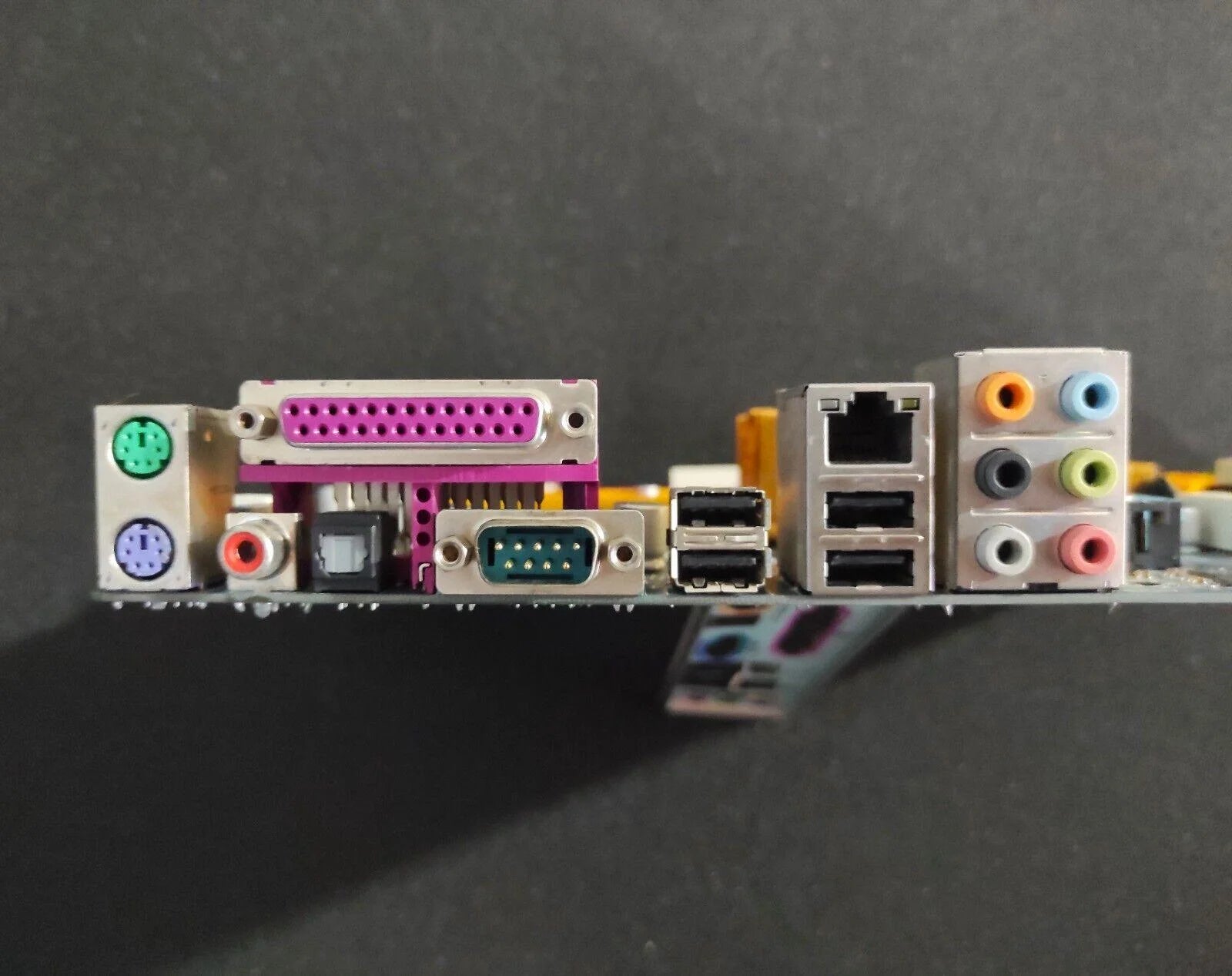

  • Back Panel Connectors
    1. 1 x PS/2 keyboard port Connectors
    2. 1 x PS/2 mouse port
    3. 1 x parallel port
    4. 1 x serial port
    5. 1 x coaxial S/PDIF Out connector
    6. 1 x optical S/PDIF Out connector
    7. 4 x USB 2.0/1.1 ports
    8. 1 x RJ-45 port
    9. 6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/Side Speaker Out/Line In/Line Out/Microphone)
  • I/O Controller
    1. iTE IT8718 chip
  • H/W Monitoring
    1. System voltage detection
    2. CPU/System temperature detection
    3. CPU/System/Power fan speed detection
    4. CPU overheating warning
    5. CPU/System/Power fan fail warning
    6. CPU fan speed control
  • BIOS
    1. 2 x 8 Mbit flash
    2. Use of licensed AWARD BIOS
    3. Support for DualBIOS™
    4. PnP 1.0a, DMI 2.0, SM BIOS 2.3, ACPI 1.0b
  • Unique Features
    1. Support for @BIOS
    2. Support for Download Center
    3. Support for Q-Flash
    4. Support for EasyTune (Note 3)
    5. Support for Xpress Install
    6. Support for Xpress Recovery2
    7. Support for Dual BIOS
    8. Support for Dynamic Energy Saver Advanced
    (Note 3)Available functions in Easytune may differ by motherboard model.



  • Form Factor
    1. ATX Form Factor; 30.5cm x 21.0cm
