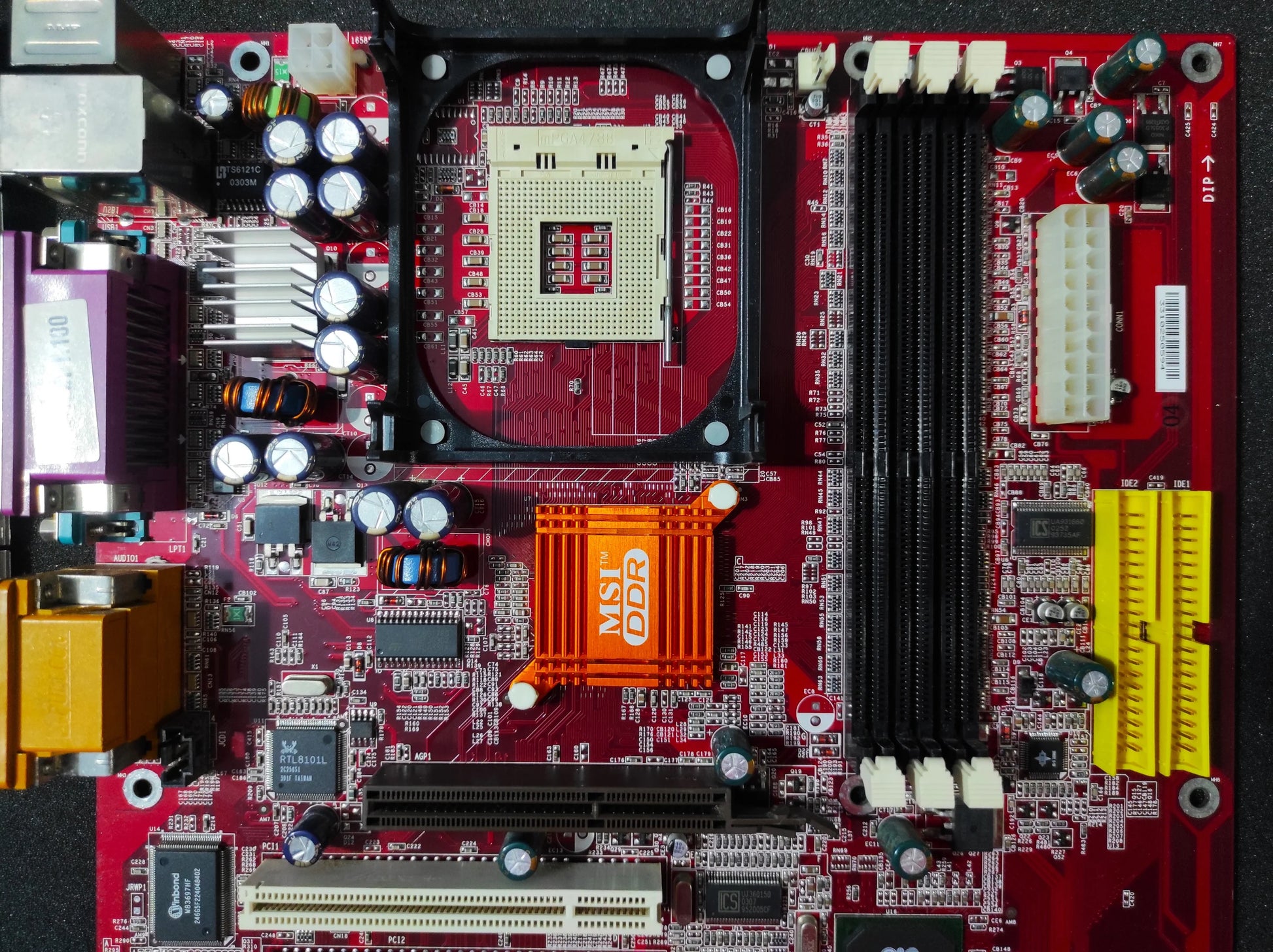

MSI 648 Max MS-6585F1 Socket 478 ATX DDR Motherboard AGP PCI SiS 648 Chipset
MSI 648 Max MS-6585F1 Socket 478 ATX DDR Motherboard AGP PCI SiS 648 Chipset
Couldn't load pickup availability

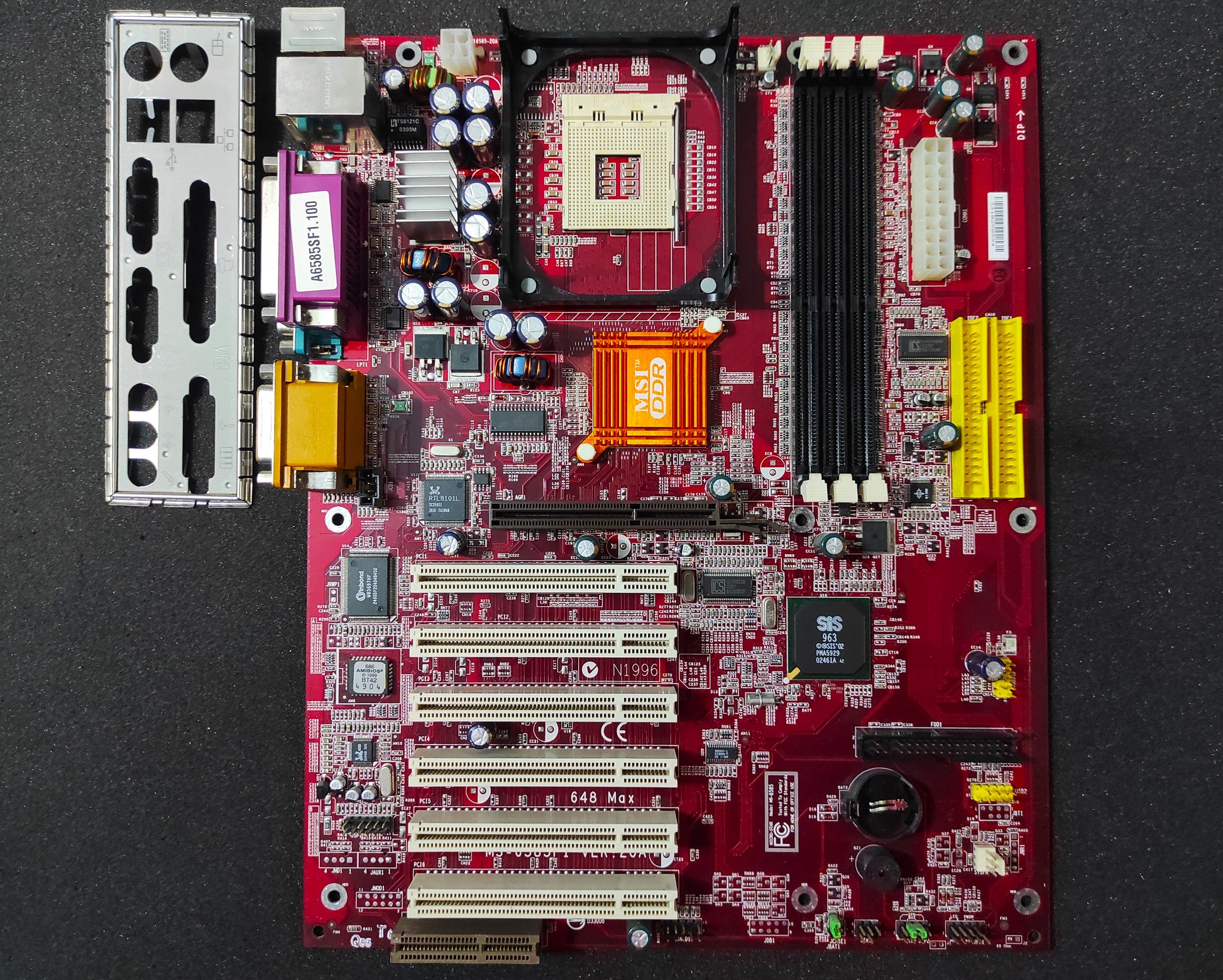

MSI 648 Max MS-6585F1
Socket 478 ATX DDR Motherboard AGP PCI
SiS 648 Chipset
CPU
Socket 478 for P4 processors (Willimate 478 and Northwood 478) with 400/533 MHz (100/133MHz QDIR).Core frequency from 1.3 GHz to 2.8 GHz and up.
Chipset
SiS®648 (839 pin BGA)- Supports Intel® Pentium® 4 processors with data transfer rate up to 533MHz.
- Supports 64-bit high performance DDR333/DDR266 memory controller.
- Supports AGP 8X/4X interface at 0.8v or 4x at 1.5v with fast write transaction.
- Supports bi-directional 16-bit data bus with 1GHz bandwidth MuTIOL.SiS®963 (371 pin BGA)
- Integrated Direct Sound AC97 audio.
- Dual channel Ultra DMA 33/66/100/133 master mode EIDE controller.
- ACPI & PC2001 compliant enhanced power management.
- Integrated USB 2.0 controller.
Main Memory
Supports six memory banks using three 184-pin DDR DIMMs.
Supports up to 3GB memory size without ECC (Error-Checking & CorrectingCode).
Supports DDR333/DDR266 SDRAM.

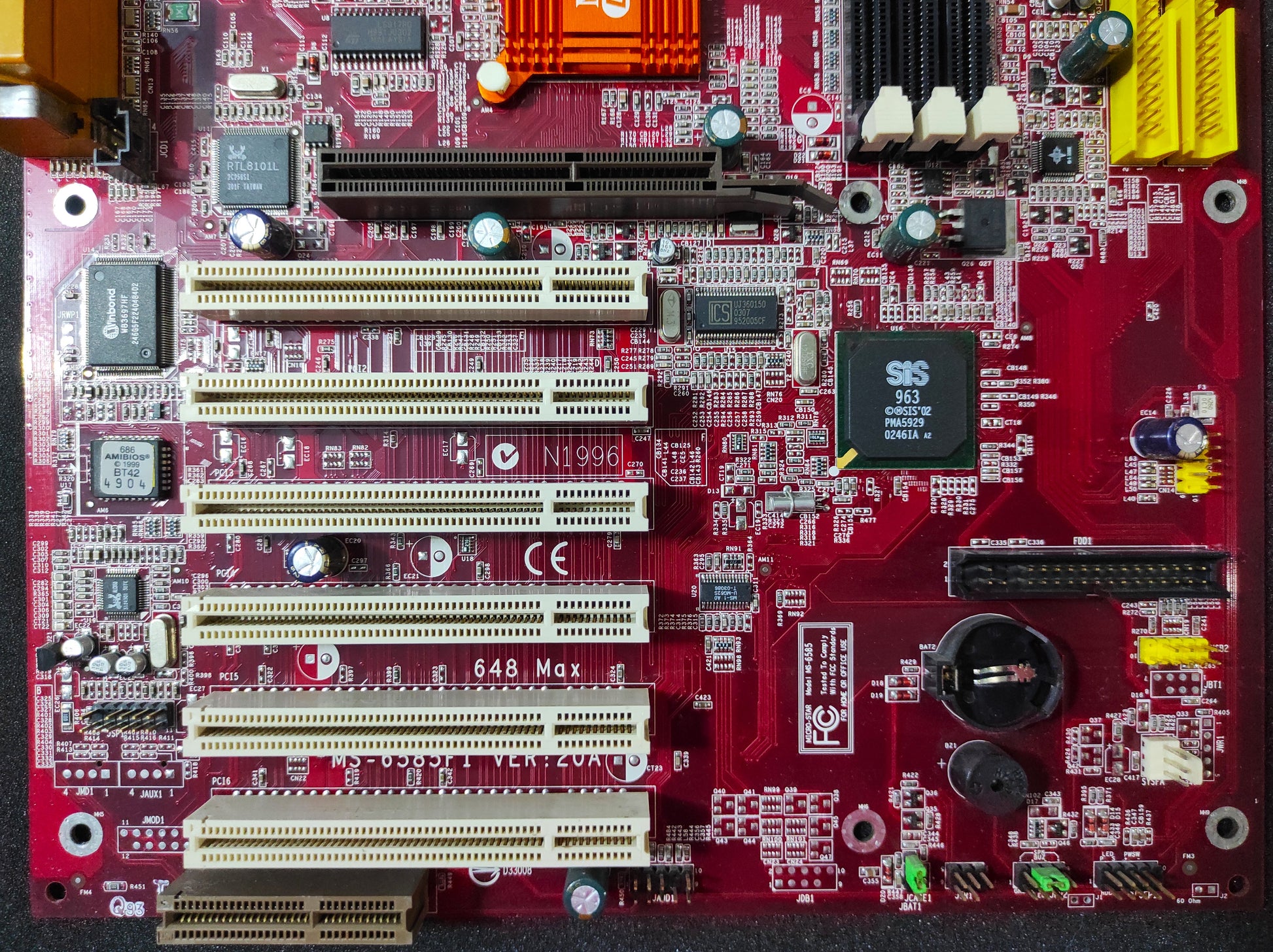

Slots
One 4x/8x AGP (AcceleratedGraphicsPort) slot.
Six 32-bit master PCI bus slots (support 3.3v/5v PCI bus interface).
One CNR (Communication Network Riser) slot.
On-Board IDE
An IDE controller on the SiS®963 chipset provides IDE HDD/CD-ROM with PIO, Bus Master and Ultra DMA133/100/66/33 operation modes.
Can connect up to four IDE devices.

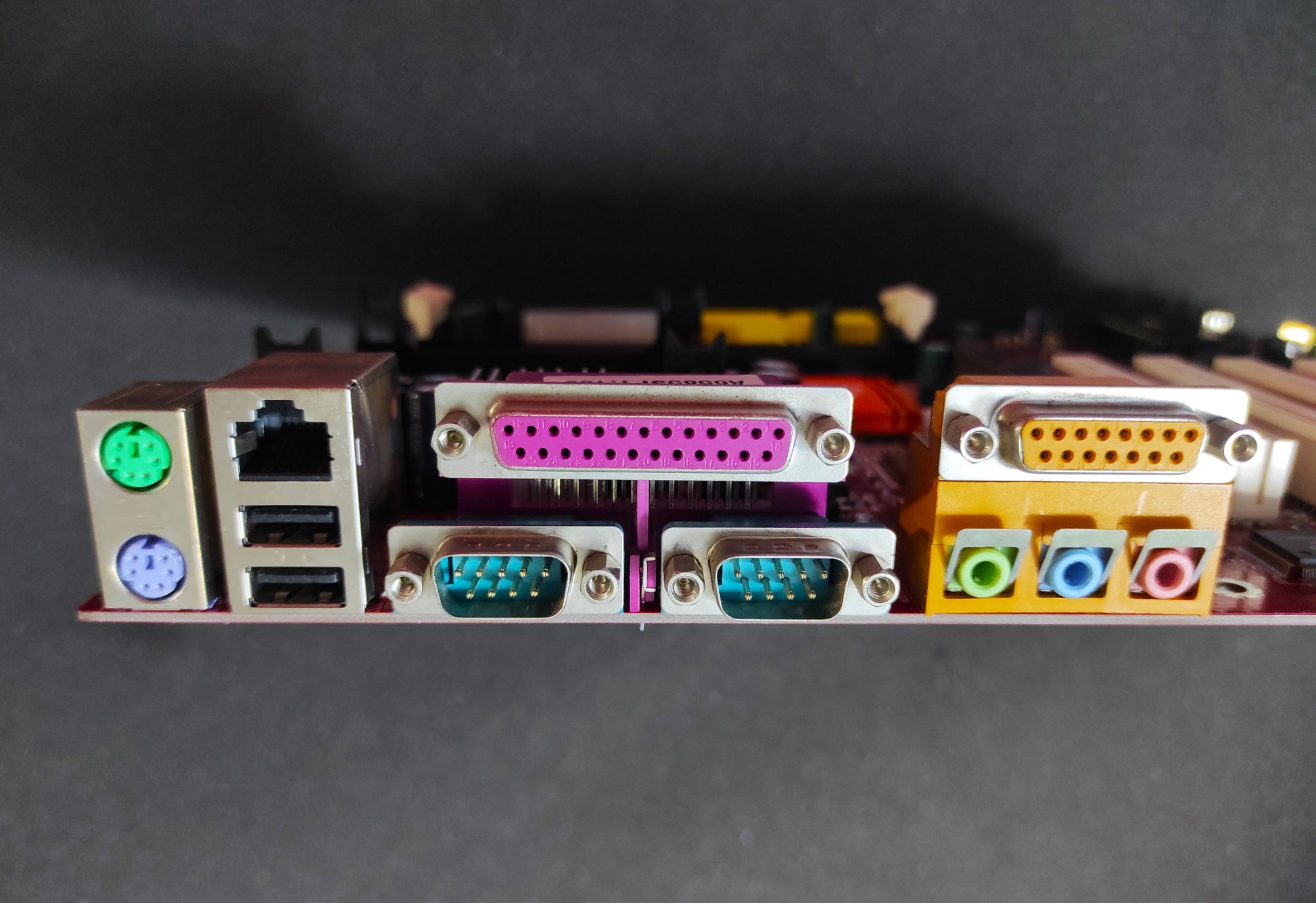

On-Board Peripheral
sOn-Board Peripherals include:
- 1 floppy port supports 2 FDDs with 360K, 720K, 1.2M, 1.44M and2.88Mbytes
- 2 serial ports (COM A + COM B)
- 1 parallel port supports SPP/EPP/ECP mode
- 1 IrDA connector for SIR/ASKIR/HPSIR
- 1 RJ-45 LAN jack
- 1 audio/game port
- 1 S-Bracket pin header
- 6 USB 2.0 ports (Rear * 4/ Front * 2)
Audio
AC’97 link controller integrated in SiS® 963.
RealTek ALC650 6-channel audio.
- Compliance with AC97 v2.2 Spec.
- Meets PC2001 audio performance requirement.
- Can support SPDIF Out via S-Bracket only.
LAN
RealTek RTL8101L LAN controller.
BIOS

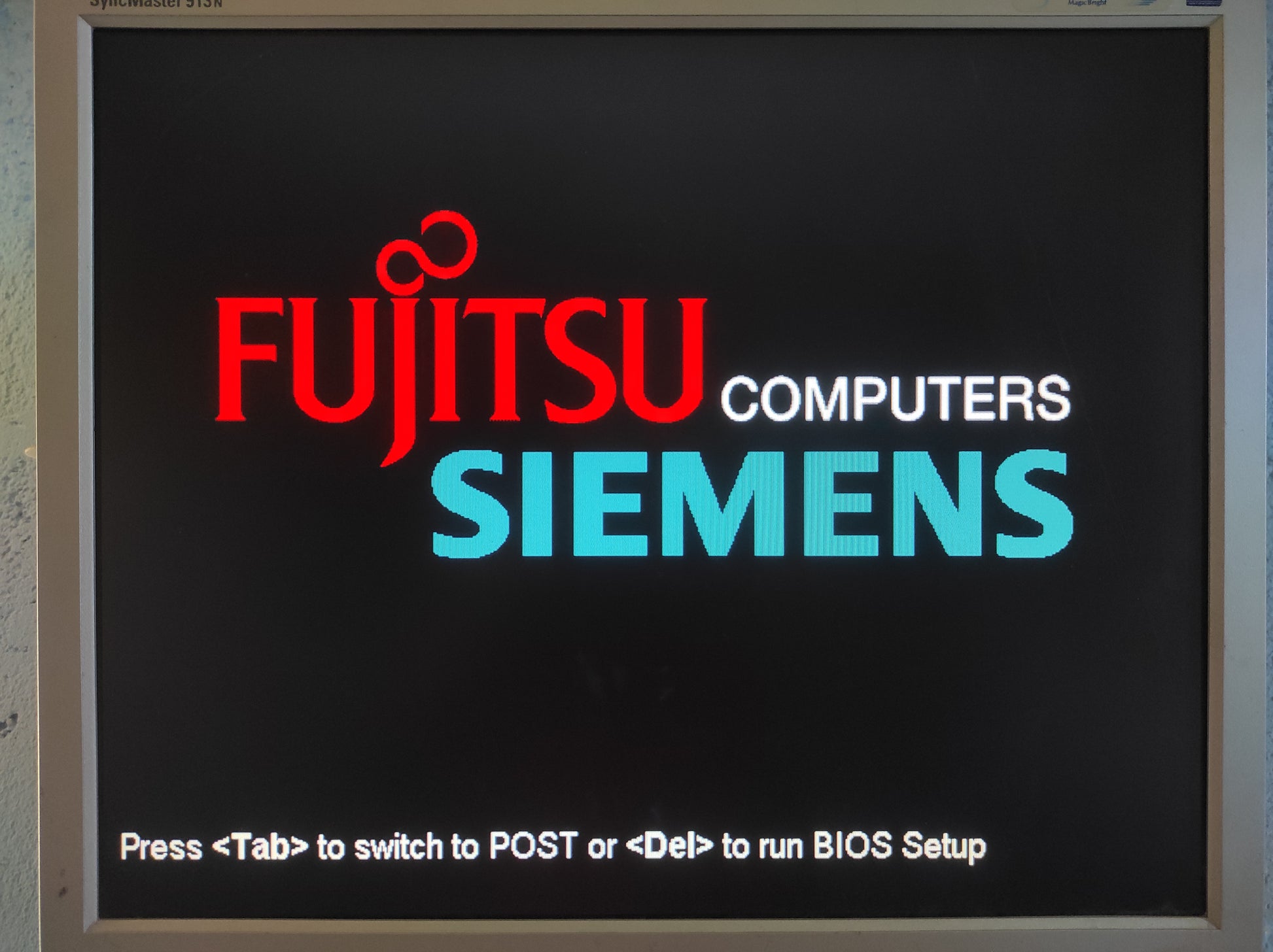

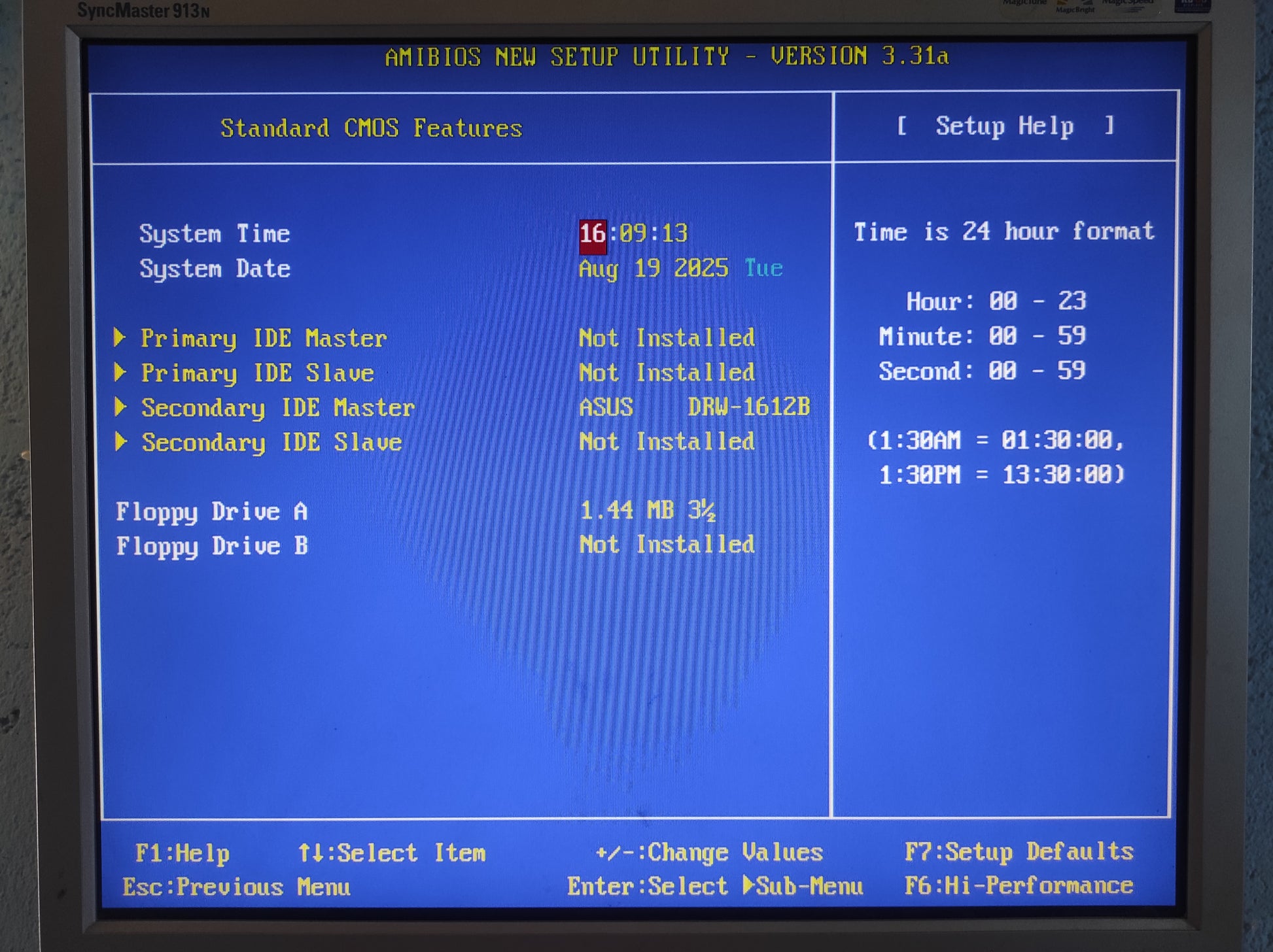

The mainboard BIOS provides “Plug & Play” BIOS which detects the peripheraldevices and expansion cards of the board automatically.The mainboard provides a Desktop Management Interface (DMI) functionwhich records your mainboard specifications.
Dimension
ATX Form Factor: 30.5cm x 24.5cm.
