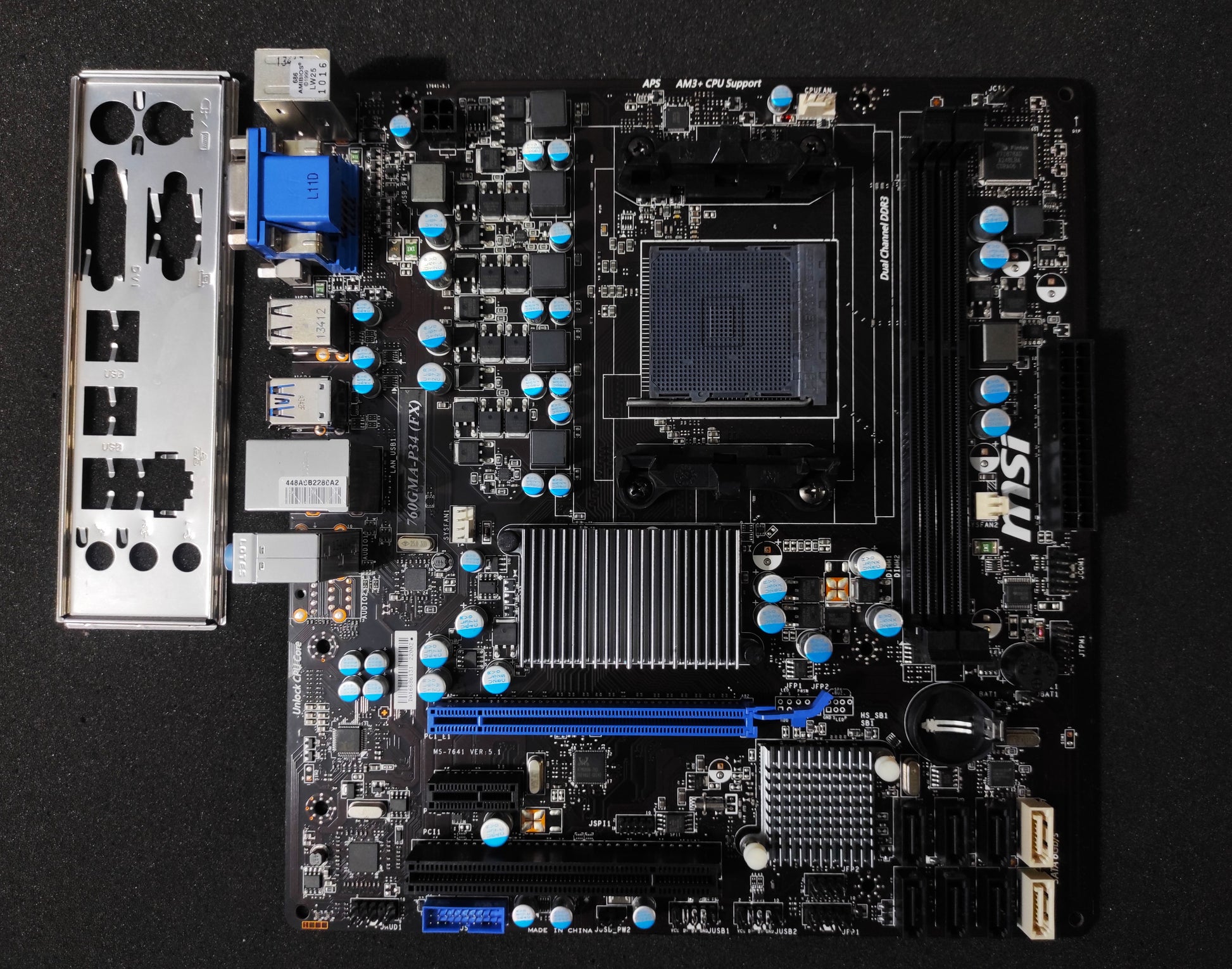

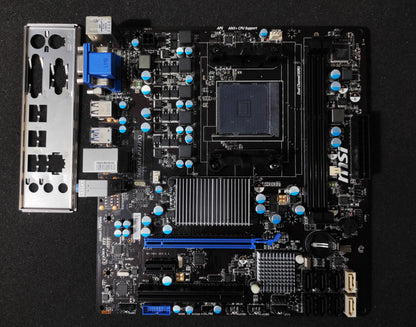

MSI 760GMA-P34 (FX) MS-7641 Socket AM3+ mATX AMD DDR3 Motherboard AMD 760G Chipset

MSI 760GMA-P34 (FX) MS-7641 Socket AM3+ mATX AMD DDR3 Motherboard AMD 760G Chipset

€49,90 EUR
€49,90 EUR
Sale Sold out
Taxes included. Shipping calculated at checkout.

MSI NF750-G55 MS-7578

Socket AM3 ATX AMD DDR3 PCIe Motherboard

nForce 750a SLI Chipset

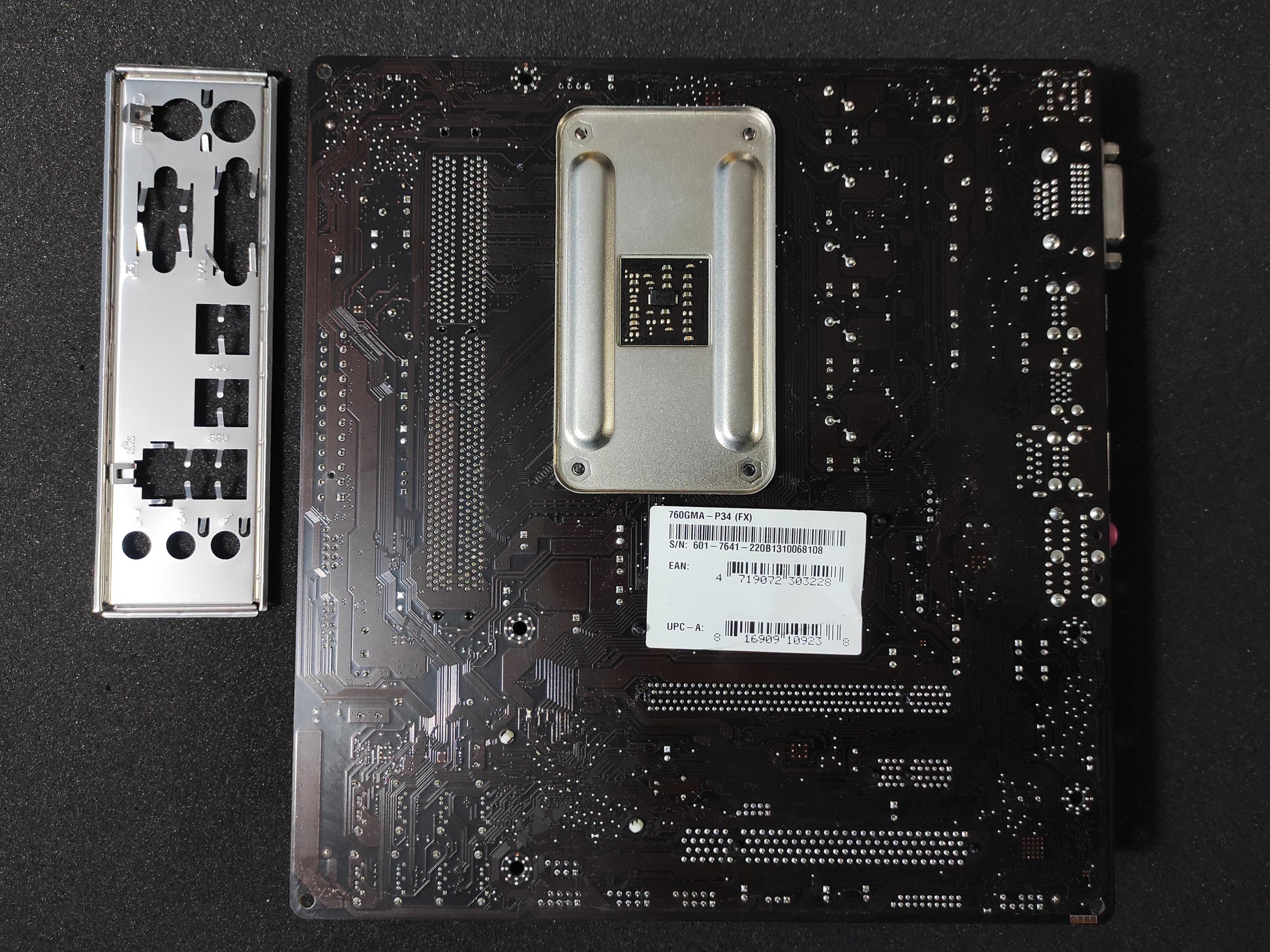

Used motherboard, tested working and in excellent condition. I/O Shield included!

CPU
• 64bit AMD®FX, Phenom II X6/X4/X3/X2, Athlon II X4/X3/X2 and Sempron CPU.
Please refer to CPU Support for compatible CPU; the above description is for reference only.
Hyper Transport Bus

• HyperTransport 3.0 supporting speed up to 5200MT/s
Chipset

• North Bridge: AMD® 760G and
• South Bridge: AMD® SB710 Chipset

Main Memory
• Supports two unbuffered DIMM of 1.5 Volt DDR3 1066/1333/1600/1866(OC) SDRAM, 16GB Max
• Support Dual-Channel mode

Slots
• 1 PCI Express 2.0 x16 slot
• 1 PCI EXpress x1 slot
• 1 PCI slot, support 3.3V/ 5V PCI bus Interface.

On-Board SATA
• 2 SATA 6Gb/s (7~8) ports by ASMEDIA 1061
- Supports storage and data transfers at up to 6Gb/s

• 6 SATA 3Gb/s (1~6) ports by AMD® SB710
- Supports storage and data transfers at up to 3Gb/s


RAID Function
- SATA 1~6 support RAID 0, 1, 10 or JBOD mode

MSI Reminds You...
• The RAID setup floppy disk is optional depending on the districts. You can download the files from the website to make the setup disk.

Audio
• Chipset integrated by Realtek® ALC887
- Flexible 7.1-channel audio with jack sensing
- Compliant with Azalia 1.0 Spec

LAN
• Realtek PCI-E GbLAN controller RTL8111E
- Supports 10Mb/s, 100Mb/s, 1000Mb/s
- Compliance with PCI-Express Bus specification v1.0a

Internal I/O Connectors
- 1 x ATX 24-pin power connector
- 1 x ATX 4-pin 12V CPU power connector
- CPU x 1 / System x 2 FAN connectors
- 1 x Front panel audio connector
- 1 x Front panel connector
- 1 x Chassis intrusion switch connector
- 2 x USB 2.0 connectors
- 1 x USB 3.0 connectors
- 6 x Serial ATA II connectors
- 2 x Serial ATA III connectors
- 1 x Serial port connector
- 1 x Clear CMOS jumper
- 1 x TPM module connector

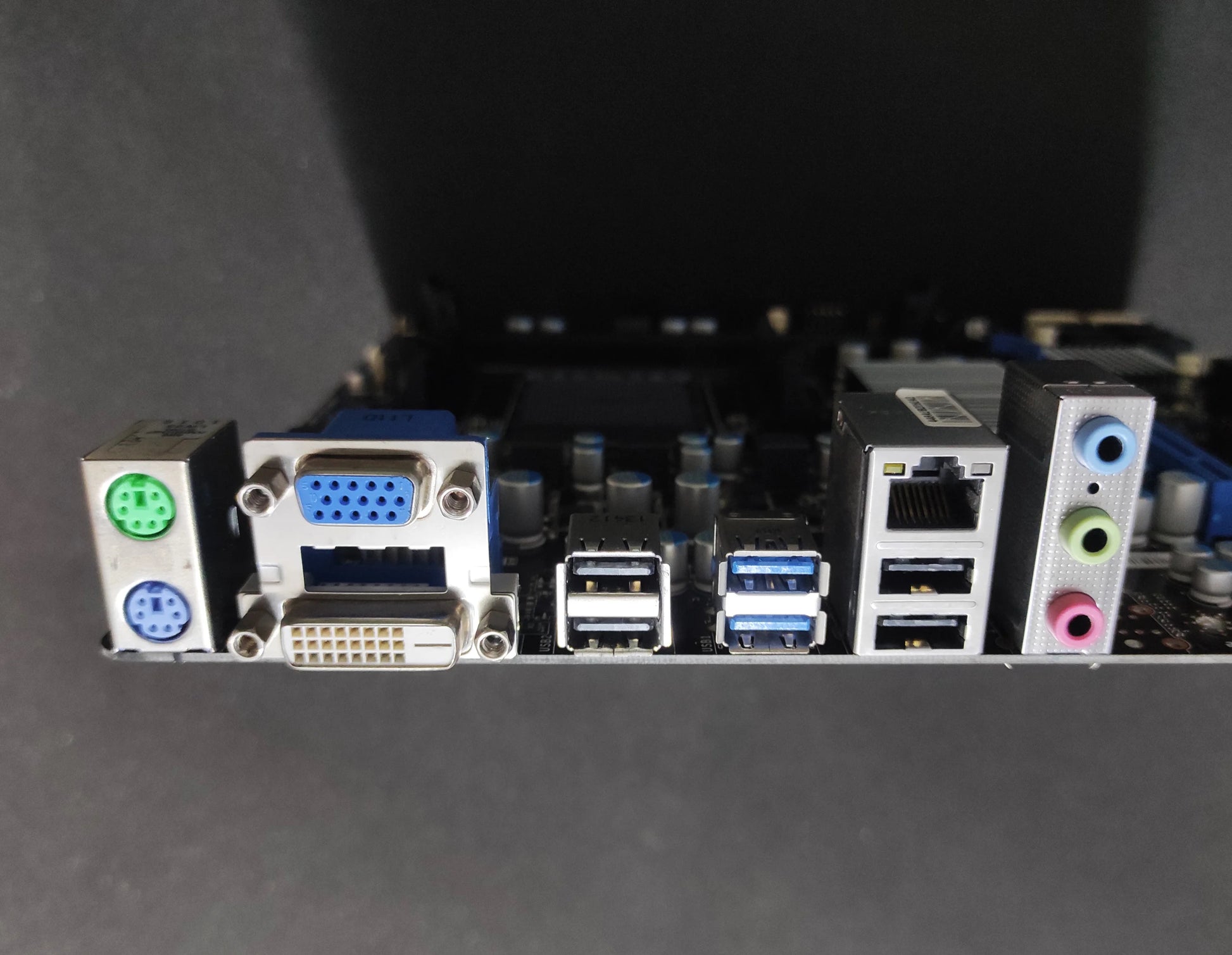

Back Panel I/O Ports
- 1 x PS/2 mouse port
- 1 x PS/2 keyboard port
- 4 x USB 2.0 ports
- 2 x USB 3.0 ports
- 1 x D-sub port
- 1 x DVI-D port
- 1 x RJ45 LAN jack
- 1 x 3 in 1 audio jack

Dimension
• 243.8cm(L) x 22.8cm(W) Micro-ATX Form Factor
Mounting

• 6 mounting holes.
