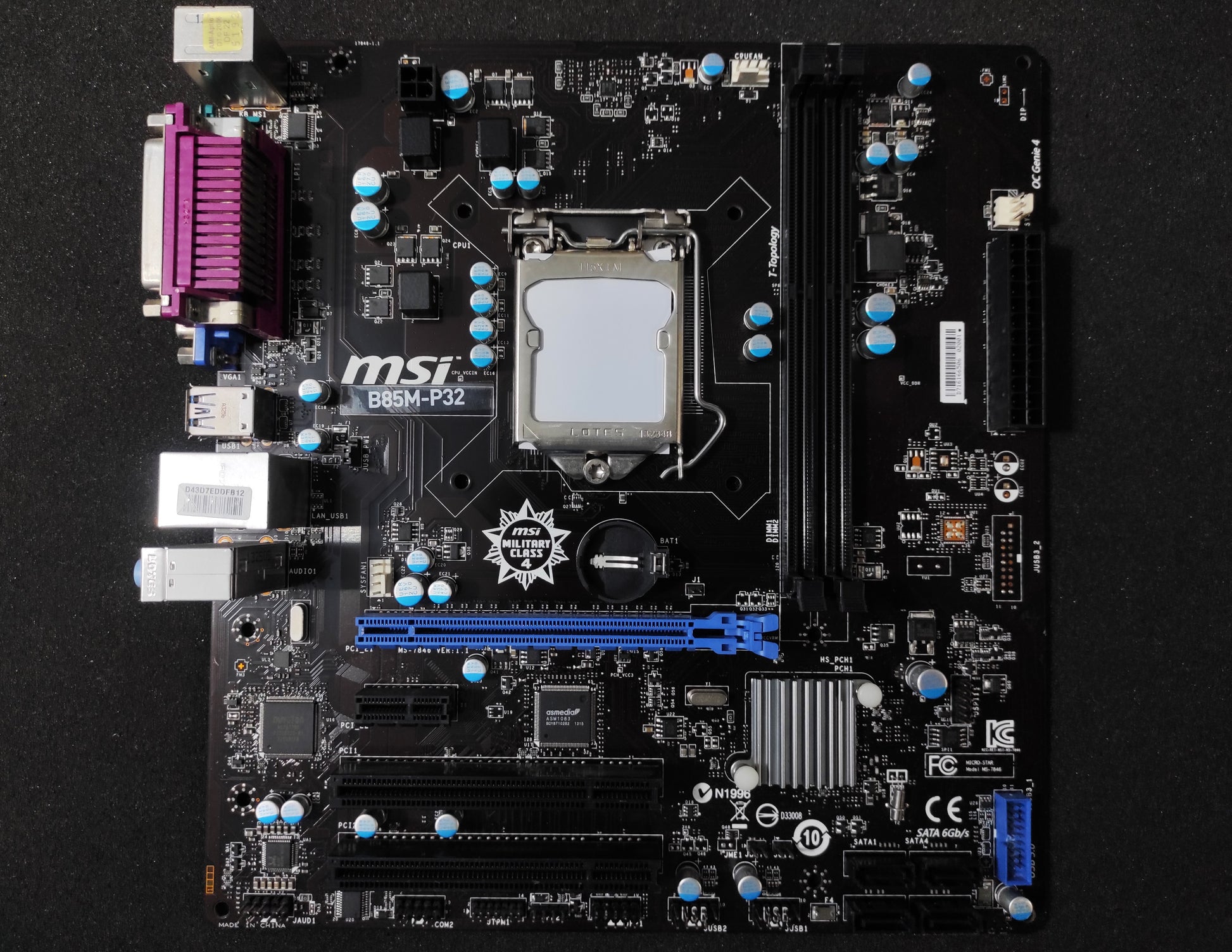

MSI B85M-P32 Socket 1150 DDR3 mATX Motherboard Intel B85 Express Chipset

MSI B85M-P32 Socket 1150 DDR3 mATX Motherboard Intel B85 Express Chipset

€34,90 EUR
€34,90 EUR
Sale Sold out
Taxes included. Shipping calculated at checkout.

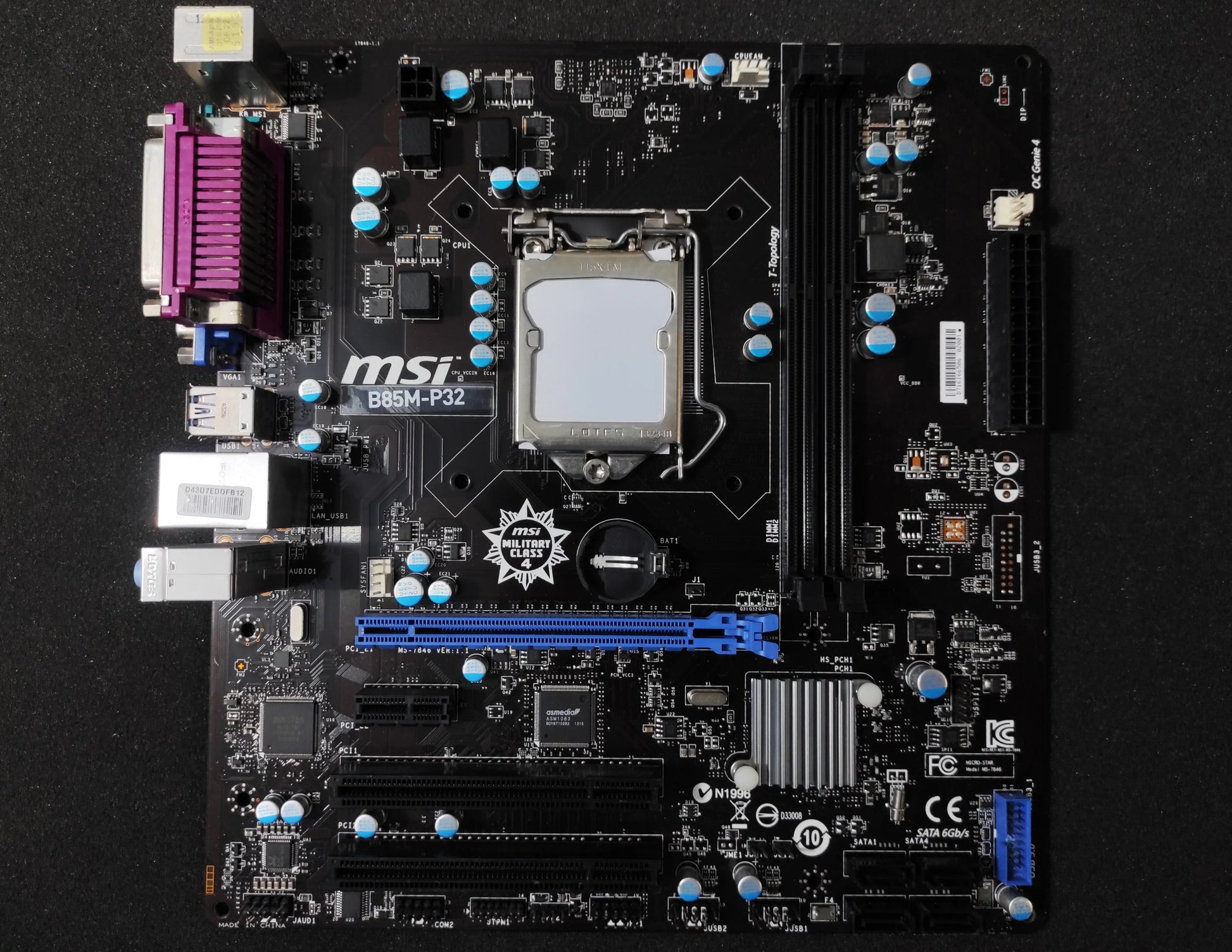

MSI B85M-P32

 Socket 1150 DDR3 mATX Motherboard

Intel B85 Express Chipset

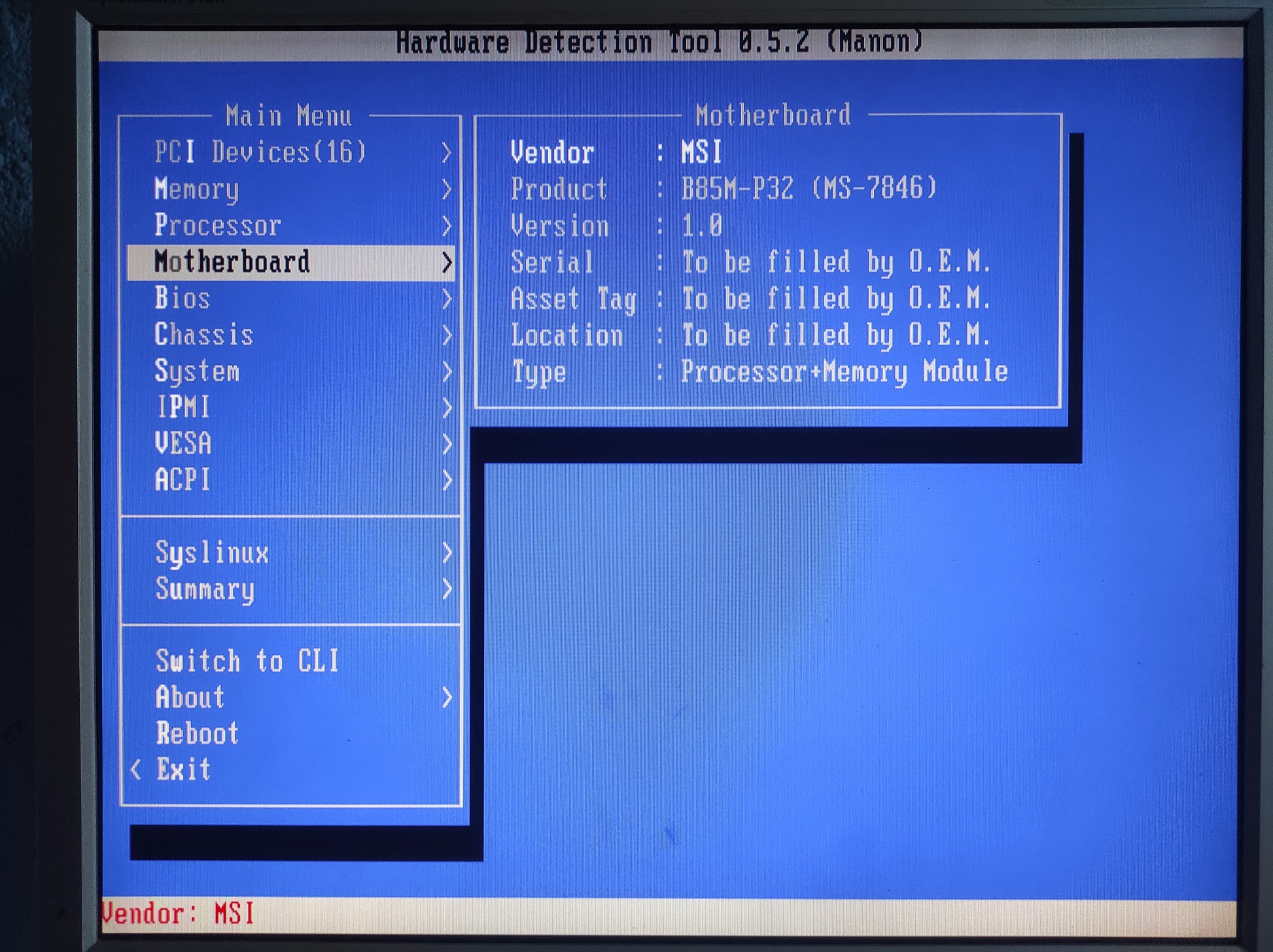

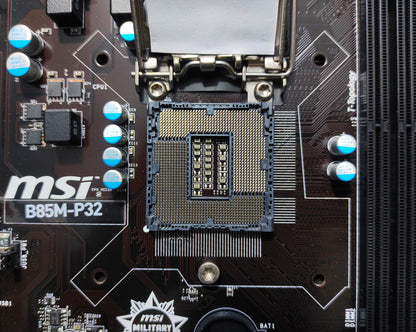

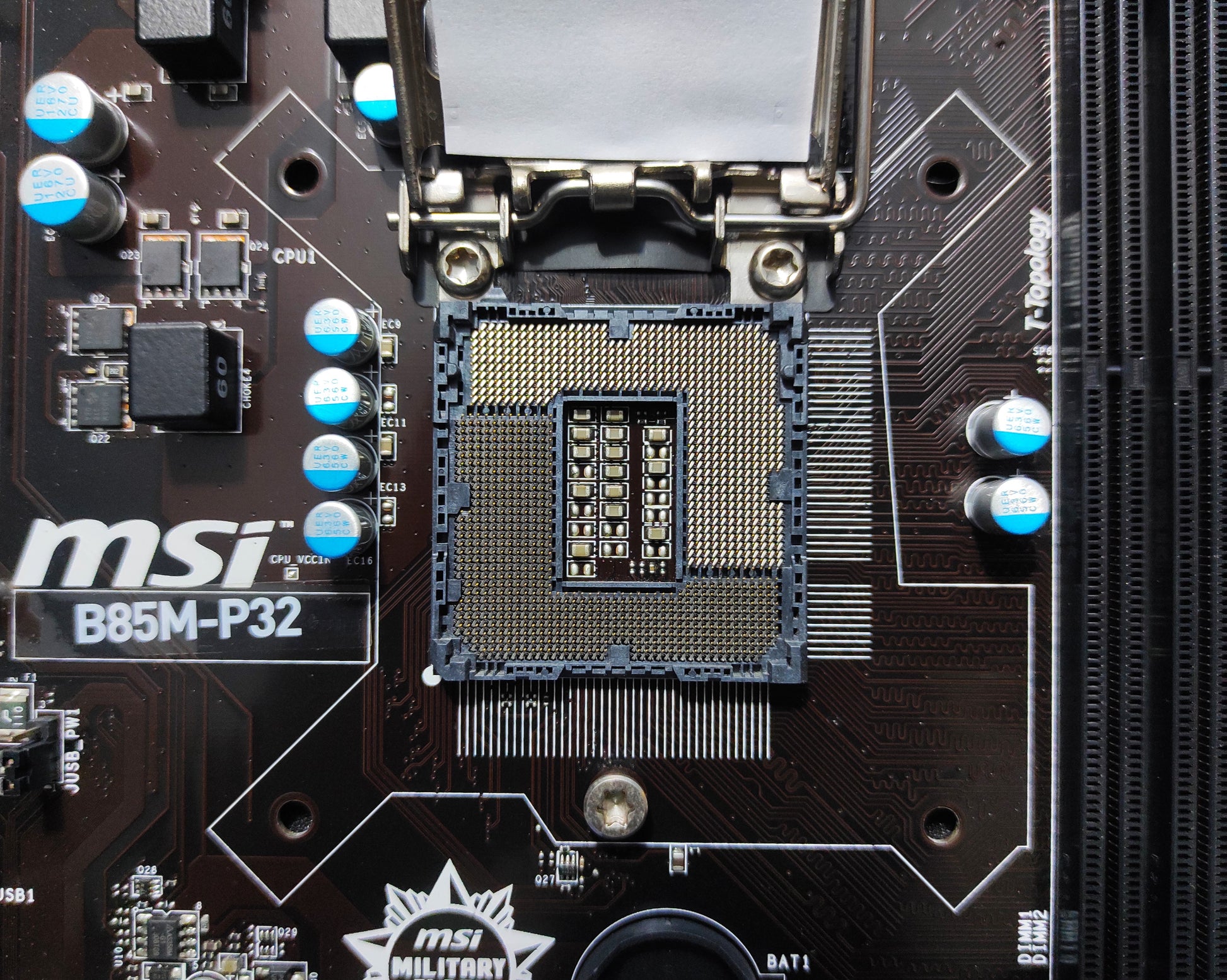

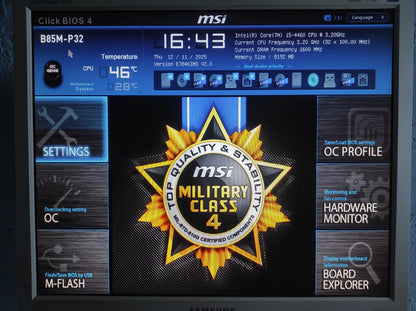

Used Motherboard tested working! In great condition! No bent pins. I/O Shield not included unfortunately.

CPU
• Supports 4th Generation Intel®Core™ i7 / Core™ i5 / Core™ i3 / Pentium®/ Celeron®processors for LGA 1150 socket
Please refer to CPU Support for compatible CPU; the above description is for reference only.

Chipset
• Intel® B85 Express Chipset

Main Memory
• Supports two unbuffered DIMM of 1.5 Volt DDR3 1066/1333/1600 DRAM, 16GB Max
• Supports Dual channel mode

Slots
• 1 x PCIe 3.0 x16 slot
• 1 x PCIe 2.0 x1 slot
• 2 x PCI slots

On-Board SATA
•SATAIII controller integrated in Intel®B85 chipset
- Up to 6Gb/s transfer speed.
- Supports two SATAIII port (SATA1~2) by B85
•SATAII controller integrated in Intel® B85 chipset
- Up to 3Gb/s transfer speed.
- Supports two SATAII ports (SATA3~4) by B85

USB
• 4 x USB 3.0 ports (2 ports on the back panel, 2 ports available through the internal USB connectors)
• 6 x USB 2.0 ports (2 ports on the back panel, 4 ports available through the internal USB connectors)

Audio
• Chipset integrated by Realtek®ALC887
- Flexible 8-channel audio with jack sensing
- Compliant with Azalia 1.0 Spec

LAN
• Supports one PCI Express LAN 10/100/1000 Fast Ethernet by Realtek®8111E

Internal I/O Connectors
- 1 x ATX 24-Pin power connector
- 1 x 4-pin ATX 12V power connector
- 1 x Clear CMOS jumper
- 4 x SATA connectors
- 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
- 1 x USB 3.0 connector (supports additional 2 USB 3.0 ports)
- 1 x 4-pin CPU fan connector
- 1 x 4-pin system fan connector
- 1 x 3-pin system fan connector
- 1 x Serial port connector
- 1 x Trusted Platform Module (TPM) header
- 2 x system panel connectors
- 1 x Front Panel Audio connector
- 1 x Chassis Intrusion connector
- 2 x USB power jumpers

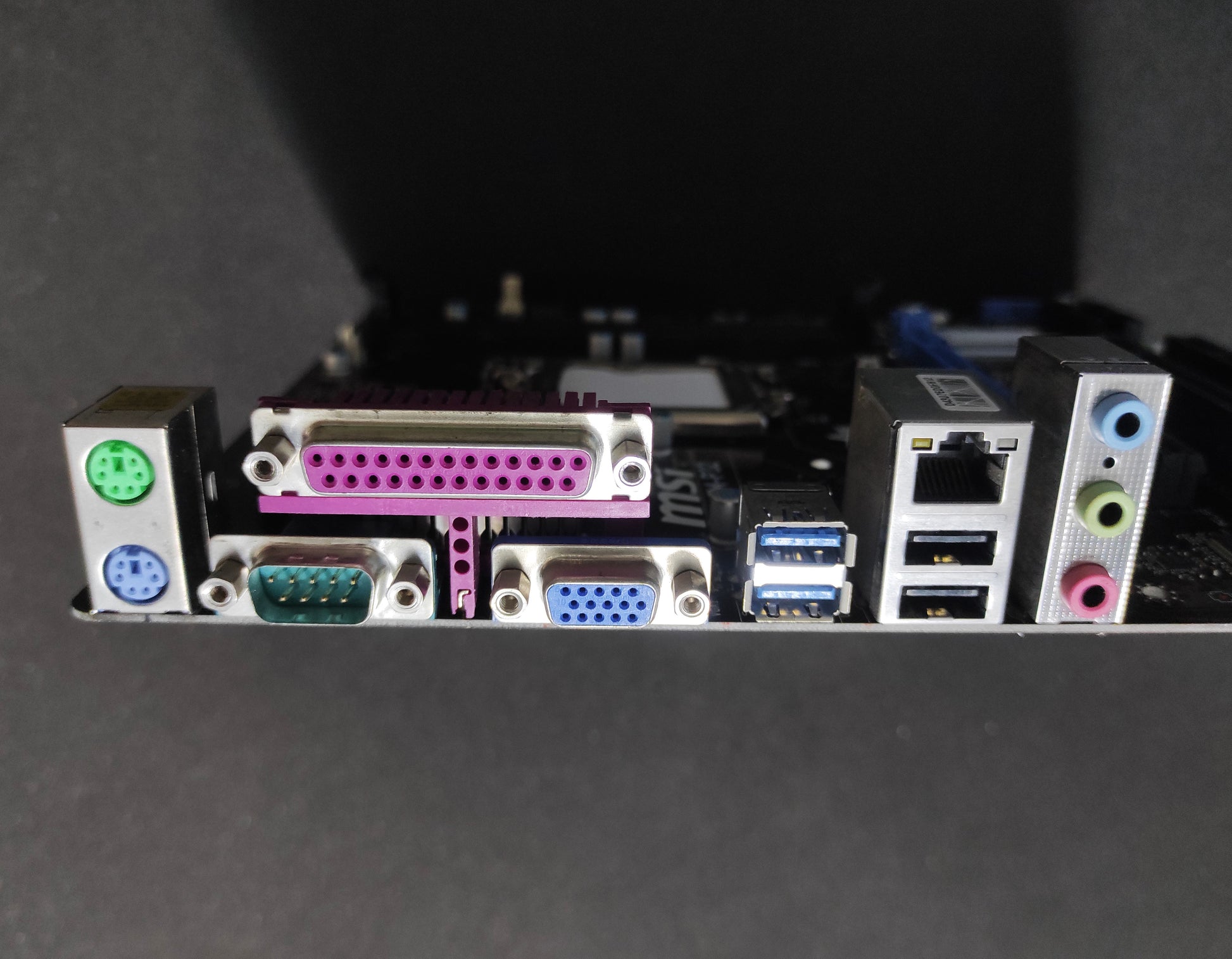

Back Panel I/O Ports
- 1 x PS/2 keyboard port
- 1 x PS/2 mouse port
- 2 x USB 2.0 ports
- 2 x USB 3.0 ports
- 1 x Serial port
- 1 x Parallel port
- 1 x RJ45 LAN Jack
- 1 x 3 in 1 audio jack
- 1 x Graphics port with max. resolution up to 1920x1200 @ 60Hz

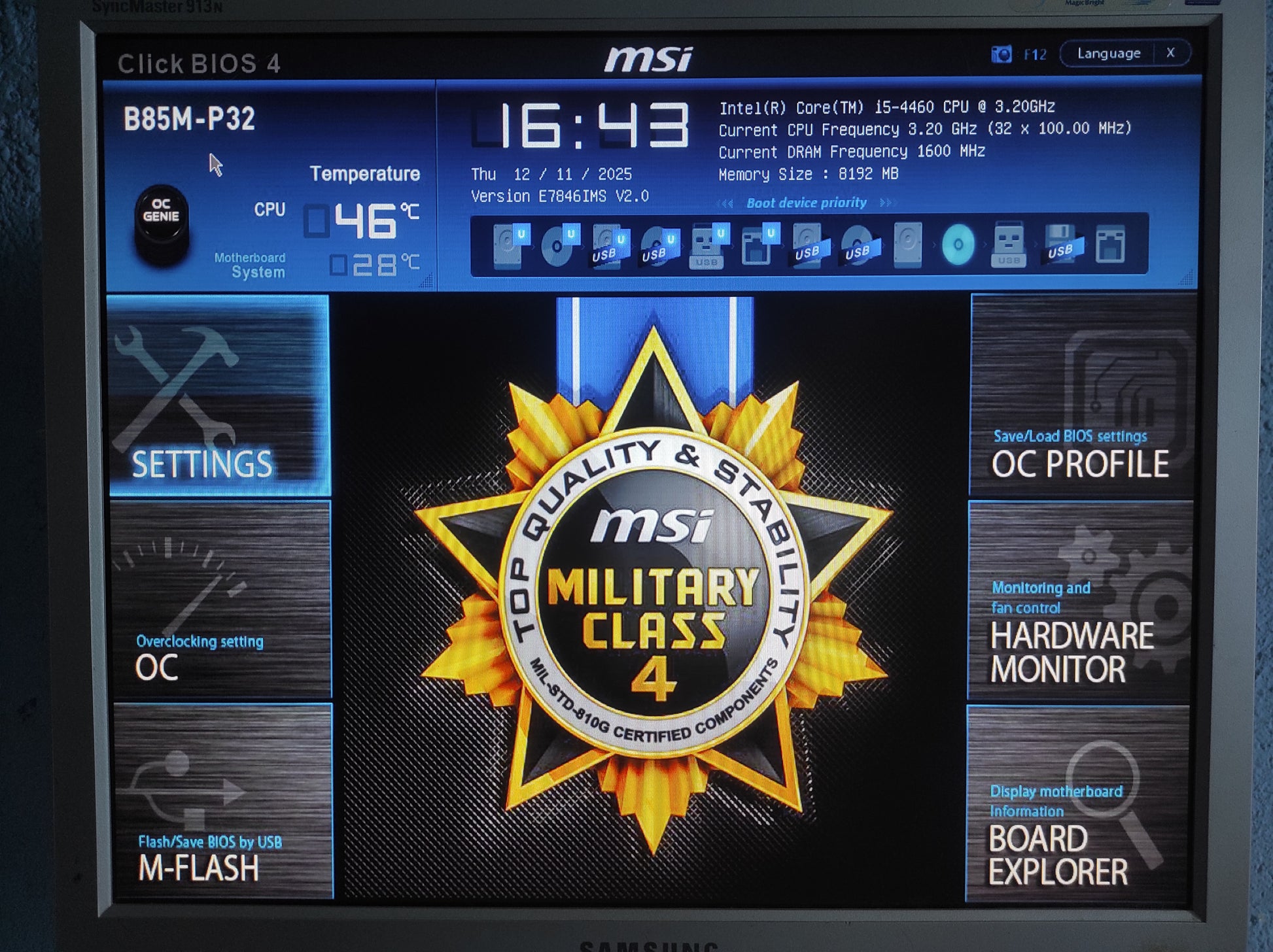

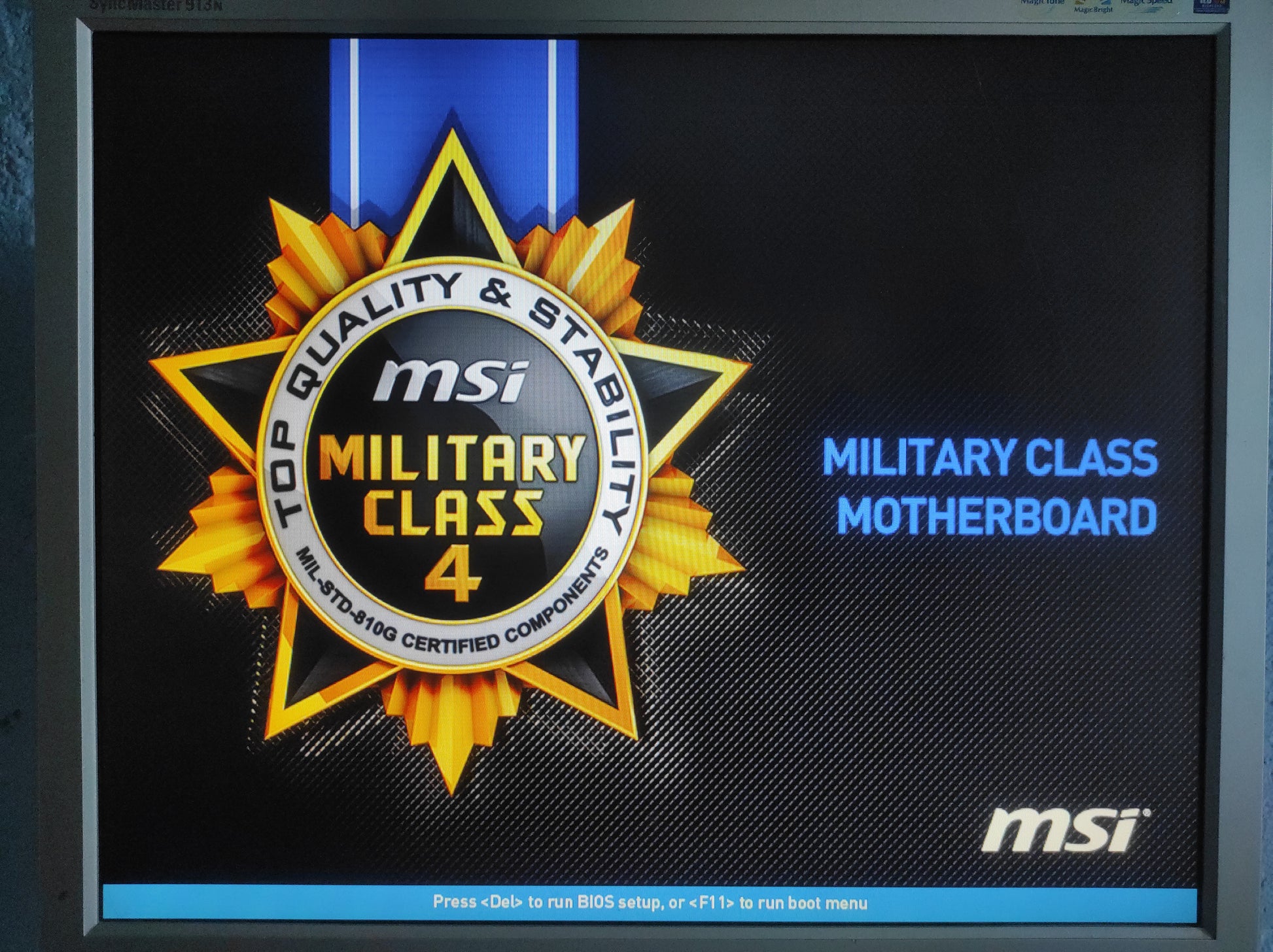

BIOS
• The motherboard BIOS provides "Plug & Play" BIOS which detects the peripheral devices and expansion cards of the board automatically.
• The motherboard provides a Desktop Management Interface(DMI) function which records your motherboard specifications.

Dimension
• 24.3cm(L) x 22.8cm(W) MIicro-ATX Form Factor

Mounting
• 6 mounting holes.
