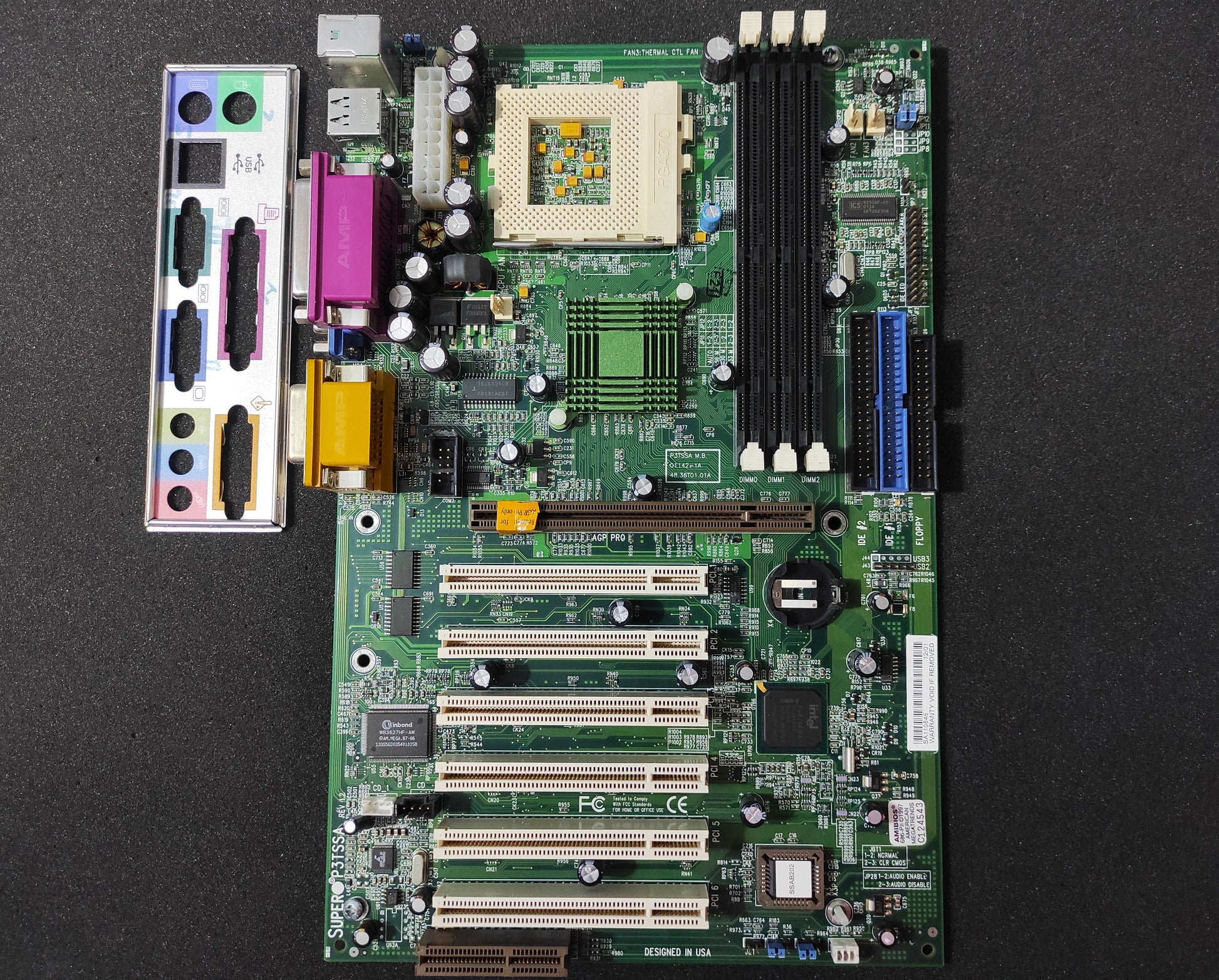

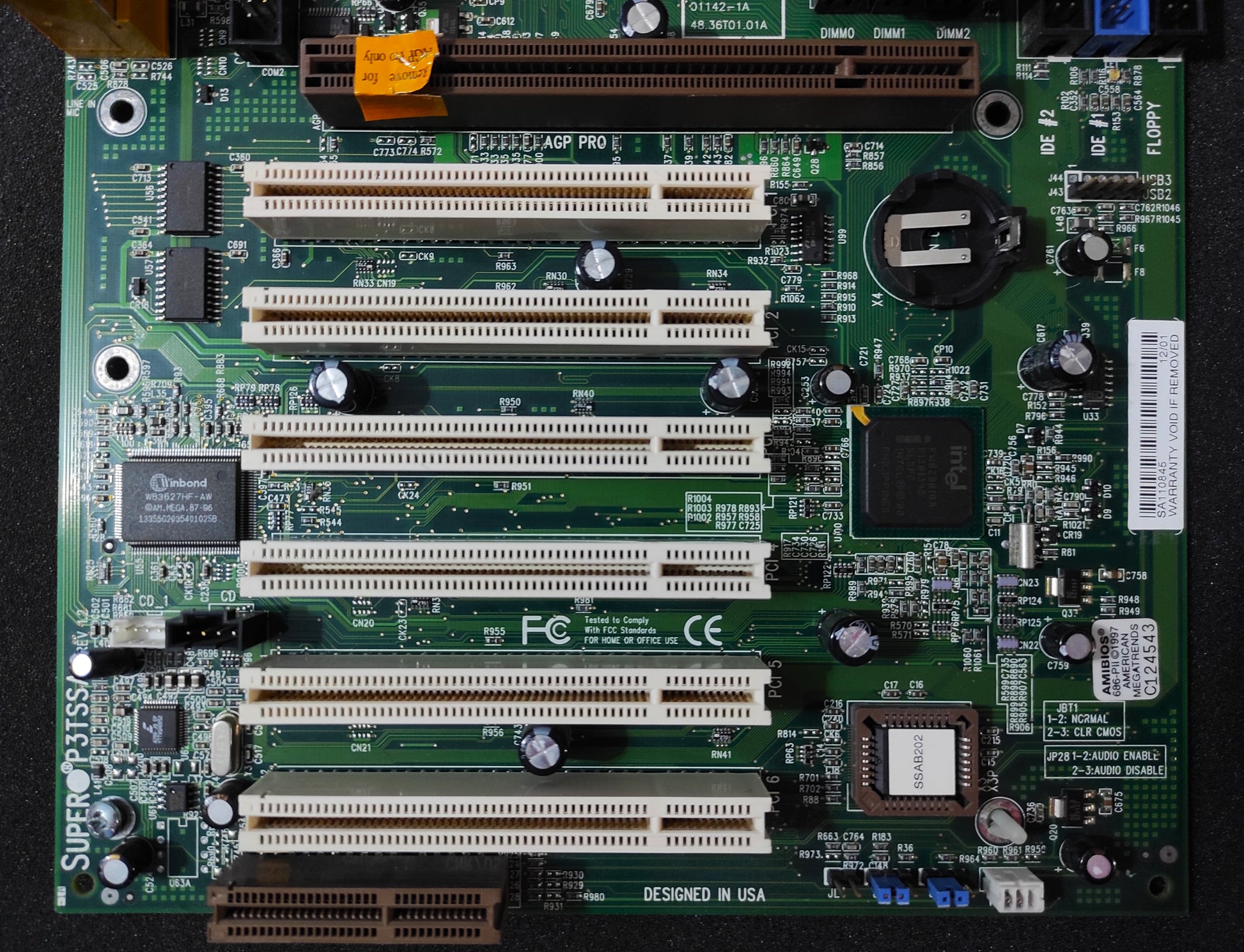

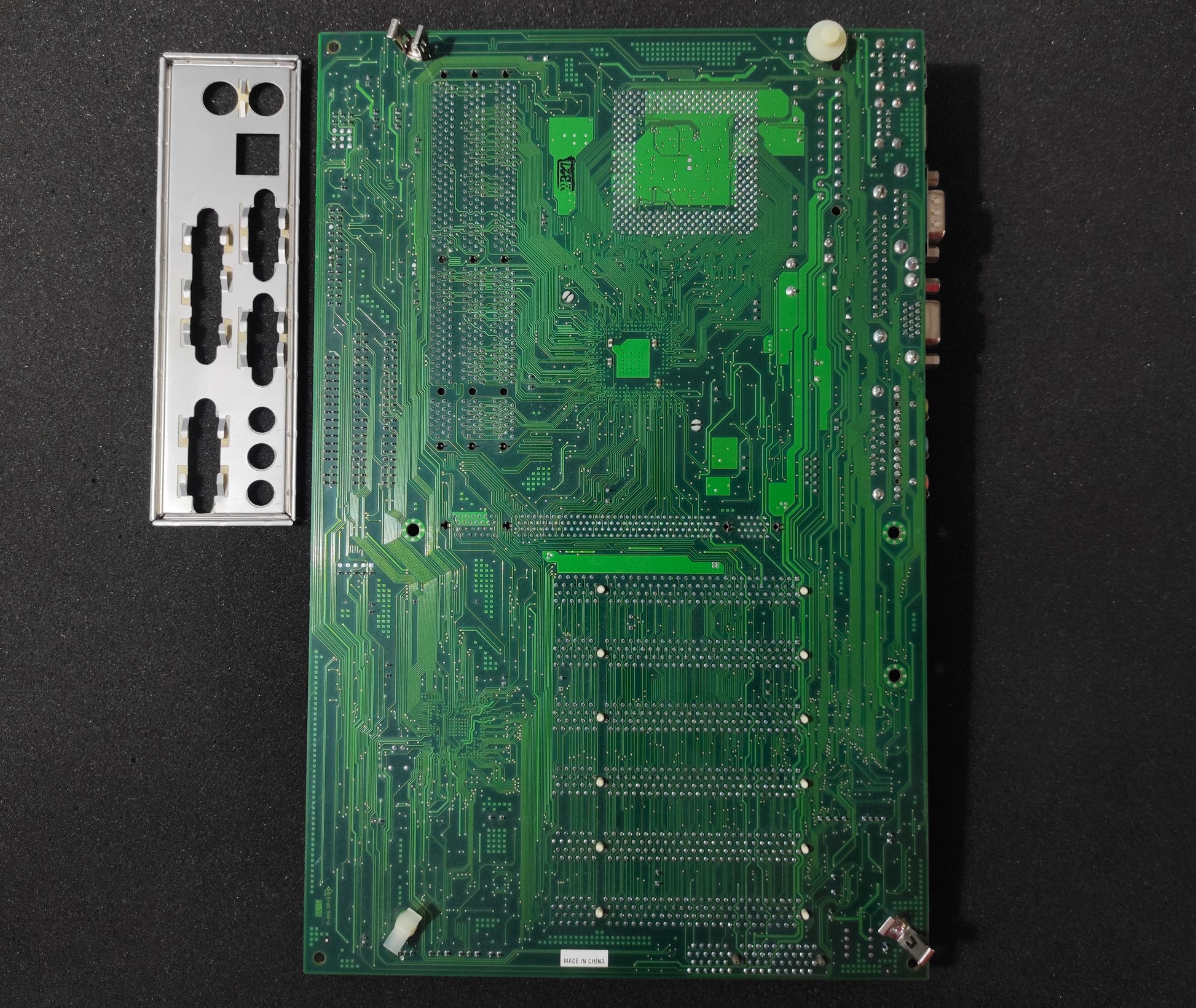

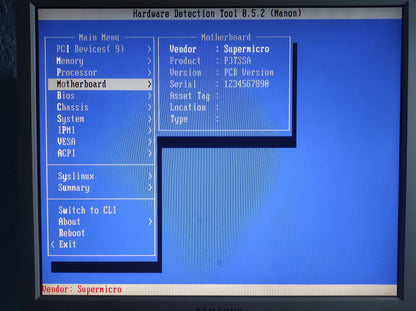

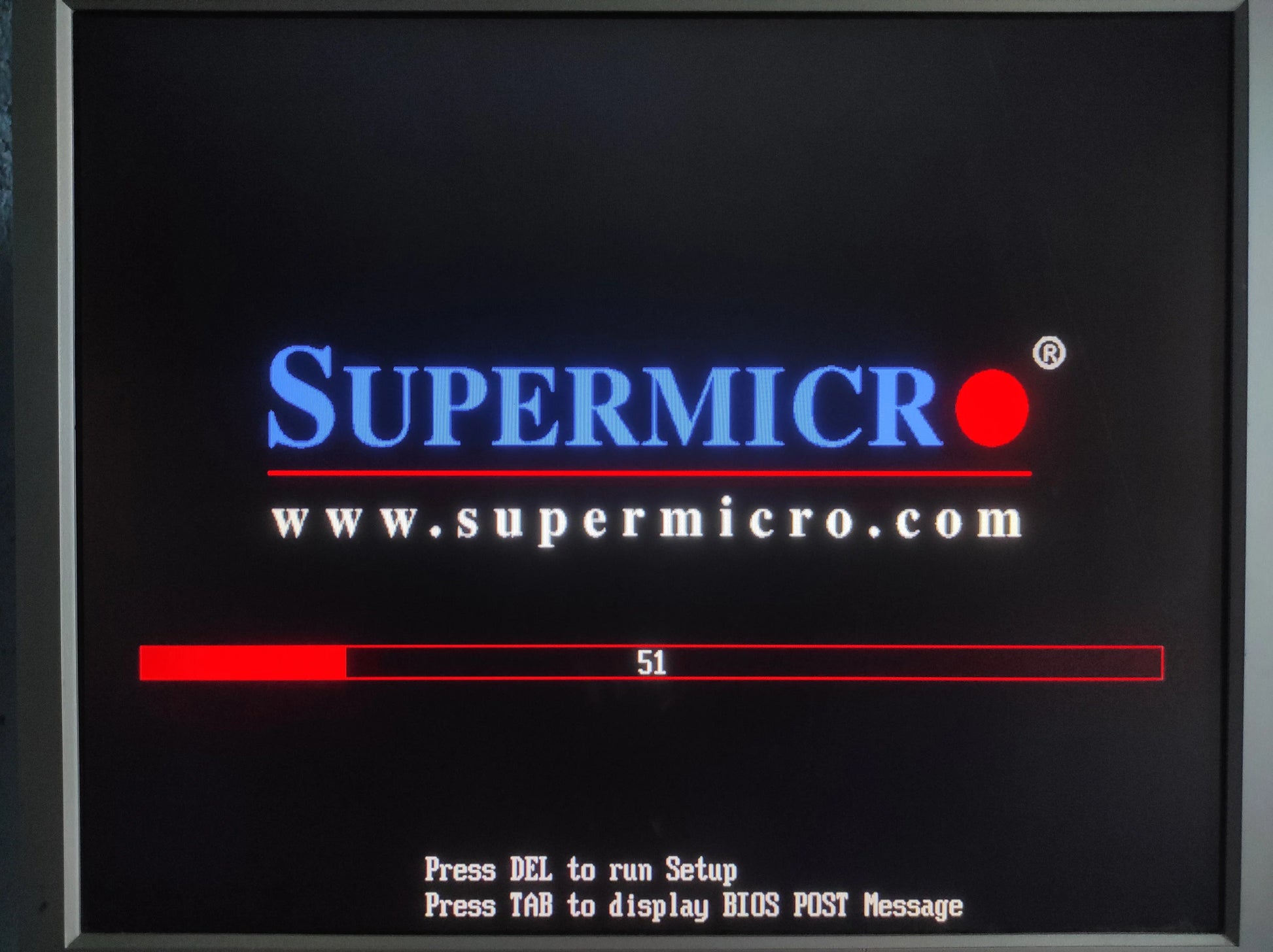

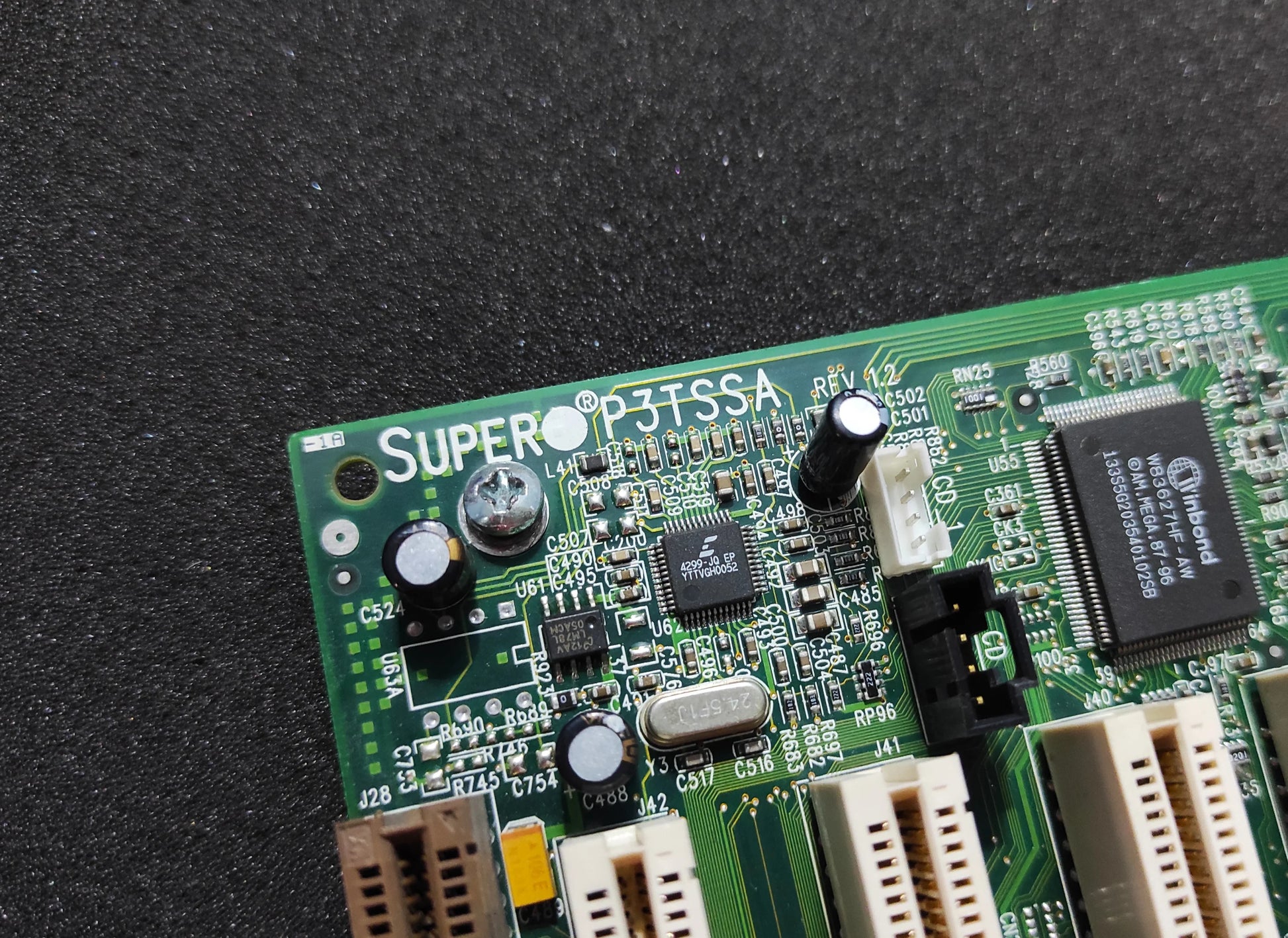

Used motherboard, tested working. In clean, excellent condition!! Check out the pics! I/O Shield included. This model needs a strong +5V rail on the PSU to boot. Will also not boot with a low charge battery.
Motherboard Features straight out of the manual:

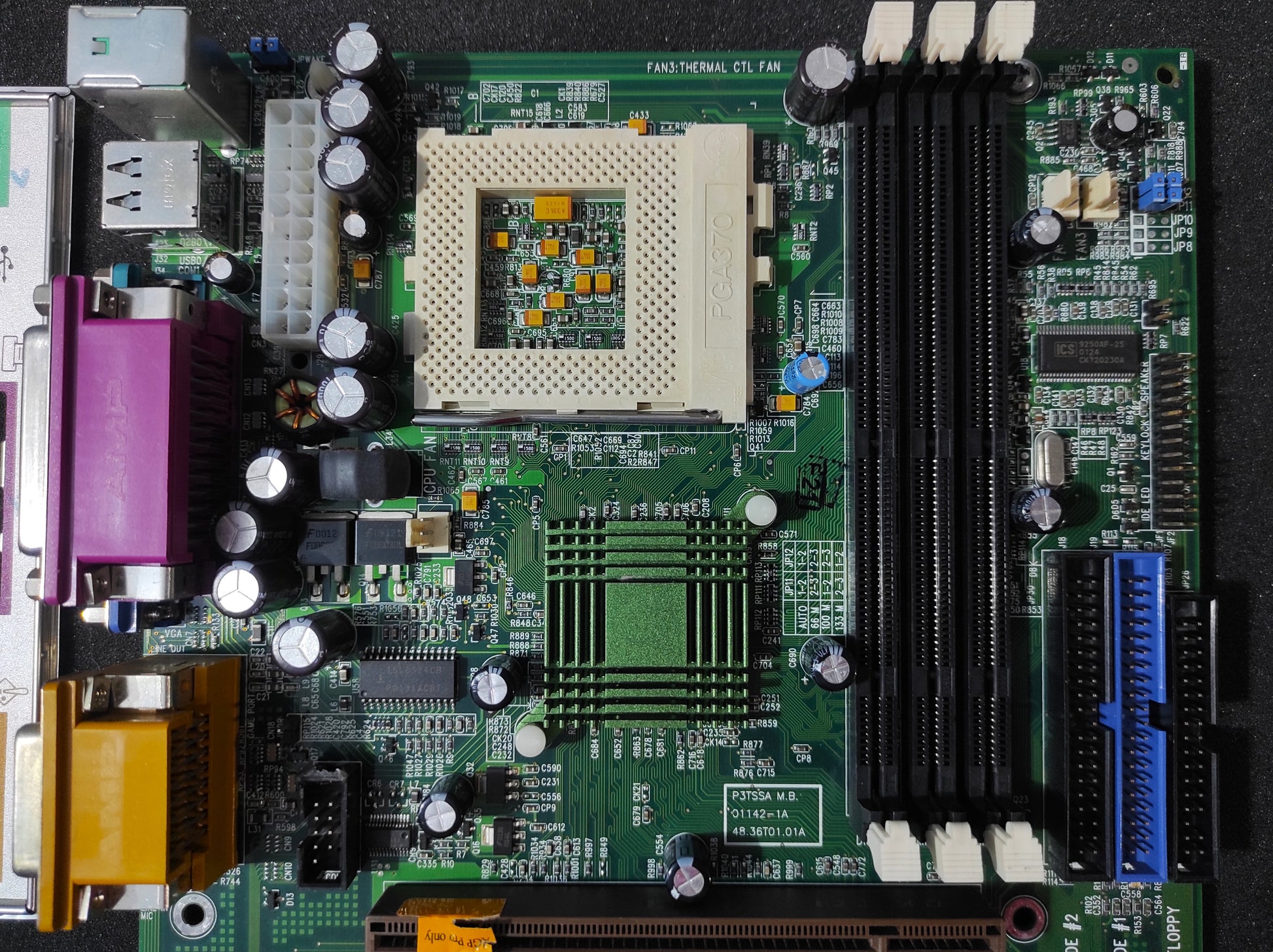

CPU
• Single Pentium® III 500 MHz - 1.4 GHz processors at front bus speeds
of 133/100 MHz, and single FCPGA and FCPGA2 Celeron processors at
100/66 MHz front side bus speeds
Memory
• Three 168-pin DIMM sockets to support up to 512 MB unbuffered
SDRAM. PC133 and PC100 SDRAM are fully supported.
Chipset
• Intel 815E B-Step
Expansion Slots
P3TSSA
• 6 32-bit PCI
• 1 4xAGP Pro
• 1 CNR

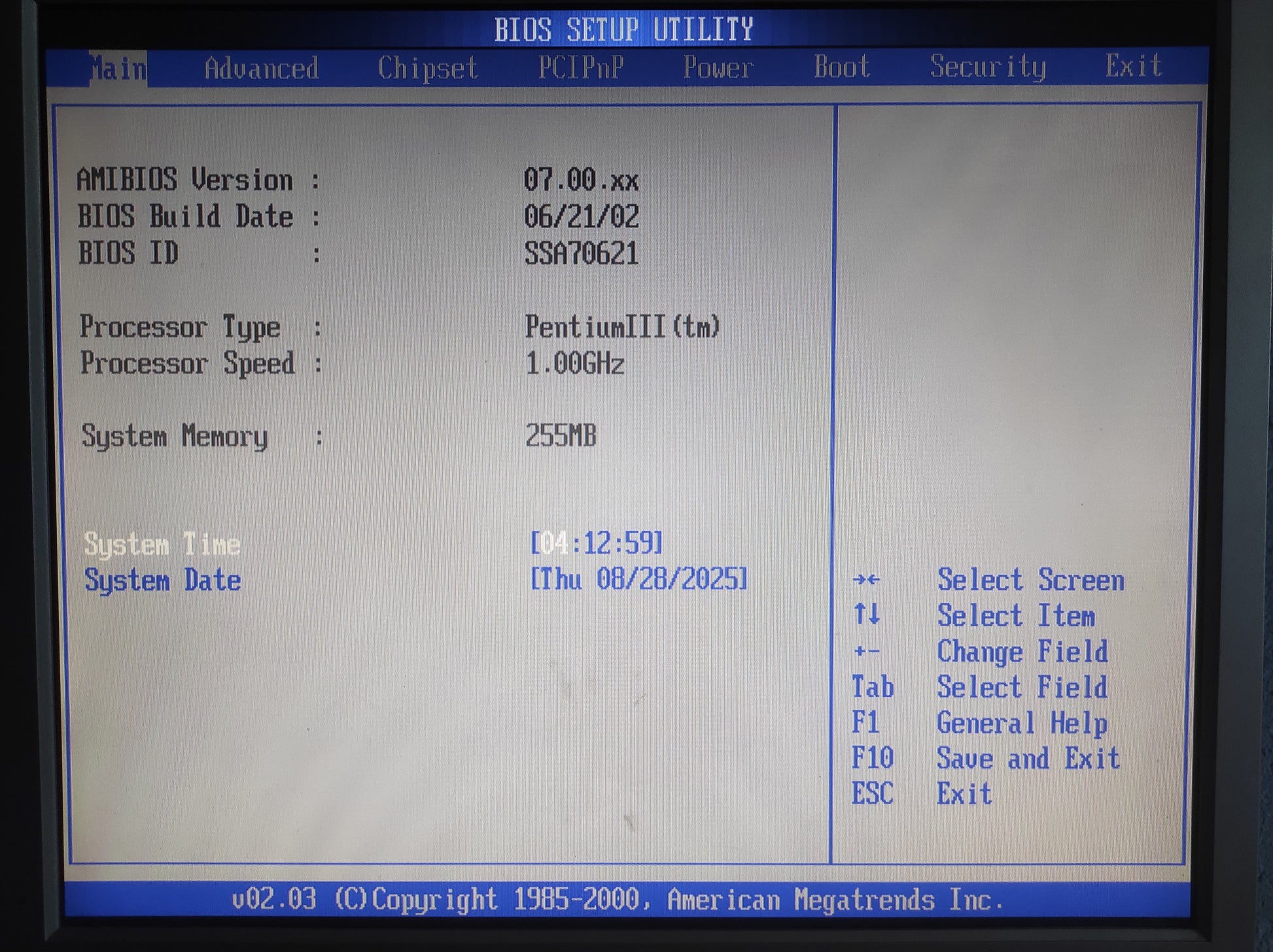

BIOS
• 4 Mb Firmware Hub AMI® Flash BIOS
• APM 1.2, DMI 2.3, PCI 2.2, ACPI 1.0, Plug and Play (PnP)
PC Health Monitoring
• Six onboard voltage monitors for CPU core, chipset voltage, +3.3v, +5v
and ±12v
• Three-fan status monitor with firmware/software on/off control
• Environmental temperature monitor and control
• CPU fan auto-off in sleep mode
• Power-up mode control for recovery from AC power loss
• System overheat LED and control
• System resource alert
• Hardware BIOS virus protection
• Auto-switching voltage regulator for the CPU core
ACPI/PC 98 Features
• Microsoft® OnNow
• Slow blinking LED for suspend state indicator
• BIOS support for USB keyboard
• Real-time clock wake-up alarm
• Main switch override mechanism
• External modem ring-on

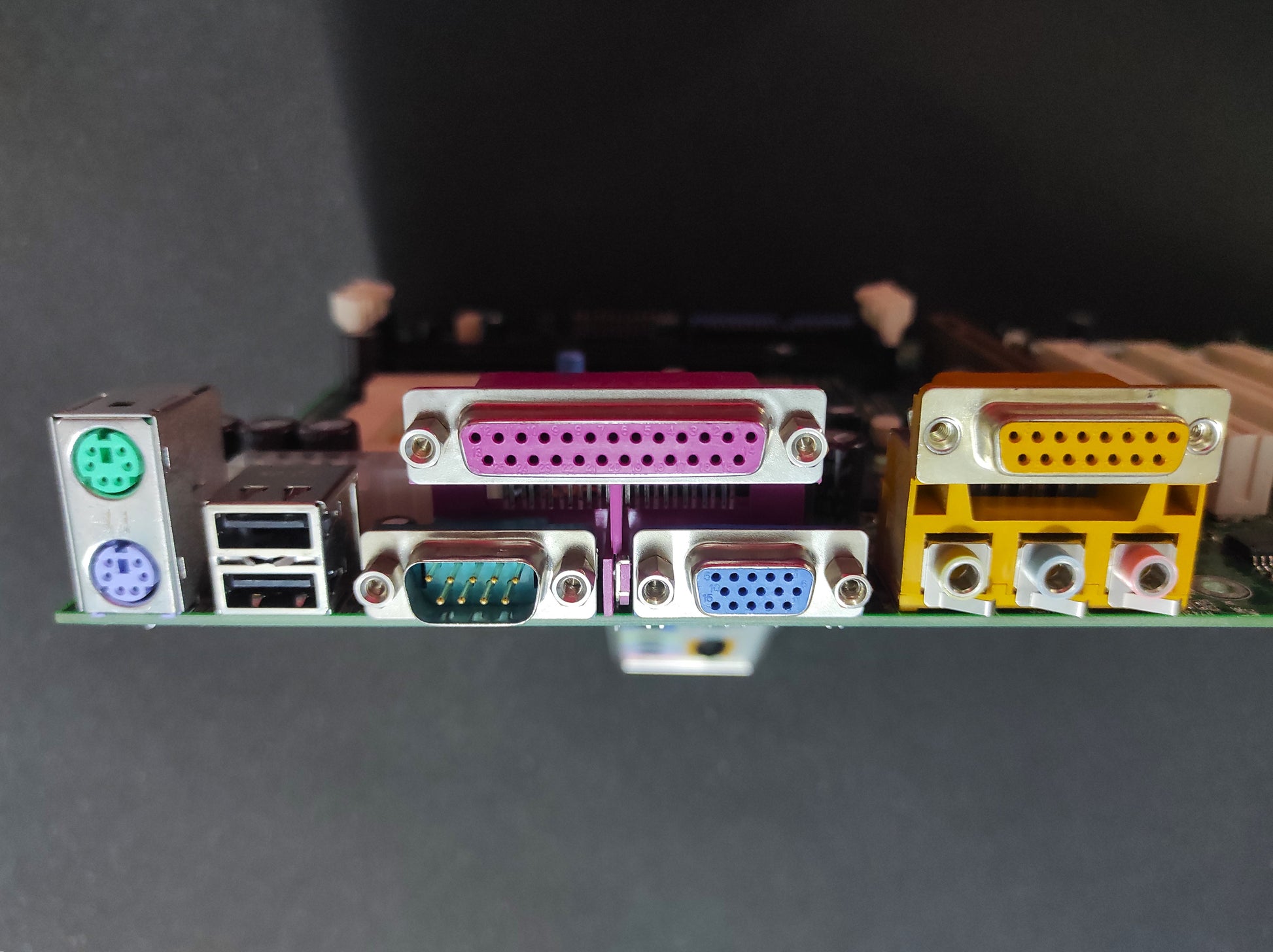

Onboard I/O
• 2 EIDE bus master interfaces support UDMA/100
• 1 floppy port interface (up to 2.88 MB)
• 2 Fast UART 16550A compatible serial ports
• 1 EPP/ECP (Enhanced Parallel Port/Extended Capabilities Port)
• 1 (each) PS/2 mouse and PS/2 keyboard ports
• 1 infrared port
• up to 3 USB Ports on P3TSSA)
Other
• Selectable CPU and chassis fan speed control (set in BIOS)
• Internal/external modem ring-on
• Recovery from AC power loss control
• Wake-on-LAN (WOL)
• Multiple FSB clock frequency selections (set in BIOS)
• Direct AGP with optional AIMM 4 MB display cache
Dimensions
• P3TSSA: ATX 12" x 7.8" (305 x 198 mm)
